Dear Customer; Thank you for choosing GROUNDTECH products.. It is
recommended that you read this user manual carefully to understand how the products
work and then try to gain experience. This is a scientific and electronic device and all
instructions in the user manual must be followed.
We wish you success in your work.
ATTENTION ! MUST READ BEFORE USING THE PRODUCTS.
The information in this user manual is subject to change without notice.
Reproduction, distribution and copying of this user guide unauthorized by the Groundtech
Detectors is strictly prohibited.
General Information
GROUNDTECH products should be used with caution as one do with electronic devices.
Search coils and main unit should be used with caution; they should be protected against
impacts and hard objects and refrained from applying excessive force.
Injury
GROUNDTECH products do not cause injury or health problems when used normally.
GROUNDTECH products usually do not pose a threat to the human body. It should be kept
away from children as one would do with electronic devices. Be careful to take all
precautions against any kind of risk.
Before starting to search, make sure that the main unit battery is fully charged. Inadequate
battery level may cause you to be in the wrong.
Repair
Any repairs resulting from technical malfunctions for a period of two (2) years from the date
you purchased the product are free. Contact your dealer for product service or inquiries.
The unit is inspected by a qualified technician and repaired if necessary. After two years, all
repairs are charged.
If you damage the product or open the main unit, the warranty will lose its validity.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Evo and is the answer not in the manual?

Questions and answers

Related Manuals for GROUNDTECH Evo

Summary of Contents for GROUNDTECH Evo

  • Page 1 GROUNDTECH products do not cause injury or health problems when used normally. GROUNDTECH products usually do not pose a threat to the human body. It should be kept away from children as one would do with electronic devices. Be careful to take all precautions against any kind of risk.

  • Page 2: Controlling Components

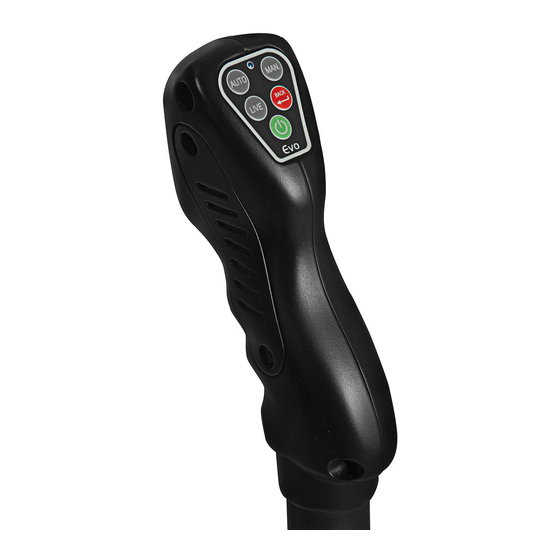

    1 - CONTROLLING COMPONENTS Automatic, manual and live search buttons are available for general controls on the product main body. You can use the Auto, manual, live buttons to select the search mode. On/Off – It allows you to switch the device on and off. Auto –...
