PairGain Wideband System 3190 Installation Manual

Figures 1 and 2 show a standard DS3 (network side) to HDSL (field side) operation. This is the factory default
configuration. There is no need to remove the rear cover for the factory default configuration.
Factory Default Configuration
Network side DS3 IN (J8) and DS3 OUT (J10)
Field side HDSL Loop 1 (J3) and HDSL Loop 2 (J4)
NETWORK SIDE

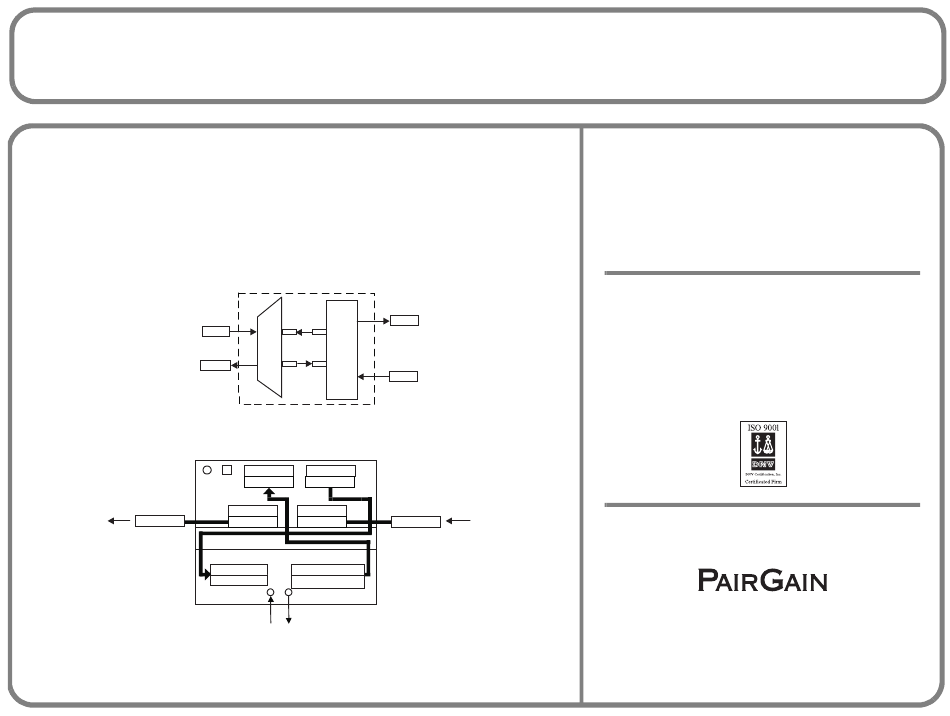

Figure 1. DS3 to HDSL Distribution Schematic
J32 J34
Loop 1
(a)
XMT to Span
J3
Figure 2. DS3 to HDSL Distribution Configuration (HMS-357 Back Panel View)
(a)
PairGain offers an optional 50-foot, 32-pair shielded cable (P/N 150-2218-01) that can be connected between the
HMS-357 and the network and field cross-connects.
Addendum to Wideband System 3190 Installation Guide
DS3 and DSX-1 Configurations for HMS-357 List 1 and List 2
HMS-357 List 1 and List 2
(XMT to SPAN)
P1
J8
DS3 3190
MUX DSX-1
J10
P2
(RCV from Span)
HMS-357 List 1 and List 2
P2 P1
J2 J1
RCV from Span
P3 P4
J3 J4
MUX
RCV to DSX
XMT from DSX
RCV to DSX
XMT from DSX
IN OUT
(J8) (J10)
DS3
Loop 1
J3
FIELD SIDE
J4
Loop 2
Loop 2
(a)
J4
PairGain Technologies, Inc.
HiGain Wideband System 3190
HMS-357 List 1 and List 2
Part Number: 150-2205-01 and 150-2205-02
CLEI Code: T3M1FH0 and T3M1GH0
Section Number: 180-357-200-01
July 30, 1999
