Turnstiles PY300DC User Manual

Sliding gate opener

Advertisement

Quick Links

PY300DC
Sliding Gate Opener
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PY300DC and is the answer not in the manual?

Questions and answers

Summary of Contents for Turnstiles PY300DC

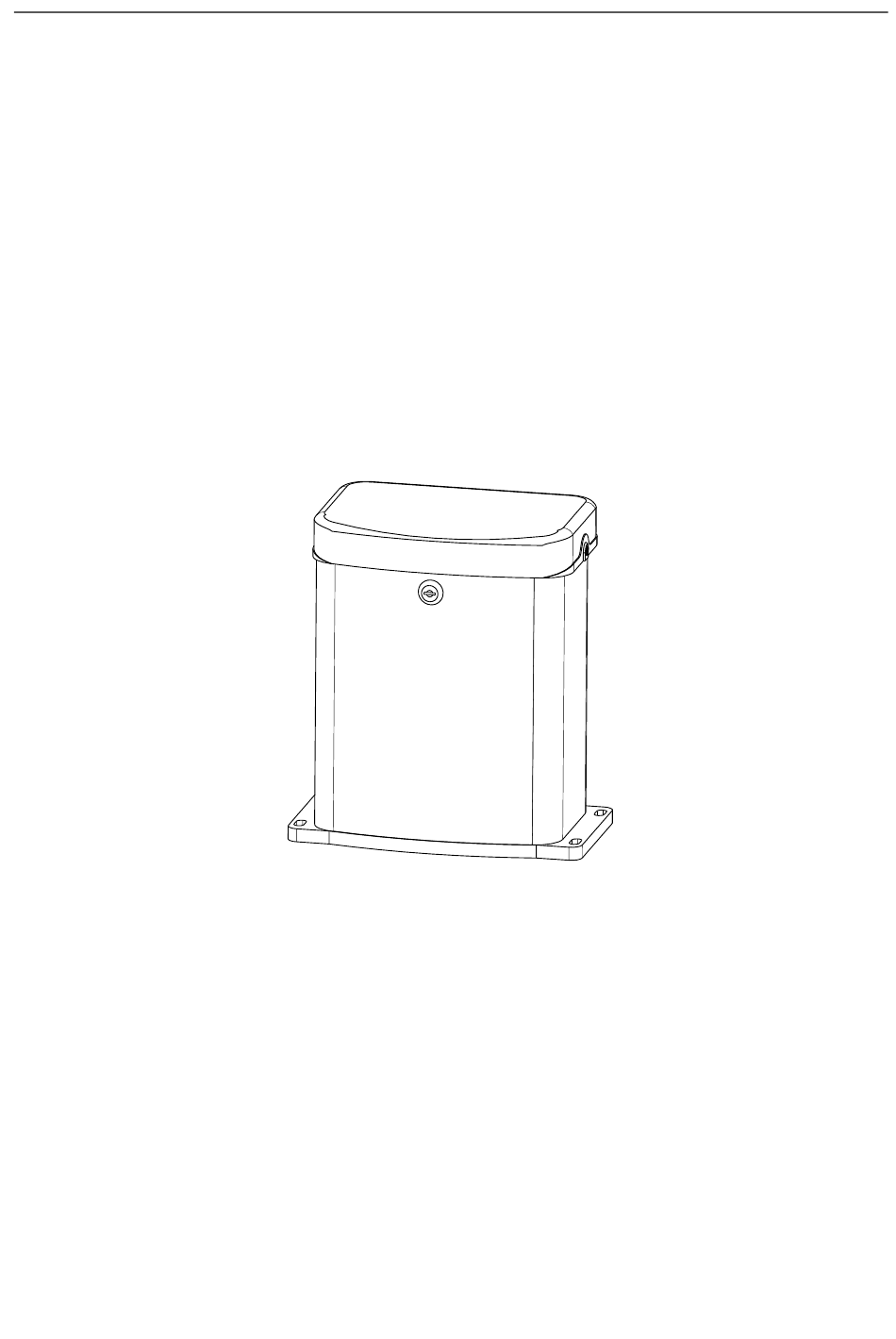

  • Page 1 PY300DC Sliding Gate Opener User Manual...
  • Page 2: Safety Instruction

    Dear users, Thank you for choosing this product. Please read this manual carefully before installation and use. Please do not forget to include this manual if you send the product to a third party. 1. Safety Instruction Please make sure that the power voltage being used matches with the supply voltage of gate opener (AC110V or AC220V);...
  • Page 3 2. Packing List (standard) Picture Name Quantity Main engine Manual release key Remote control Accessories box Manual release bar Foundation bolt M8 Nut M8 Flat washer Ø8 Spring washer Ø8...
  • Page 4: Technical Parameters

    Name Quantity Steel gear rack 1m/pc Nylon gear rack 1m/pc Infrared sensor Wireless keypad Alarm lamp Mounting plate 3. Technical parameters PY300DC Model Power supply 220V/50Hz;110V/60Hz Motor power 100W Gate Moving speed 13m/min Maximum weight of gate 300Kg ≥30m Remote control distance...
  • Page 5: Installation

    11.32Kg 4. Installation PY300DC sliding gate opener is applicable to gate weight less than 300kg, and length of the sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
  • Page 6 Please precast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in Please make sure the distance advance, so as to firmly install PY300DC gate opener. between the gate and gate opener is appropriate before casting the pedestal.
  • Page 7 Embedded screws Mounting plate Foundation bolt Concrete Power line Figure 4 4.3.2 Main engine installation a) Dismantle the plastic housing on the main engine before installation and keep relevant fasteners properly; b) Please prepare the power line for connecting the mounting plate to the main engine (the number of power supply cable cores should not be less than 3 PCS, the sectional area of cable core should be over 1.5mm²...
  • Page 8 whether there is a fit clearance between rack and output gear, as shown in Figure 7.  Weld all the mounting screws to the gate firmly.  Make sure that all racks on the same straight line.  Pull the gate after installed, make sure the entire trip is flexible without any stuck. Figure 6 The fit clearance of output gear and rack is shown in Figure 7 below: Gear...
  • Page 9 4.3.4 Control board wiring 24VDC 24VDC motor motor Hall Hall line line 24VAC 24VAC + SOLAR SOLAR BAT BAT -+ RECHG RECHG BAT BAT - JXPYM01AA JXPYM01AA 2009.07.10 2009.07.10 OPEN OPEN Alarm Alarm lamp lamp CODE CODE Infrared Infrared sensor sensor 24VDC 24VDC...
  • Page 10 Control board wiring instruction: 24VDC motor: black wire to “T1”, red wire to “T2”. If the gate opening direction is wrong, please exchange T1 and T2. J1: Transformer secondary (AC24V / 3.3A); J2: Singe button (OSC and COM); Three button (OPEN, CLOSE, STOP, COM); J3: Infrared sensor (PE and COM);...
  • Page 11 OPEN OPEN OPEN OPEN OPEN OPEN CODE CODE CODE CODE CODE CODE CLOSE CLOSE CLOSE CLOSE CLOSE CLOSE Figure 11 Set obstruction force: If the door meets an obstruction during closing, it will stop and reverse about 15cm~20cm. 1. Press and hold SET. The LED will display number from “1” to “4”, when the number “3” appears on the LED display, release the SET.
  • Page 12 Infrared photocell function: In the closing process, when infrared ray of the photocell is covered by people or objects during its detection range, the gate will open immediately for security protection. The distance between photocell receiver and photocell emitter should be more than 2 meters, otherwise will affect the induction of the photocell.
  • Page 13 OPEN OPEN CODE CODE CLOSE CLOSE OPEN OPEN OPEN OPEN CODE CODE CODE CODE CLOSE CLOSE CLOSE CLOSE Figure 15 Delete remote control: Press and hold CODE until “C” is indicated on the LED display. This indicates that all remote controls that learned previously have been deleted.
  • Page 14 Storage battery wiring: Storage Storage battery battery + SOLAR SOLAR BAT BAT -+ RECHG RECHG BAT BAT - JXPYM01AA JXPYM01AA 2009.07.10 2009.07.10 Control Control board board Figure 18 Solar panel wiring: Solar Solar charger charger Solar Solar panel panel Storage Storage battery battery CHARGE...
  • Page 15: Troubleshooting

    5. Others 5.1 Maintenance Check whether the gate operates normally every month. For the sake of safety, each gate is suggested to be equipped with infrared protector, and regular inspection is required. Before installation and operation of the gate opener, please read all instructions carefully. Our company reserves the right to change the instruction without prior notice.
  • Page 16: Warranty

    Leakage switch tripped. Power supply line short circuit. Check wiring. Connect external receiver Remote control working Signal is blocked. antenna, 1.5 meters above distance is too short. ground. 1.According to the instruction The gate moves to the 1.Obstruction force is too small. to increase the obstruction middle position to stop 2.Gate meets obstacle.
