www.ergotron.com
USA 1-800-888-8458
Europe +31 (0)33-45 45 600
WARNING: Only Ergotron-specifi ed batteries
may be used in the StyleView Power System.
Please call customer care for details.
Do not replace the batteries while cart is
located in an oxygen rich or hazardous
environment. Sparking may occur.

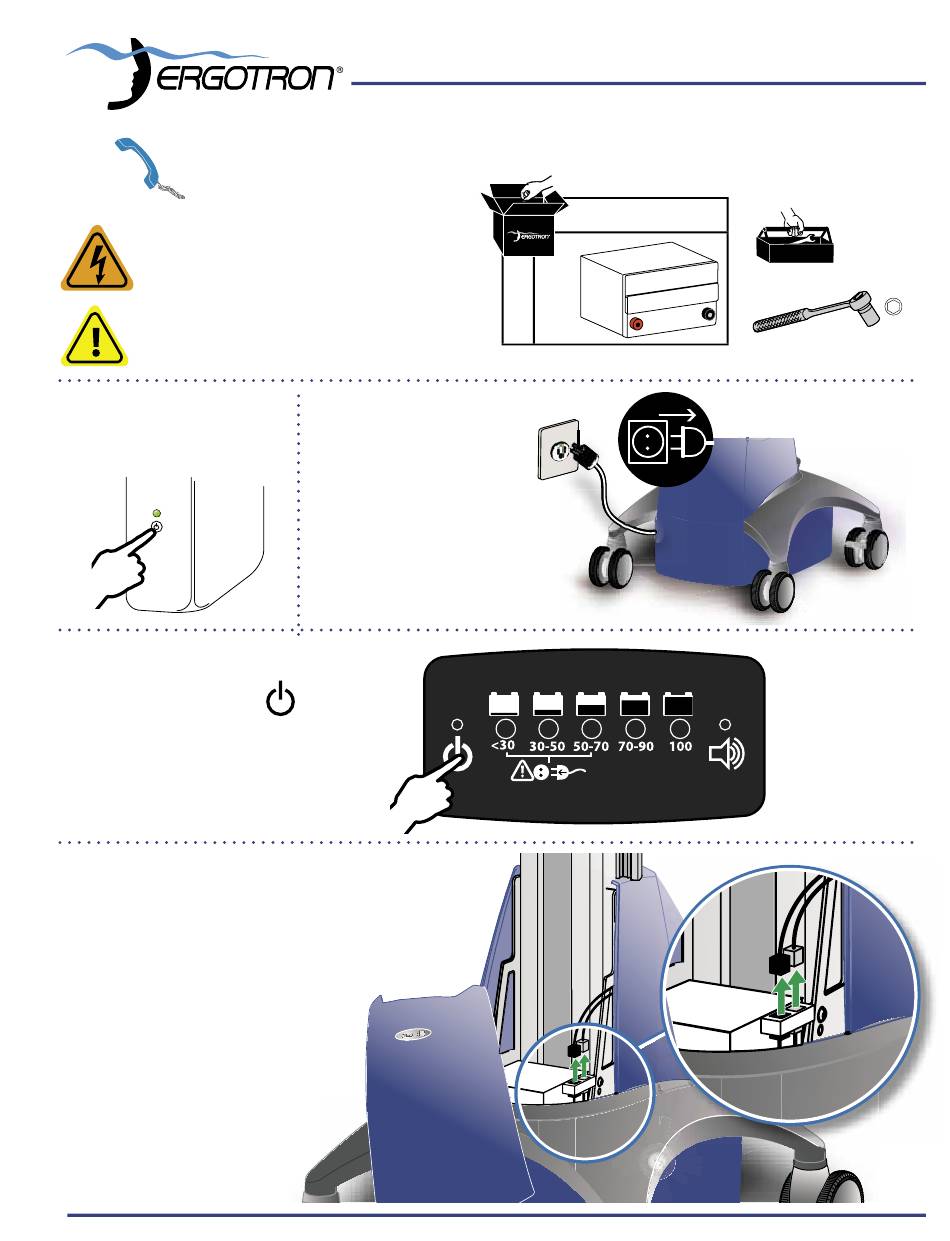

1
a
Turn off all mounted
equipment.
c
Turn power system off by holding
down the standby button
RUI for 1 - 3 seconds.
Power light will shut off.
d
Remove front cover
and disconnect RUI
cables from jacks
located on side of
outlet box.
888-83-018-00 rev. A • 05/ 06
b
Disconnect Power System
from power source.
on the
Assembly Instructions
StyleView
Replacement Battery
A
1
1x
Back View
™
: SV22
10mm
1 of 6
Advertisement
Related Manuals for Ergotron StyleView SV22
Summary of Contents for Ergotron StyleView SV22
- Page 1 Replacement Battery USA 1-800-888-8458 Europe +31 (0)33-45 45 600 WARNING: Only Ergotron-specifi ed batteries may be used in the StyleView Power System. Please call customer care for details. Do not replace the batteries while cart is located in an oxygen rich or hazardous 10mm environment.
- Page 2 Remove battery cover. 1/8" Unplug cord reel for better access. Remove protective boots, Remove Black (negative) lead before removing Red (positive) lead. Be careful terminal bolts and cables. not to contact tools between terminals on battery and metal chassis. 10mm 10mm 2 of 6 888-83-018-00 rev.
-
Page 3: New Battery
Remove old battery. LEAD BATTERY MUST BE RECYCLED Old Battery Place new battery in tray and install new battery. New Battery 3 of 6 888-83-018-00 rev. A • 05/ 06... - Page 4 Connect Red (positive) lead before Reconnect cables with connecting Black (negative) lead. Be terminal bolts and replace careful not to contact tools between protective boots. terminals on battery and metal chassis. Verify proper polarity when attaching cables. Failure to do so will result in blown fuse on battery harness.
-
Page 5: Initial Battery Charge
• Warranty on fully discharged** batteries left in an unused state for more than three (3) consecutive days is automatically void. In order to avoid losing power to your equipment, Ergotron recommends that you charge the battery as often as possible and, if the system is not going to be used for 3 months or more, remove the battery. - Page 6 Europe +31 (0)33-45 45 600 While Ergotron, Inc. makes every effort to provide accurate and complete information on the installation and use of its products, it will not be held liable for any editorial errors or omissions (including those made in the process of translation from English to another language), or for incidental, special or consequential damages of any nature resulting from furnishing this instruction and performance of equipment in connection with this instruction.
