AHD, CVI and TVI 4 Channel
Passive Video Balun
HDUB4P
Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference. All the examples and pictures used
here are for reference only. The contents of this manual are subject
to change without notice.
Advertisement
Table of Contents
Related Manuals for Genie HDUB4P
Summary of Contents for Genie HDUB4P
- Page 1 AHD, CVI and TVI 4 Channel Passive Video Balun HDUB4P Quick Start Guide Please read these instructions carefully before operating the unit and keep for further reference. All the examples and pictures used here are for reference only. The contents of this manual are subject...

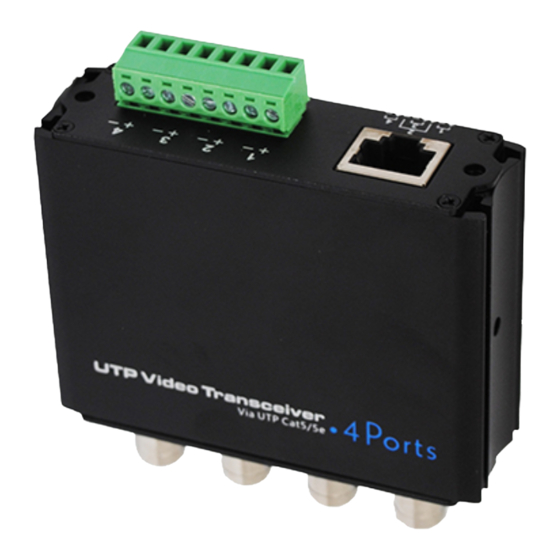

- Page 2 Quick Start Guide AHD, CVI and TVI 4 Channel Passive Video Balun The Genie HDUB4P is a 4 channel passive HD (Non-Amplified) video UTP transceiver that allows transmission of real time and high performance colour or monochrome CCTV video or AHD / HD-CVI / HD-TVI / HD video over UTP cable, ideal for multi- point transmission.
- Page 3 Terminal Block Port Coax Port Installation Steps Please check the following items before installation. If anything is missing, please contact dealer. • 1x HDUB4P • 1x Accessory Set • 1x User Manual Please follow the steps as below: 1. Turn off the power of the camera and display before installation.
- Page 4 Quick Start Guide AHD, CVI and TVI 4 Channel Passive Video Balun Application Monitor HDUB4P UTP Cat5e/6 Cable Note: Transmission distance is related to wire quality, please use standard UTP cable and coaxial cable. RJ45 connector and screw push terminal connection mode can not use at the same time, choose only one of them.
- Page 5 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
