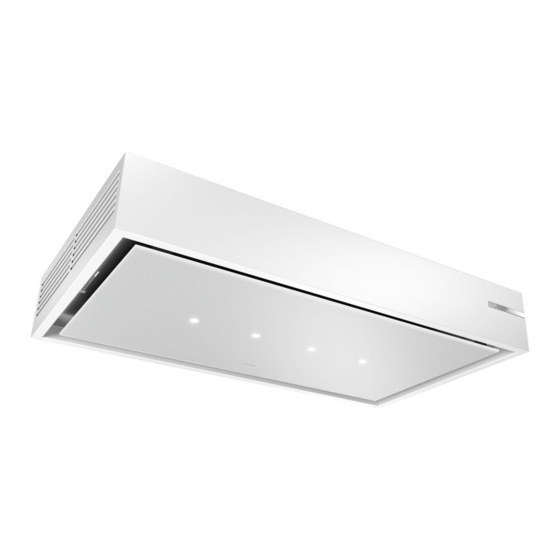

- Page 1 Ceiling-mounted ventilation sys- DRR18BS25 User manual and installation instructions [en]...
-
Page 2: Table Of Contents
en Safety Only use this appliance: Table of contents ¡ For extracting cooking vapour. ¡ In private households and in enclosed spaces in a domestic environment. INFORMATION FOR USE ¡ Up to an altitude of max. 2000 m above sea level. Safety .............. 2 Do not use the appliance: Preventing material damage ....... -
Page 3: Safety
Safety en Hot oil or grease ignites very quickly. Risk of injury when opening and closing the ▶ Always supervise hot oil and fat. hinges. ▶ Never extinguish burning oil or fat with wa- ▶ Keep your hands away from the hinges. The light emitted by LED lights is very ter. -
Page 4: Preventing Material Damage
en Preventing material damage An ingress of moisture can cause an electric WARNING ‒ Risk of fire! shock. Fatty deposits in the grease filters may catch ▶ Before cleaning, pull out the mains plug or fire. switch off the fuse in the fuse box. ▶... -
Page 5: Operating Modes
Operating modes en 4 Operating modes 4.1 Air recirculation mode The air which is drawn in is cleaned by the grease fil- ters and an odour filter, and conveyed back into the room. To bind odours in circulating-air mode, you must install an odour filter. The dif- ferent options for operating the appli- ance in circulating-air mode can be found in our catalogue. -
Page 6: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Controls Switch the fan run-on on or off Home Connect You can use the control panel to configure all functions of your appliance and to obtain information about the Reset the filter saturation indicator operating status. - Page 7 Basic operation en ¡ Default setting: Fan setting 3 7.5 Switching off intensive mode ¡ Lowest setting: Fan setting 1 To select a fan setting of your choice, press . ▶ ¡ Highest setting: Fan setting 5 7.6 Switching on the fan run-on 7.12 Setting the sensor control During the fan run-on, the appliance continues to run Requirement: The appliance is switched off.
- Page 8 en Home Connect 7.17 Setting the brightness 7.19 Switching the button tone off Press and hold or . The button tones can be switched off. ▶ Note: Colour temperature settings are available in the Note: Signal tones for the appliance are always Home Connect app provided the appliance has this switched on and cannot be switched off.
-
Page 9: Hob-Based Hood Control
Hob-based hood control en 8.2 Resetting the connection 8.4 Remote diagnostics Saved connections to the home network and to Customer Service can use Remote Diagnostics to ac- Home Connect can be reset. cess your appliance if you contact them, have your ap- pliance connected to the Home Connect server and if Press and hold ... - Page 10 en Cleaning and servicing 10 Cleaning and servicing To keep your appliance working efficiently for a long 10.5 Cleaning plastic time, it is important to clean and maintain it carefully. Observe the information regarding the cleaning agents. 10.1 Cleaning products → "Cleaning products", Page 10 Clean with a soft cloth and glass cleaner.
-
Page 11: Cleaning And Servicing
Cleaning and servicing en Press the lock on the filter cover. ATTENTION! The grease filters may become damaged if they are squeezed. Do not squeeze the grease filters. ▶ Note: When cleaning the grease filter in the dish- washer, light discolouration may occur. This discoloura- tion has no effect on the performance of the metal grease filters. -
Page 12: Troubleshooting
en Troubleshooting Batteries may explode. 10.12 Odour filter for recirculating air mode Do not charge the batteries. ▶ You can obtain odour filters from the after-sales service Do not short-circuit the batteries. ▶ or the online shop. Only use original odour filters. Do not throw batteries into a fire. -
Page 13: Customer Service
Customer Service en 11.1 Malfunctions Fault Cause and troubleshooting The appliance is not The mains plug of the power cord is not plugged in. working. Connect the appliance to the power supply. ▶ The circuit breaker in the fuse box has tripped. Check the circuit breaker in the fuse box. -
Page 14: Accessories
BSH Hausgeräte GmbH hereby declares that the appli- A detailed Declaration of Conformity can be found on- ance with Home Connect functionality conforms to the line at www.bosch-home.co.uk among the additional basic requirements and other relevant provisions of Dir- documents on the product page for your appliance. -
Page 15: Installation Instructions
Installation instructions en UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. 5 GHz WLAN (Wi-Fi): For indoor use only. 16 Installation instructions Observe this information when installing the appliance. 16.2 Safety clearances Comply with the safety clearances for the appliance. 16.1 Included with the appliance After unpacking all parts, check for any damage in transit and completeness of the delivery. - Page 16 en Installation instructions Risk of falling when working on the appliance WARNING ‒ Risk of fire! Grease deposits in the grease filter may catch fire. ▶ The specified safety clearances must be complied with in order to prevent a build-up of heat. ▶ Observe the specifications for your cooking appliances.
- Page 17 Installation instructions en Incorrect installation is dangerous. 16.6 Instructions for the electrical ▶ Connect and operate the appliance only in connection accordance with the specifications on the In order to safely connect the appliance to the elec- rating plate. trical system, follow these instructions. ▶...
- Page 18 en Installation instructions Install the appliance with a fixing material which is Loosen the screws on the side covers. sufficiently stable and has been adjusted accord- ingly for both the structural conditions and the weight of the appliance. Check the cut-out area for existing cables of other appliances.
- Page 19 Installation instructions en Guide the cable that is provided on-site through the Insert the on-site cable into the terminal plug. opening and hook the appliance into the fastening screws on the ceiling. Installing covers Push the appliance as far as it will go into the four WARNING ‒ Risk of injury! key hole openings using the guide sleeves.
- Page 20 en Installation instructions Push the side covers in the direction of the appli- Mount the filter cover on the designated screws and ance frame and screw them firmly in place. push it backwards/forwards depending on the key hole opening into the narrow section. Remove the new odour filter from the packaging.
- Page 21 Installation instructions en Press the lock on the filter cover. Remove the grease filters. To prevent the filter cover from swinging down sud- To avoid causing damage, do not bend the grease denly, hold onto the filter cover firmly with two filters.
- Page 22 en Installation instructions Loosen the cable that is provided on-site from the terminal clamp. Carefully loosen the diagonally opposite screws. Disconnect the appliance from the key hole open- ing. Slowly take the appliance down.
- Page 24 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
