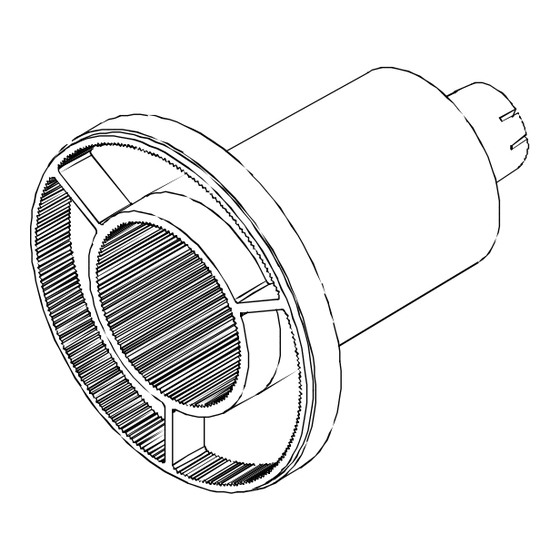

Modulex 80 Installation Manual

ModuleX Filter lighting
To install ModuleX safety
Read the instructions carefully before installation and commissioning! If you have found a defect of or have any questions product,
please stop the construction. Please contact your dealer.
Leave the instructions for users/customers for future reference!
Lens filter, Sharpener mountable models
MMP-080S/1H MMP-080A/WC
MMP-080A/MC
MMP-080S/3H
MMP-080S/5H MMP-080A/CC
MMP-080S/SH
Lens filter
MLA-080/DF01, DS03
Full Diffuser Lens Filter, Semi Diffuser Lens Filter
2 3/32"
Light source
side
Hood side
Installation Details(See the installation
guide for the lighting fixture)
Option parts Installation(MMP series)
Turn around the body.
1
Pull out the body from the hood.
2
Turn around the option holder,
3
and put out .
4 Put a filter in hood.
5
Turn around the option holder,
and put in.
Please attention that
the sharpener lens is counted
two pieces of filter lenses.
Donʼt put in the filters than
the rule number of pieces.
f
Causes of falling and damage.
Caution
・ Before carrying out maintenance and installation on the luminaire, disconnect from the mains supply.
・ It can not be used for non-mountable models.
There is a risk of injury at the edge part of the product. Please enough attention to handling.
・
Please be securely attached. Failure to observe this may cause the part of the luminaire to fall.
・
Please do not disassemble or modify the product.
・
（Contact）
Concord Lighting
5/F, Longbow House,14-20 Chiswell Street, London, EC1Y 4TW, UK
Tel : +44-01273-616649
Options Installation guide
®
MMP-080D/1H MOP-080A/WC
MMP-080D/3H MOP-080A/MC
MMP-080D/5H
MMP-080D/SH
MLA-080/SF01, SS01
Spread Lens Filter, Semi Spread Lens Filter
2 3/32"
Light source
Hood side
side
(flat side) (waveform side)
Installation Diagram
1
Lens filter mountable models
SX-505CBP SX-535CBP SX-505/80DF
SX-505CBPC SL-505/80DF
SX-535CBPC
SX-505LEC SX-535LEC SL-505/80DFC
SX-505LE
SX-535LE
MLA-080/EC02
Edge Control Lens Filter
2 3/32"
Body
2
Hood
Option
holder
3
Lens filter
Hood
（Manufacturer）
ModuleX Inc.
#21 AraiBldg, 1-20-6 Ebisu-Minami Shibuya-ku, Tokyo
Tel : +81-3-5768-3131
SX-535/80DF SX-B1652D/BF
SL-535/80DF SL-B1652D/BF
SL-535/80DFC SX-B1652D/WC
SL-B1652D/WC
Sharpener
MLA-080/SH01
Sharpener
Light source
For narrow light distribution
side
model only!
Hood side
Caution
f
Option
UP to 2FILTERS
holder
Sharpener
MOD-P1652DR/BF
MOD-P1652DR/WC
Sharpener
