Modulex SX-LN131 Mounting Installation Manual

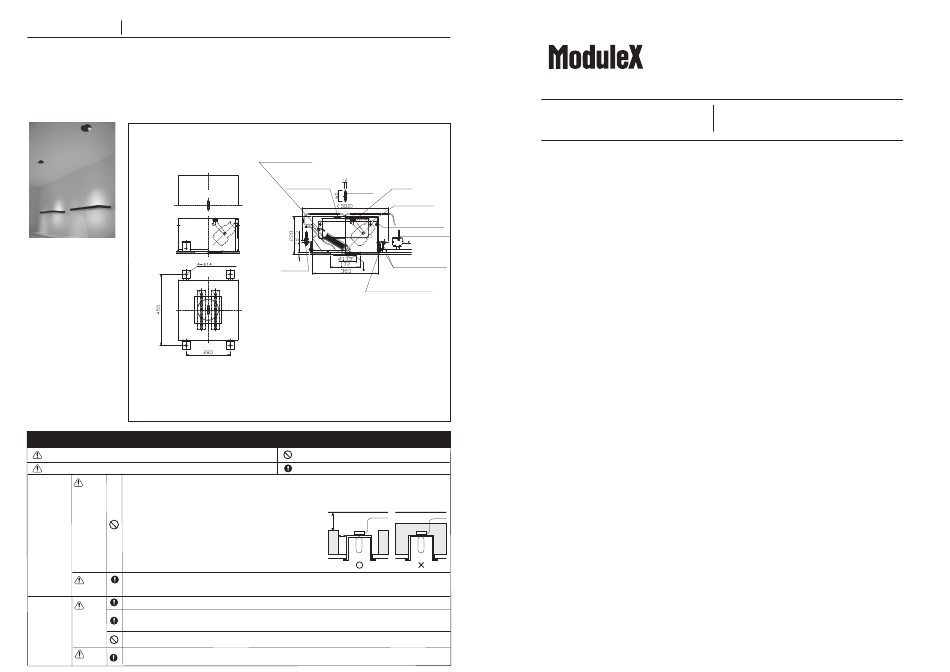

Installation Guide Mounting
NEO DOWNLIGHT
SX-LN131
Conformity ceiling thickness
To install the fixture safely《 Read carefully and follow all the instructions in the guide 》
Warning : Failure to install the fixture properly could result in personal injury.
Caution : Failure to install the fixture properly could result in property damage.
The fixture is for indoor use only in general conditions.
Before Warning
Can not be used following conditions (Causes of falling, electrocution and fire)
installation
●Inclined, uneven surface
●High humidity
●Outside
●On the floor
●Vibrated or shocked areas
●Areas get direct sunlight
Please contact if you are not able to judge whether installation
environment is suitable to the places or not.
Please follow the fixturesʼ indication or specification for the distance of irradiated area.
Caution
(Causes of change in shape, change in color of irradiated objects)
Please follow the fixturesʼ instruction or this guide to install the fixture and lamp. (Causes of falling・electrification・fire)
At lighting
Warning
fixture
Make sure to install all the parts of fixtures besides installation and mounting parts will not touch with any
installation
objects both inside and outside of ceiling such as lighting track, etc. (Causes of falling・electrification・fire)
Do not dismount or remodel fixtures. (Cause of electrification・fire・falling・broken fixtures)
Make sure the construction will not affect any fire prevention systems such as sprinkler by heat from the fixture.
Caution
(Causes for improper operation)
12.5〜25mm
After wire connection
ballast shall be placed outside
the box from the access hole
Fixture Installing Rail
wiring hole
Fixture (sold separately)
3/8" bolt
(Constructs Separately)
Surface finish
Adjustable bracket
(Constructs Separately) Height adjustment is possible
The fixture cord shall be put out from the through
hole in the center of the box and put out through access hole.
ballast shall be placed outside the box and close
the maintenance cover
Weight 9.4kg
: Prohibited
: Strict observance
●Insulated inside of ceiling ●Ambient temperature under 0℃ and over 35℃
●Ceiling which canʼt hold the fixture weight
20cm〜
●On the wall
10cm〜
●Places affected by wind or air-conditioner machine
●Near fire
Insulator Insulator
●Dusty areas, corrosive gas outbreaks areas
Installation Guide
Box
Cover maintenance
Ballast(sold separately)
Channel bar
(Constructs Separately)
Insulator
Mounting
