HQ Power STAR BLAZE 200 VDP200OA9 Quick Start Manual

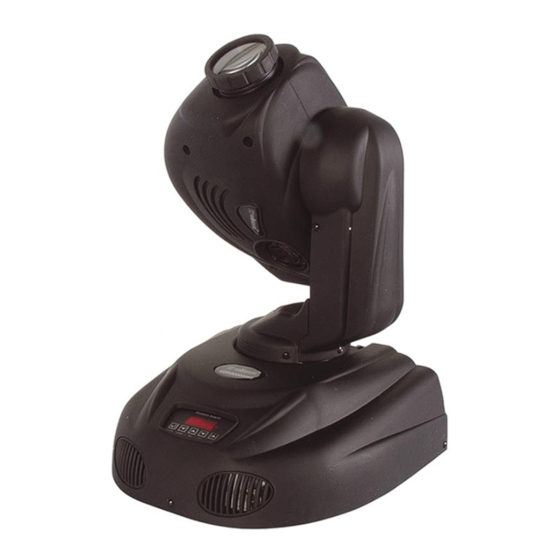

VDP200OA9 – "STAR BLAZE 200" ONE-ARMED MOVING HEAD - 9 CHANNELS - 200W
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the VDP200OA9! If it was damaged in transit, don't install or use it and contact your dealer.
The VDP200O9 should come with a power cable, an XLR connection cable and this manual.
Its features are:
• pan 530°/tilt 285°
• 11 dichroic colours + white
• colour wheel with rainbow effect in both directions
• 6 rotating and shaking interchangeable gobos (4 metal, 1 multicolour dichroic, 1 glass gobo) + open
• gobo wheel with continuous rotation in both directions
• strobe: 0 ~8 Hz, pulse strobe or sound activity strobe
• automatic program and music control
• display: digital address and function settings
• high speed pan & tilt movements
• display can turn 180° if the mounting location so requires
• DMX mode, stand-alone mode or master-slave synchro mode
• standard 15° manually focused beams angle
• memory function: automatic pan/tilt position correction

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening electroshocks.
Do not touch the device during operation as the housing heats up.
Keep this device away from rain and moisture.
Unplug the mains lead before opening the housing.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will
not accept responsibility for any ensuing defects or problems.
• A qualified technician should install and service this device.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device
against damage by leaving it switched off until it has reached room temperature.
• This device falls under protection class I. It is therefore essential that the device be earthed. Have a qualified
person carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
• Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug only.
• There may be some smoke or a particular smell when the device is activated for the first time. This is normal and
any smoke or smell will gradually disappear.
VDP200OA9
1 VELLEMAN
