Summary of Contents for TOOL WAREHOUSE KSD507

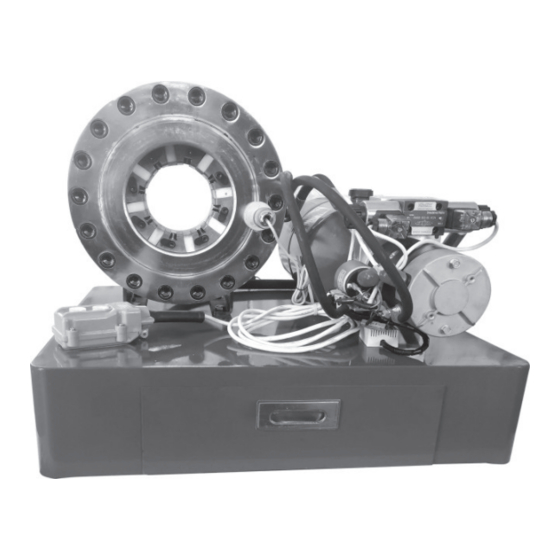

- Page 1 HYDRAULIC HOSE PRESS KSD507...
- Page 2 CAT AL O G U E CATALOG……………………………………………………… PRODUCRION INTRODUCTION……………………… SIMPLIFIED DIAGRAM…………………………………… TECHNICAL PARAMETERS……………………………… MAINTENANCE……………………………………………… HYDRAULIC SCHEMATIC………………………………… NOTE……………………………………………………………...
- Page 3 D I A G R A M Micrometer Open dies Head Close dies Dies molds locker Hydraulic Unit Power connection bolt NOTE：The picture is for reference only, please refer to the actual product. T e c h n i c a l P a r a m e t e r s...
- Page 4 Model KSD507 Voltage DC12V Power 1.6kW Pressure 20MPa Maximum throughput 114mm Winter：L-HM32 Hydraulic oil Summer：L-HM46 effective 4.0L working volume 1060*630*570（mm） L*W*H Crimping ranger Φ 6 — Φ 5 1 Instructions and maintenance 一、I n s t r u c t i o n s 1.
- Page 5 funnel. 3. Power wiring: This machine is equipped with DC24 DC power. Due to the large rated current, the power cable diameter requirement is ≥10mm².Recommended that professional electricians operate the wiring or consult the relevant personnel of the company. 4. Pressure ： The hydraulic pressure have already finish adjust before shipping ,so user should not adjust it themselves to avoid overloading the machine.
- Page 6 The calculation method is: regulator size + mold diameter = final buckle diameter 10. Operation: A. Press the lock button side motor to start, and the device is locked; B.Press the open button side motor to start, and the device opens； Note：The motor of this equipment shall not start continuously for more than 10 minutes.
- Page 8 N O T E 1. The equipment is used and the operation process is assumed to be the pressure of the hydraulic rubber hose assembly. If there is a big difference in the working conditions, please communicate with the relevant personnel of the company in time. The company is not responsible for the damage caused by the operation of the equipment under the uncertain conditions and the damage caused to the equipment and other aspects.
