26 ECTIVE Multiload Pro

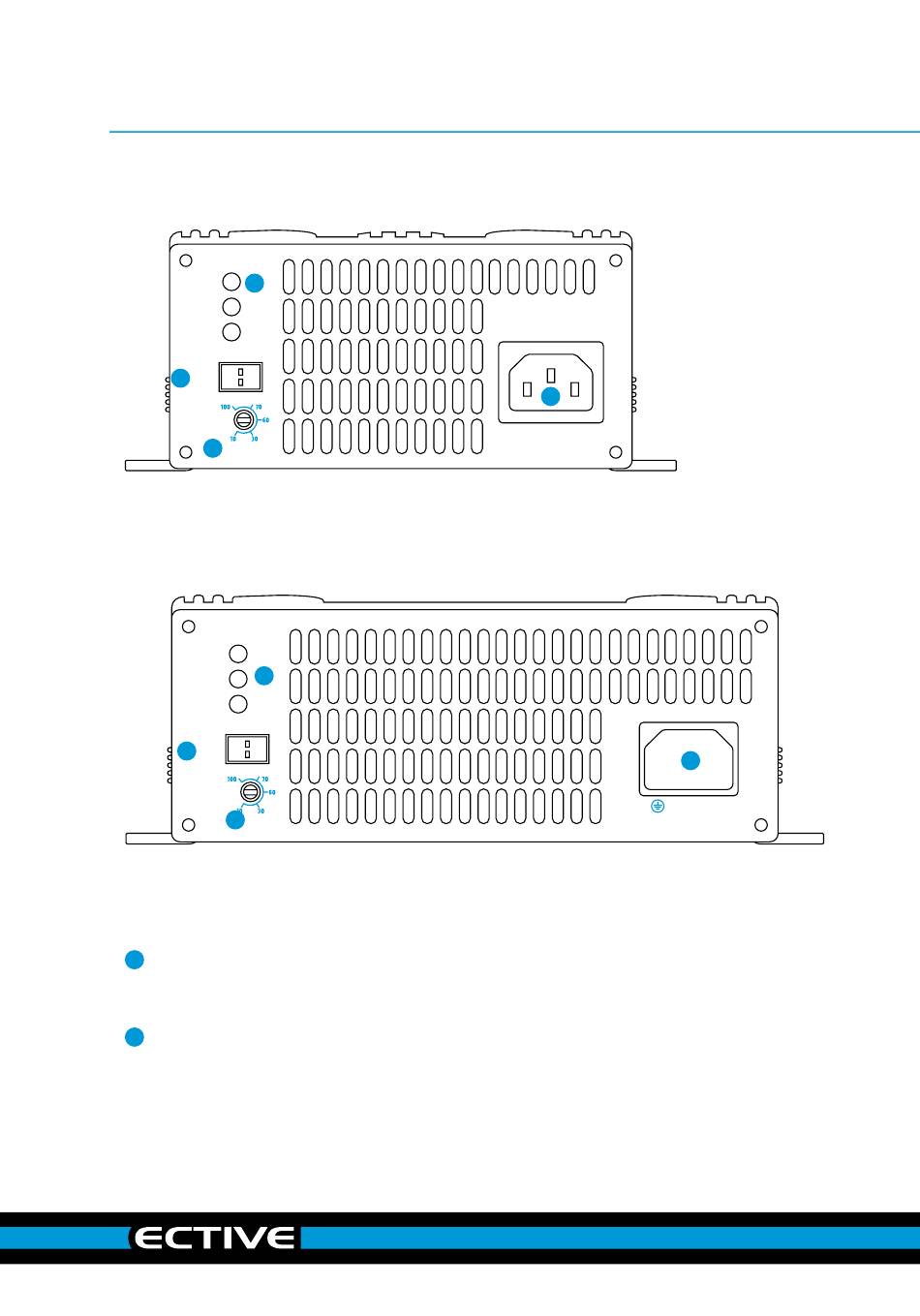

Rear Panel
STATUS
7
GREEN
STATUS
YELLOW
FAULT
0 1
SW1
8
SW2
Charge
current
control
6
Multiload 37 Pro and Multiload 75 Pro
STATUS
GREEN
7
STATUS
YELLOW
FAULT
0 1
SW1
8
SW2
Charge
current
control
6
Multiload 150 Pro
Input Terminal
5
The Multiload Pro accepts different input voltages from 90 to 286V (AC)
Charge Current Control Dial
6
Use this dial to adjust the level of charging current The adjustment
range is 10 to 100% of the maximum current rating
