SAYFA SYSTEMS UK 3SIXTY Quick Start Manual

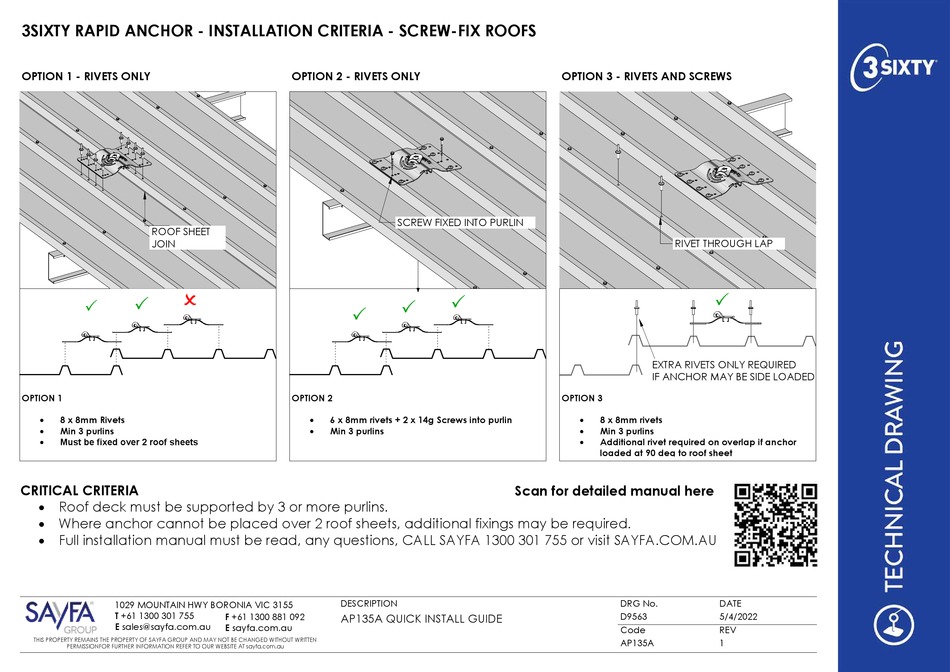

3SIXTY RAPID ANCHOR - INSTALLATION CRITERIA - SCREW-FIX ROOFS
OPTION 1 - RIVETS ONLY
ROOF SHEET
JOIN
✗
✓
✓
OPTION 1
� 8 x 8mm Rivets
� Min 3 purlins
� Must be fixed over 2 roof sheets
CRITICAL CRITERIA
� Roof deck must be supported by 3 or more purlins.
� Where anchor cannot be placed over 2 roof sheets, additional fixings may be required.
� Full installation manual must be read, any questions, CALL SAYFA 1300 301 755 or visit SAYFA.COM.AU
