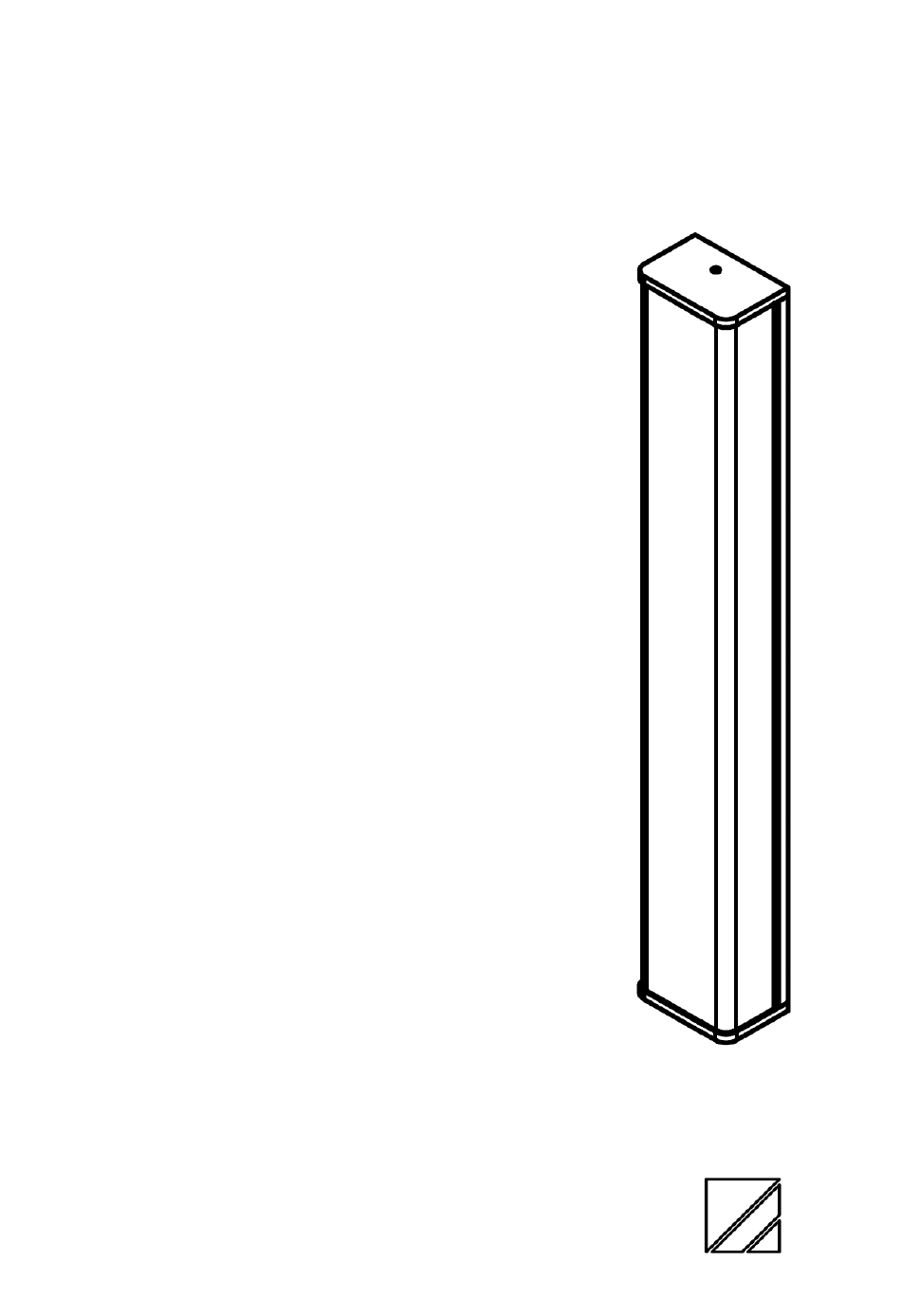

- Page 1 MNAR302-R01 EN AUDEIA AR302/x Compact High Performance Array Speakers USER MANUAL Revision 1 – 2015 Gen – EN – www.audeia.com...
- Page 2 • There are maybe some areas with high voltages inside, to reduce the risk of electric shock, do not remove any cover if the power supply is connected. The cover should be AUDEIA – AR302/X – USER MANUAL - EN...
- Page 3 ABOUT THIS MANUAL ..........4 LEGAL DISCLAIMER ............ 4 PRECAUTION FOR INSTALLATION AND USE ..4 WARRANTY ..............4 OVERVIEW ..............5 POSITION ..............5 MOUNTING..............5 MOUNTING WITH MK13 KIT........6 TECHNICAL SPECIFICS ..........7 AUDEIA – AR302/X – USER MANUAL - EN...
- Page 4 • LEGAL DISCLAIMER Abnormal service or repairing by not authorized technicians. AUDEIA, RSS, and the other names of apparatus or • In no event shall AUDEIA be liable for any components are trademarks or registered trademarks of incidental...
- Page 5 2) In the previously made holes now you can make the holes for the rawplug. AUDEIA – AR302/X – USER MANUAL – EN...
- Page 6 3) Insert the rawplug in the wall and screw the support in NOTE: Pay attention screwing the support, the corner could damage the wall, if required apply a transversal force to correct the rotation. AUDEIA – AR302/X – USER MANUAL – EN...
- Page 7 115 dB SPL/1m at nominal power Sensitivity 94 dB SPL 1w/1m Speakers: 8X2” – aluminium membrane Dimension (WxDxH): 67X47X503 mm (2,64"X1,85"X19,76") Operating temperature range: 5-45°C/41-113°F Weight: 2.9 kg (6.04lb) Connection: Red and black wires AUDEIA – AR302/X – USER MANUAL – EN...
- Page 8 www.audeia.com...
