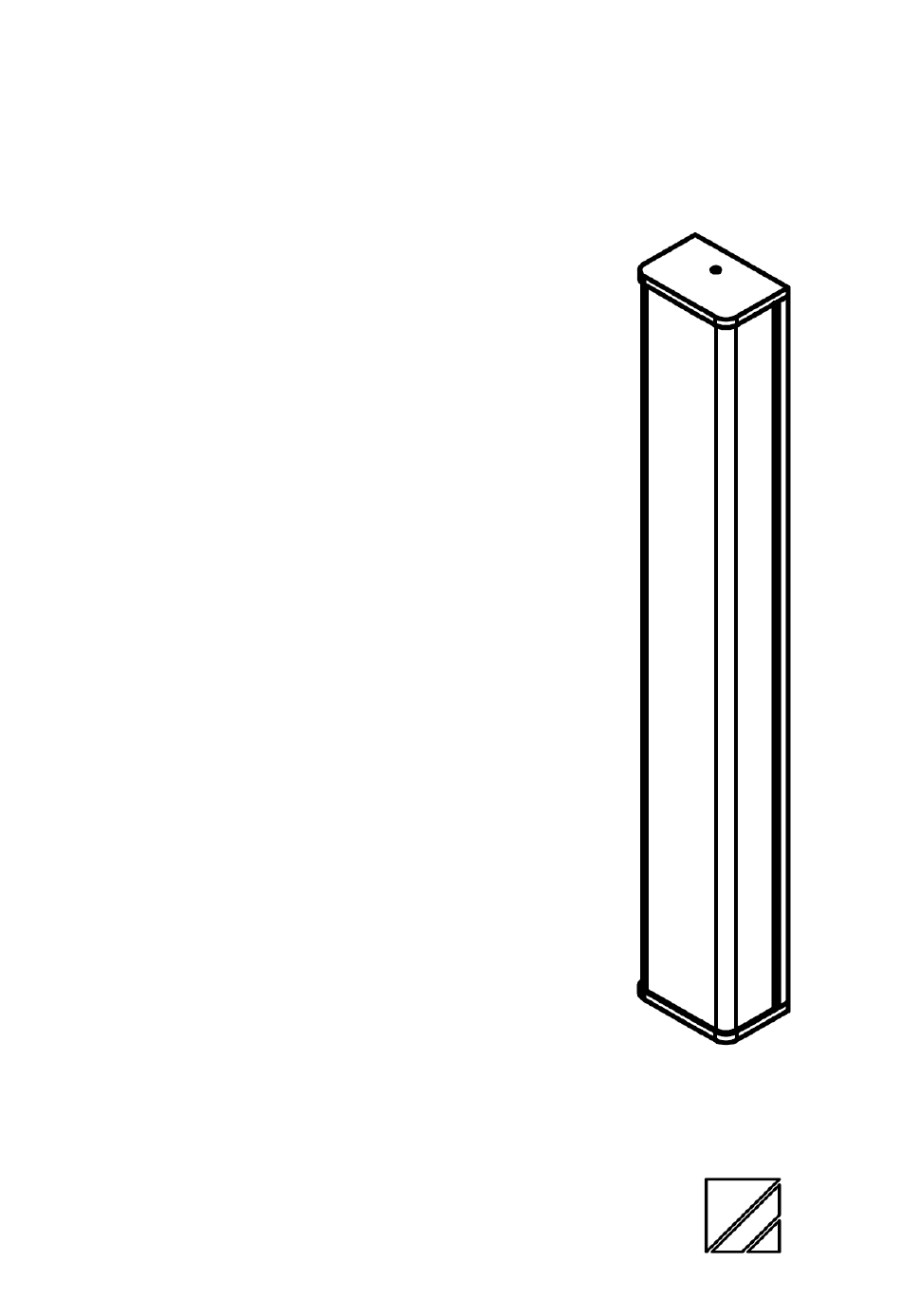

- Page 1 MNAR303-R02 EN AUDEIA AR303/x Compact High Performance Array Speakers USER MANUAL Revision 2 – 2016 Feb – EN – www.audeia.com...
-
Page 2: Safety Precaution
• There are maybe some areas with high voltages inside, to reduce the risk of electric shock, do not remove any cover if the power supply is connected. The cover should be AUDEIA – AR303/X – USER MANUAL - EN... -
Page 3: Table Of Contents
ABOUT THIS MANUAL ..........4 LEGAL DISCLAIMER ............ 4 PRECAUTION FOR INSTALLATION AND USE ..4 WARRANTY ..............4 OVERVIEW ..............5 POSITION ..............5 MOUNTING..............5 MOUNTING WITH MK13 KIT........6 TECHNICAL SPECIFICS ..........7 AUDEIA – AR303/X – USER MANUAL - EN... -
Page 4: Included Items
LEGAL DISCLAIMER • Abnormal service or repairing by not authorized AUDEIA, RSS, and the other names of apparatus or technicians. • components are trademarks or registered trademarks of In no event shall AUDEIA be liable for any respective owner. -
Page 5: Overview
2) In the previously made holes now you can make the holes for the rawplug. AUDEIA – AR303/X – USER MANUAL – EN... -
Page 6: Mounting With Mk13 Kit
3) Insert the rawplug in the wall and screw the support in NOTE: Pay attention screwing the support, the corner could damage the wall, if required apply a transversal force to correct the rotation. AUDEIA – AR303/X – USER MANUAL – EN... -
Page 7: Technical Specifics
113 dB SPL/1m at nominal power Sensitivity 101,3 dB SPL 1w/1m Speakers: 8X2” – aluminium membrane Dimension (WxDxH): 67X47X503 mm (2,64"X1,85"X19,76") Operating temperature range: 5-45°C/41-113°F Weight: 2.9 kg (6.04lb) Connection: Red and black wires AUDEIA – AR303/X – USER MANUAL – EN... - Page 8 www.audeia.com...
