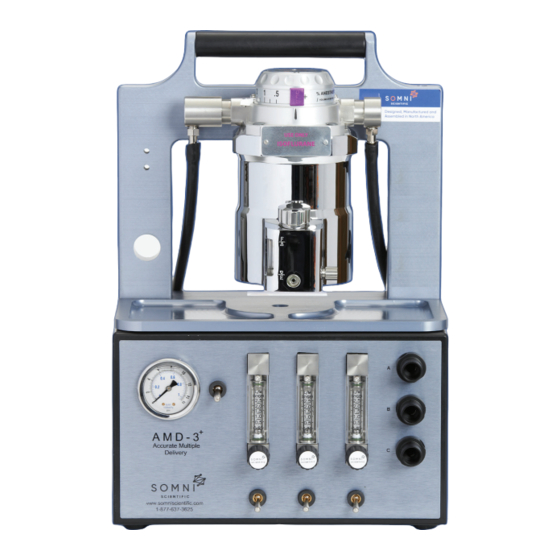

- Page 1 SOMNI AMD-3+ ACCURATE MULTI-DELIVERY SYSTEM SOMNI PRODUCT MANUAL Pressurized 3 Station Flowmeter Controlled Diverter System Model AMD-17106, AMD-17217...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Intended use Unpacking/ included items Introduction Warnings, definitions, about this manual Description of controls/features Product Operation Routine Maintenance Daily test Cleaning Troubleshooting Warranty and Service Information Supplies and Accessories Specifications... -
Page 3: Intended Use
Use of a pressurized flow controlled anesthesia system ensures continuous, consistent and accurate flowrates to each station for the duration of the procedure. The SOMNI AMD-3+ system includes a SOMNI 3 6psi calibrated Isoflurane vaporizer. Only use the AMD-3+ system with a 6psi specially calibrated vaporizer, failure to do so can result in equipment damage and inconsistent flow rates/anesthetic concentration to the animal. -
Page 4: Introduction
INTRODUCTION WARNINGS, NOTES AND DEFINITIONS Warning! System is pressurized to approximately 6 psi when in use! Fail- ure to follow Depressurization procedure will result in high levels of anes- thetic exposure! Warning! Operator must read entire manual prior to operation and be trained in the use of inhalant anesthetic equipment. -
Page 5: Description Of Controls/Features
DESCRIPTION OF CONTROLS/FEATURES Flowmeter switch Pressure gauge • Connect the black tubing from the vaporizer inlet (6) to the “A” “B” “C” oxygen outlet (7) on the back of the AMD-3+. • Connect the black tubing from the vaporizer outlet (8) to the gas inlet (9) on the back of the AMD-3+. -
Page 6: Product Operation
PRODUCT OPERATION • Place the SOMNI AMD-3+ on a flat, stable surface and ensure the main oxygen supply switch is in the “OFF” position. • Connect the fresh gas delivery lines supplied to each of the common outlets labelled A, B, or C. If one of the lines is not needed, it is not necessary to disconnect it. - Page 7 PRODUCT OPERATION CONT. • Follow established guidelines regarding flowrates WARNING: and percent anesthetic concentration. Suggested Anesthetic Vaporizer Is fresh gas flow to any accessory (except hooded style Under Pressure induction chamber) SHOULD NOT EXCEED 1 LPM. Recommended maximum fresh gas flow rate for induction chamber is 2 LPM.
-
Page 8: Routine Maintenance
• Turn flowmeter toggle switch off. Call 877-637-3625 for assistance • Turn main oxygen supply toggle switch off (AMD-3+) • Observe pressure gauge. If system pressure drops contact Somni Support. • Inspect lines, connectors and accessories for wear prior to use. Cleaning •... -
Page 9: Warranty And Service Information
THIS IS THE EXCLUSIVE use, if maintained in accordance with SOMNI’s guidelines REMEDY. SOMNI shall not be liable for and hereby disclaims any and used according to its labeling, for the period specified in direct, incidental, consequential or special damages or delays, the manual. -
Page 10: Supplies And Accessories
SUPPLIES AND ACCESSORIES SPECIFICATIONS For Active type System • EPS-3 Exposure Prevention System, active PN: WG- Weight 14 lbs. / 6.5 kg 15001 • Large Induction Chamber, Active Vacuum Style (9 Liter) PN: IA-3009 Dimensions 12 in W x 8 in. D x 8 in. H •...
