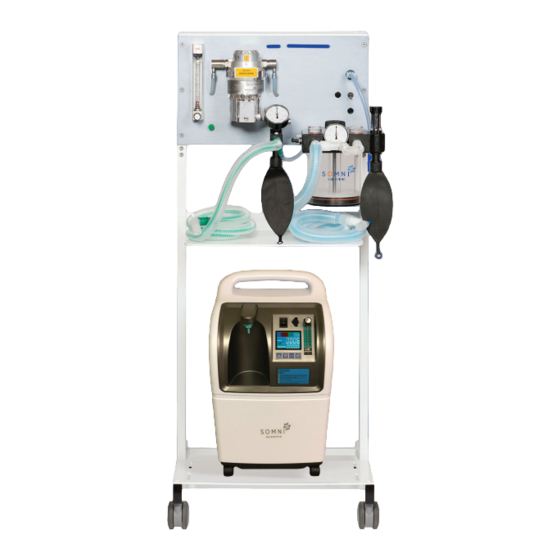

- Page 1 SOMNI REBREATHING ANESTHESIA SYSTEM MODELS RM-17002, RM-17003, RM-17004 SOMNI PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Intended Use Unpacking/ included items Introduction Warnings, Notes and Definitions Description of controls/features Product Operation Routine Maintenance Daily test Cleaning Minor Repairs Troubleshooting Warranty and Service Information Supplies and Accessories Specifications... -
Page 3: Intended Use
INTENDED USE The SOMNI RS Rebreathing Anesthesia System was designed for Veterinary Use Only. It is a lightweight, durable, mobile system with 3-inch casters for maneuverability. The SOMNI RS Rebreathing Anesthesia System includes an incorporated toggle to switch between rebreathing and nonrebreathing systems, you do not have to remove the breathing circuits during use. -
Page 4: Introduction
INTRODUCTION WARNINGS, NOTES AND DEFINITIONS • Warning! Operator must read entire manual prior to operation and be trained in the use of inhalant anesthetic equipment. Failure to do so may harm the animal. • Warning! Do not connect unregulated compressed carrier gas to the RS anesthesia system. -
Page 5: Description Of Controls/Features
DESCRIPTION OF 1-Oxygen Flowmeter CONTROLS/FEATURES 2-Flush Valve 3-Accessory Mounting Area Inhalation Port Mounting Area for E-cylinder Manifold Vaporizer Inlet and Outlet Endcaps Accessory Mounting Area Common Gas Outlet Switch, Rebreathing or Nonrebreathing 10. Pop-off (APL) Valve 11. Exhalation Port 12. Rebreathing Bag Port 13. -
Page 6: Product Operation
Note: This step can be performed prior to installing the vaporizer onto the frame if needed. Connect oxygen (carrier gas) supply source to the DISS Male fitting on the back of the flowmeter. **For Model RM-17002 see below for Concentrator Kit instructions** 10. Turn the oxygen (carrier gas) supply on. - Page 7 CONCENTRATOR KIT INSTALLATION (MODEL RM-17002) Stud Hardware installed on base plate: 4 3/8 -24 x 2 inch hex bolt 8 3/8 x 24 hex nut 12 3/8 inch ss washer 4 3/8 inch cushioning washer In order as installed: bolt, ss washer, base plate, ss washer, 2x hex nut, ss washer, cushioning washer Unpack concentrator and remove wheels by pulling away from (base) of concentrator.
- Page 8 PRODUCT OPERATION CONT. ATTACHING THE F-CIRCUIT *The F-circuit is a rebreathing circuit for use with animals that weigh approximately 15 lbs. (7kg) or more. 1. Connect the longer, single limb of the circuit to the inhalation valve. 2. Connect the shorter, corrugated tube to the exhalation valve. 3.
-
Page 9: Routine Maintenance
ROUTINE MAINTENANCE Before each use, “leak test” the machine, and also ensure that the waste gases have a clear way through your evacuation system. Daily test Turn the flowmeter knob fully open and observe the float ascends and descends freely and rests Close the pop-o valve and create a tight seal of the patient circuit with your hand. -
Page 10: Troubleshooting
TROUBLESHOOTING Flowmeter will not turn off – Needle valve may be worn or need adjustment Animals will not go to sleep/stay asleep – Inspect system for leak • Tighten any loose connections (vaporizer endcaps, tubing connections) • Inspect breathing circuit and bag for leak or loose connection •... -
Page 11: Warranty And Service Information
THIS IS THE EXCLUSIVE from defects in materials and workmanship under normal REMEDY. SOMNI shall not be liable for and hereby disclaims any use, if maintained in accordance with SOMNI’s guidelines direct, incidental, consequential or special damages or delays,... -
Page 12: Supplies And Accessories
SUPPLIES AND ACCESSORIES SOMNI 3 Vaporizer Isoflurane PN: VS-6002 SOMNI 3 Vaporizer Sevoflurane PN: VS-6001 Oxygen Concentrator 0-5lpm PN: OC-21003 Bain Block Nonrebreathing Assembly PN: DS-14005 Pediatric Unilimb (F-Circuit), 60 in. PN: BC-13003 Cpram/Bain Circuit, 72 in. PN: BC-13001... -
Page 13: Specifications
SPECIFICATIONS Dimensions and Weight Weight 45 lbs./ 20.5 kg Dimensions 21in W x 21in D x 53in Tall (53 cm W x 53cm D x 135 cm T) Vaporizer endcaps 23mm tapered Flowmeter 0.2-4LPM Oxygen (carrier gas) inlet DISS Male Frame anodized aluminum...
