Summary of Contents for LiteGear LiteDimmer Spectrum AC600

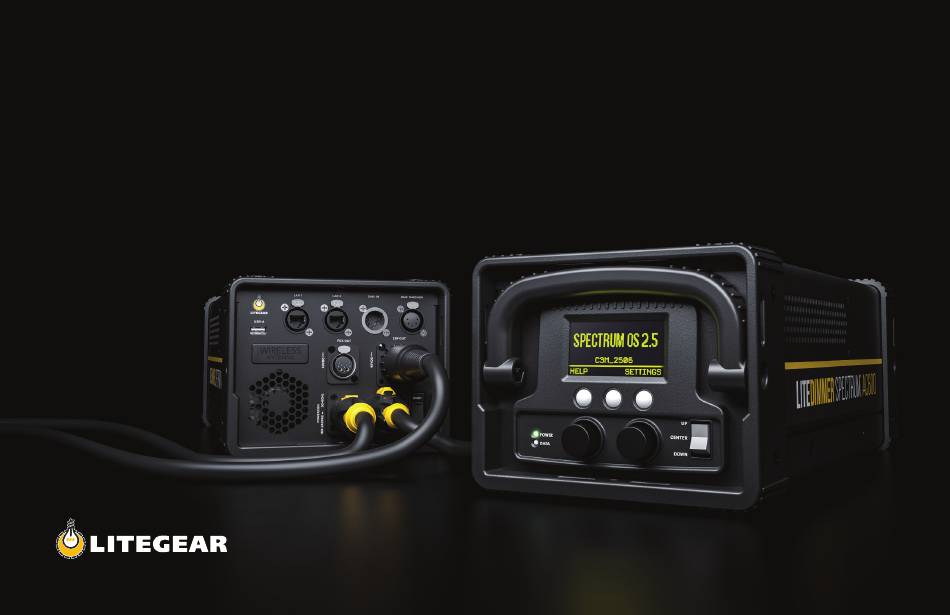

- Page 1 LiteDimmer Spectrum AC600 USERS GUIDE...
-
Page 2: Table Of Contents
Installation Dimmer Faults ........29 © 2022 LITEGEAR, INC. All rights reserved. Information subject to change without notice. LiteGear and all affiliated companies disclaim liability for any injury, LiteDimmer Truss Mount ....11 Specifications damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance LiteDimmer Stand Mount ....12... -
Page 3: Dangers
WARNING Risk of electric shock from high humidity. • Repairs must be performed by LiteGear or an authorized service agent. • Maintenance to be performed only when identified in this user guide. • Do not operate or expose this product to rain or moisture. -
Page 4: Introduction
Features Hardware Features The LiteDimmer Spectrum AC600 is a new class of dimmers made specifically with Auroris in mind. Complete with local control and new communication protocols, this dimmer can control 12 large format pixels, making pixel mapping large • Simple and intuitive user interface. -
Page 5: Front Panel (Controls)
Front Panel (Controls) Front Panel (Controls) 1. OLED Display - Offers an intuitive navigation for the LiteDimmer Spectrum AC600 control center. 2. Encoders (Left and Right) - Allows for easy scrolling and mode selection available with this dimmer. 3. Power LED Indicator - Lights on when dimmer is powered on. -
Page 6: Back Panel (Connections)
Overview Overview Back Panel (Connections) Back Panel (Connections) 8. USB-A Port - The integrated port allows for quick and easy firmware updates. 9. EtherCon Ports - Two EtherCon ports and integrated Ethernet switch enable daisy chaining of Art-Net and sACN (Coming soon via software update). -
Page 7: Top & Bottom (Features)
LED 17. K-Mount Plate - Quickly and device through the 28-pin or the PDX connector. easily attach any LiteGear Not doing so may cause damage to the LED K-Mount accessory. fixture or the dimmer. -
Page 8: Installation
LiteDimmer Truss Mount LiteDimmer Stand Mount The LiteDimmer truss mount provides secure attachment of the LiteDimmer Spectrum AC600 to any 1.5” to 2” pipe. The LiteDimmer Stand Mount provides a secure attachment of the LiteDimmer Spectrum AC600 to a light stand A k-Mount enables quick attachment to the AC600 while the 2”... -
Page 9: Dimmer Info
Settings Settings Dimmer Info Display Settings Dimmer Info allows the user to view dimmer information such as dimmer status, temperature, power info, RDM info, Display Settings allow the user to control the OLED display screen’s illuminated time. The display also allows firmware and hardware versions, and more. - Page 10 Settings Settings Output Settings Factory Reset Output Settings allow for the adjustment of the dimmer color space, pixel handling, and power limiting features. These Factory Reset will reset all settings, modes, profiles, and DMX selections to the factory defaults. setting apply both with local control and via DMX. 1.
-
Page 11: Local Control
Settings Firmware Update Local Control Updating Dimmer Firmware Local Control allows the user to control the fixture through the 2 encoders, the rocker switch, and set of 3 function 1. Set the 3-position rocker switch to the CENTER position. buttons below the OLED display. PIXEL MODE is not accessible when using the dimmer manually. To learn about pixel 2. -
Page 12: Functions
Functions Functions Setting Tint in True Hybrid and Spectrum Modes Audition Audition, available in local modes, allows the operator to fade the output OFF and then back ON, allowing for Pressing the Tint button allows for ±Magenta/Green Color Correction. There are 100 steps of Green (+) and 100 steps of Magenta (-) correction from neutral (0). -
Page 13: Parameter Presets
Functions Functions Parameter Presets Cue Function Parameter Presets exist for each main parameter, CCT, Accent Color, and Saturation. Six factories presets are available Cue Function operates like global-presets with a dedicated playback screen. This feature consists of three “looks” at your fingertips. Easily invoke the feature by short-pressing the LEFT screen-side button. Three of the most common including two standard looks and one momentary look. -
Page 14: Dmx Settings Dmx Settings
HOLD settings are active. - DMX SERIES SELECT with new OS 2.5 firmware, LiteDimmer Spectrum AC600 can operate as previous Spectrum DC200 release as SERIES 1 and OS 2.0 release as SERIES 2. When performing a factory reset, SERIES 2.5 is the auto choice. -
Page 15: Dmx Personalities
To view Spectrum OS2.5 9. True-Hybrid Plus Pixel 16b 21. RGB Spectrum 16b DMX Personalities, scan the 10. Reserved 22. RGB Spectrum Pixel 8b QR code above or go to 11. Spectrum 8b 23. RGB Spectrum Pixel 16b litegear.com/spectrumOS2-5dmx/ 12. Spectrum 16b... -
Page 16: Rdm State
RDM State Fixture #/Universe Assignment RDM State enable the user to turn the RDM functionality on or off. Fixture # allows for setting the fixture number. Universe Assignment allows for labeling the DMX universe (Note: This does not set the DMX Universe) 1. -
Page 17: Error Codes
Error Codes Specifications Pixel Faults Technical Specifications Com Flt: Faulty Dimmer to Pixel communications Input Voltage: 100-240 VAC, 50/60 Hz Over A: Pixel current exceeds circuit rating. (1.8A) Input Current: 4.5A to 9A Undr VW: Pixel supply voltage nears low voltage circuit rating. (44V) Output Voltage: 48VDC Over VW: Pixel supply voltage approaches high voltage limit. -
Page 18: Dimensions
Pressing the function button below HELP on the Welcome Screen provides access to a QR code that will link your 5.79 smart phone or tablet to the Spectrum support page on the LiteGear website. Here you will find resources to answer many common questions. If you feel you need further assistance, you can always call LiteGear customer experience at 7.2 in. -
Page 19: Certifications
Certifications For additional information on your Auroris and LiteDimmer Spectrum AC600, visit us at litegear.com/auroris...
