Summary of Contents for OAD Ultrafidelity Padma

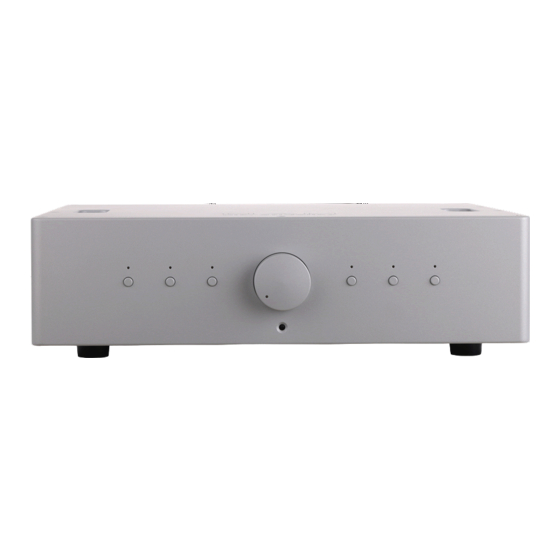

- Page 1 Padma Ultrafidelity Stereo Control Preamplifier Owner’s Manual...
-
Page 2: Table Of Contents
Contents Section Page No. Introduction ............... . 1 Warnings . -
Page 3: Introduction
After reading this manual, if you have any further questions regarding your preamplifier, contact your dealer or OAD Ultrafidelity customer service – they will be happy to help you to make the most of your new component. -
Page 4: Interconnect Cables
XLR(Balanced) & RCA(Phono) Interconnect plugs and sockets should be kept clean and free from corrosion. The Padma is fitted with gold plated input and output sockets that may tarnish over time. If you wish to clean the connectors, switch off the equipment, pull the plugs out of their sockets, and push them back in again. -
Page 5: Identification Of Connections & Controls
R2.0 Ø22.0 • If you do not intend to use the Padma for long periods of time (such as when on holidays), switch off OAD Preamp Rear Panel Hole Cutouts (0) the POWER switch. With POWER switched off, the remote control’s power button cannot activate 19.8... -
Page 6: Description
8 REMOTE OUTPUTS • The two trigger outputs can be used for various purposes. The most obvious one is making the power amplifier (stereo or mono) turn on and off with your preamplifier. Any standard 3.5mm jack/jack cable will do (mono or stereo). The factory setting is to make both outputs come on as soon as the preamplifier is turned on. -
Page 7: Standby Mode
Operating mode cont. Volume control can be performed by either moving the physical volume knob by hand or by using the volume up/down buttons on the remote control. A single press of the volume up/down button will increase or decrease the volume by 0.5dB. Pressing and holding the volume buttons will initially change the volume by 0.5dB and after holding the button for greater than 1 second will cause the volume to continuously increase or decrease for as long as the button is held down. -
Page 8: Line Stage Specifications
In the unlikely event that technical service beyond the ability of the importer is required, OAD Ultrafidelity will fulfil the terms and conditions of the Limited Warranty. Such product must be returned at the purchaser’s expense to the OAD Ultrafidelity factory, along with a photocopy of the dated purchase receipt for the product, a written description of the problem(s) encountered, and any information necessary for return shipment. - Page 9 This Page Intentionally Left Blank...
- Page 10 ultrafidelity www.openaudiodesigns.com...
