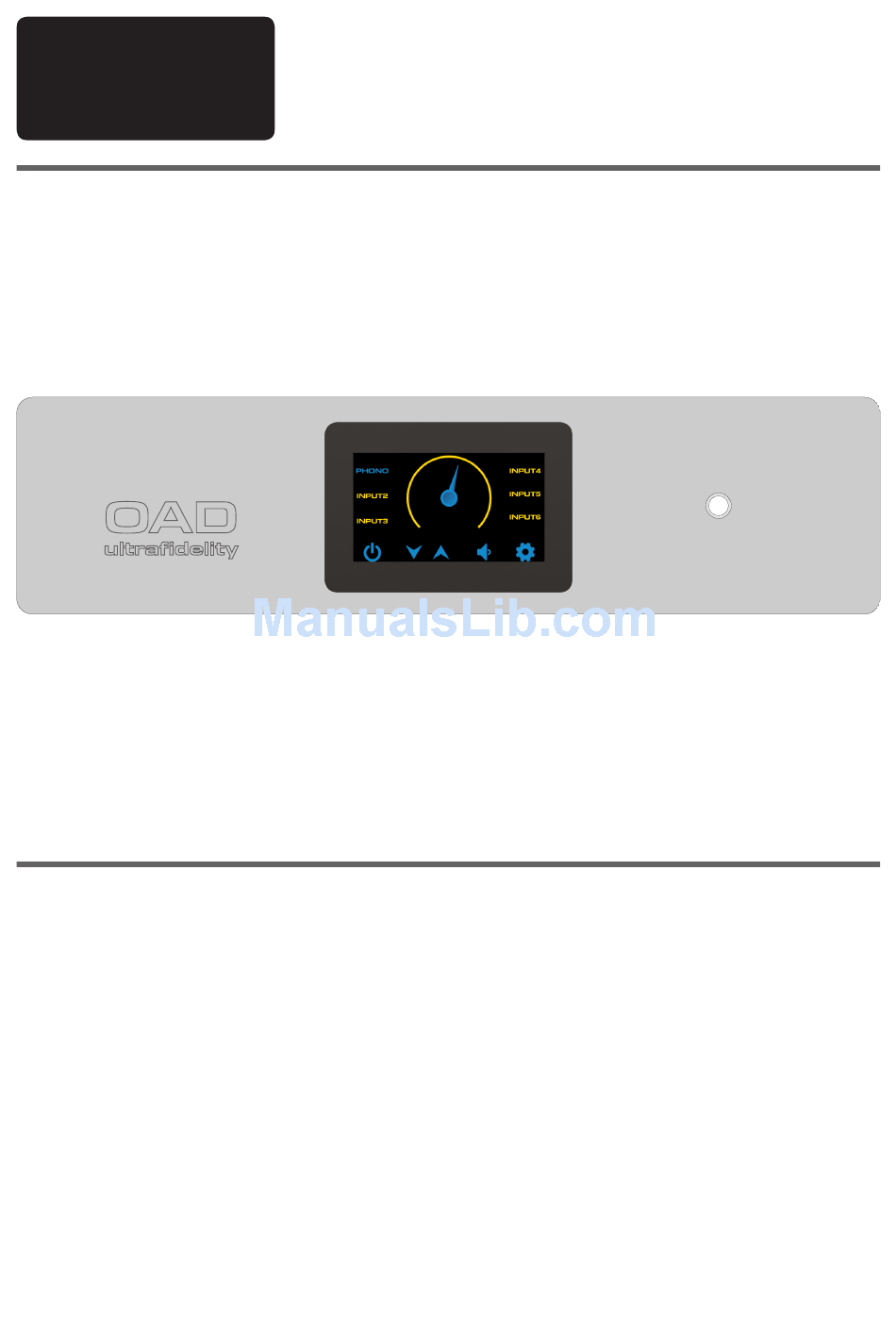

  • Page 1 Ultrafidelity Stereo Control Preamplifier Owner’s Manual...

  • Page 2: Table Of Contents

    Navigating the CP1 features and making changes ........

  • Page 3: Introduction

    This unit is in standby mode when not on. For continued protection against fire hazard, Thank you for choosing the CP1 to be a part of replace the fuse only with the same type and your high performance music listening system.

  • Page 4: Identification Of Connections & Controls

    30 sec will be ready to play. • If you do not intend to use the CP1 for long periods of time (such as when on holidays), switch off (0) the POWER switch. With POWER switched off, neither the front touch panel display (Standby) button nor the remote control’s power button can activate the CP1.

  • Page 5: Navigating The Cp1 Features And Making Changes

    Infrared Sensor Navigating the CP1 features and making changes Use the CP1 remote control or touch panel display icons to select sources, and to navigate through the CP1 features and access to other functions. Note: Images show CP1 with optional phono card installed.
  • Page 6 CP1 to switch ON from standby mode. • Pressing Standby button on touch panel display or standby button on remote control again switches back CP1 to standby mode. • The Standby button on Touch Panel Display or remote control cannot activate the CP1 with the rear panel POWER switched off.
  • Page 7 FUNCTION TOUCH PANEL DISPLAY Settings Menu The CP1 has the ability to learn codes from any Infra Red (IR) Remote Control Source selection, Volume Up, Volume Down, Mute, Next Source, Previous Source and Standby can be controlled from any remote control by simply touching on the desired selection to be changed and then pressing the button on the remote control.
  • Page 8 FUNCTION TOUCH PANEL DISPLAY Display Settings The home screen of the Touch Panel Display can be set to time out (in 10 sec intervals) or to stay on permanently. To adjust timeout touch the ‘+’ for longer time or ‘-’ for less time. The Touch Panel Display has 15 levels of brightness.

  • Page 9: Line Stage Specifications

    In the unlikely event that technical service beyond the ability of the importer is required, OAD Ultrafidelity will fulfil the terms and conditions of the Limited Warranty. Such product must be returned at the purchaser’s expense to the OAD Ultrafidelity factory, along with a photocopy of the dated purchase receipt for the product, a written description of the problem(s) encountered, and any information necessary for return shipment.

  • Page 10: Cp1 With Phono Card Installed

    The gain control attenuates the overall gain of the phono card stage in such a way that when the gain is reduced, the noise levels seen at the output of the CP1 are reduced proportionally. In this way, there is no penalty in selecting one gain setting over another.

  • Page 11: Moving Coil Settings

    Depending on the output voltage of your MC cartridge, you may need to adjust DIP switch 5 (G). Up will set the phono card to 71dB and down will set the gain to 61dB. For most MC cartridges, the higher gain setting will be necessary to achieve normal listening levels.
  • Page 12 ultrafidelity www.openaudiodesigns.com...
