usinG your razer krait™

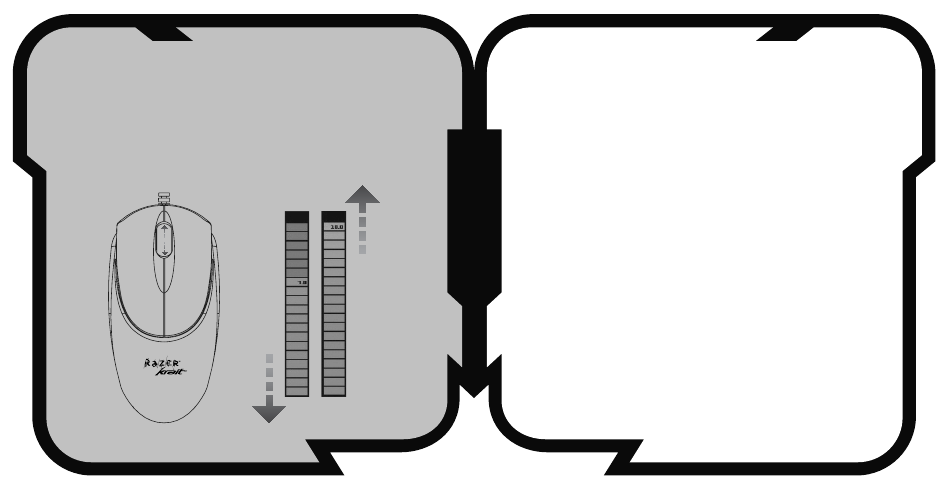

ON-THE-FLY SENSITIVITY ™
If a button has been assigned to "On-The-Fly Sensitivity
and moving the scroll wheel will produce a bar on the lower right hand corner of your
screen, allowing you to dynamically adjust your sensitivity settings in the application.
This feature requires the driver to be installed.
12
|
For Gamers. by Gamers
tm
", pressing the assigned button
™
advanced settinGs Guide
Sensitivity
Mouse sensitivity is an internal filter of the driver . The
maximum sensitivity setting of 10 is unfiltered. Each
incremental stop or setting is a 10% decrease, e.g. 1 setting
will decrease mouse pointer input to 10% (i.e. a linear graph).
Acceleration
Acceleration is an internal filter of the driver, and is primarily a
legacy option for low dpi mice users. With acceleration
enabled, the faster you swipe the mouse, additional movement
is added. Windows XP has acceleration turned on by default as
a convenience for users assuming that everyone will have
400dpi mice, but this will likely be a hindrance to most gamers
and precision users who require greater accuracy. The
'acceleration off' option (default) turns off internal acceleration
only and does not affect Windows XP acceleration, which can
be turned off via the Control Panel, Mouse, Pointer Options,
and unselecting 'Enhance Pointer Precision'.
Windows Pointer Speed
Pointer speed is the Windows implementation of sensitivity.
In Windows XP, a setting of '5' means there is no filtering
(default). This bar is included as a convenience.
DPI Switcher - Resolution
Resolution is how many counts per inch of movement that is
sent by the mouse hardware to the OS. e.g. 400dpi means a
movement of one inch will result in 400 counts of movement.
Without any of the above filters operating, this will result in
400 pixels of movement on the screen.
Independent X and Y-axis Settings
You can preset independent X-axis (sensitivity movements
side to side) and Y-axis (sensitivity movements up and down).
When this feature is enabled you will see a new on-the-fly
interface bar when enacted on their screen that allows
further sensitivity adjustments.
saFety and maintenance
SAFETY GUIDELINES
In order to achieve maximum safety while using your
mouse, adopt the following guidelines:
1. Avoid looking directly into the infrared optical beam of
your mouse or pointing the beam in any one else's eye.
Note that the infrared optical beam is NOT visible to the
naked human eye and is set on an always on mode.
2. Should you have trouble operating the mouse properly
and troubleshooting does not work, unplug the device and
contact the RazerTM hotline or go to www.razerzone.com
for support. Do not attempt to service or fix the device
yourself at any time.
3. Do not take apart the mouse (doing so will also void your
warranty) and do not attempt to service it yourself or
operate it under abnormal current loads.
4. Keep your mouse away from liquid, humidity or moisture.
Operate your mouse only within the specified temperature
range of 0˚C(32˚F) to 40˚C(104˚F). Should you operate it
in a temperature that is beyond this range, unplug and
switch off the device in order to let the temperature
stabilize within the optimal temperature range.
COMFORT
Here are some tips to ensure that you are comfortable
while using your mouse. Research has shown that long
periods of repetitive motion, improper positioning of your
computer peripherals, incorrect body position, and poor
habits may be associated with physical discomfort and
injury to nerves, tendons, and muscles. Please follow these
guidelines to ensure comfortable use of your mouse and
avoid injury.
1. Position your keyboard and monitor directly in front of
you with your mouse next to it. Place your elbows next
to your side, not too far away and your mouse within
easy reach.
2. Adjust the height of your chair and table so that the
keyboard and mouse are at or below elbow height.
3. Keep your feet well supported, posture straight and
your shoulders relaxed.
4. During gameplay, relax your wrist and keep it straight. If
you do the same tasks with your hands repeatedly, try not
to bend, extend or twist your hands for long periods.
5. Do not rest your wrists on hard surfaces for long periods.
Use a wrist support such as Razer's gel-filled eXactRest™
or a soft pad like the Razer Mantis™ (we highly
recommend the Razer Mantis™ Control for RTS and
MMORPG) to support your wrist while gaming.
6. Customize the buttons on your mouse to suit your style of
gaming in order to minimize repetitive or awkward
motions while gaming.
www. raz erzone.com |
13
