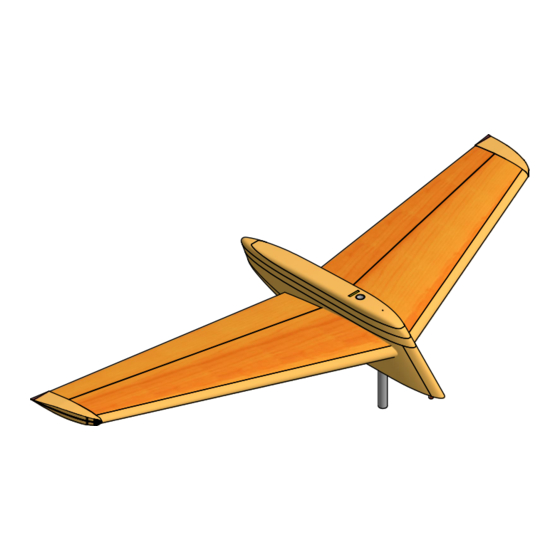

Summary of Contents for KEiro PC 24

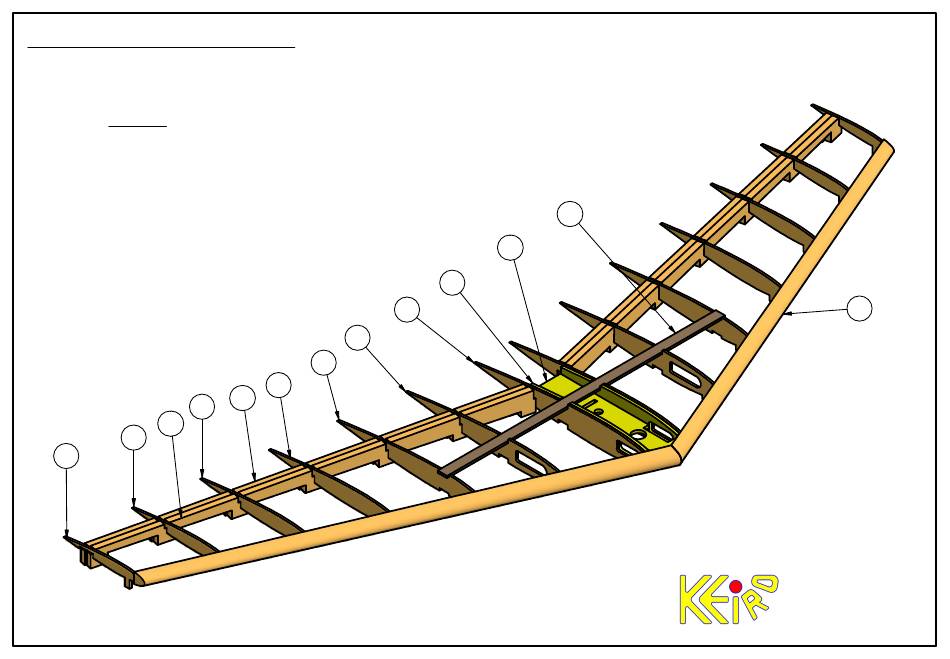

- Page 1 Building instructions elevator step 1 rib frame assemblage on the plan-sheet CAUTION: don't glue together H24 and H25 That's the hinge line. PC 24...
- Page 2 Building instructions elevator step 2 upper planking with light balsa 1,5mm thick (H15) before, you have to shape H9, H24 and H25 to fit elevator section. planking in one part, movable part of elevator is cut later PC 24...
- Page 3 Building instructions elevator step 3 (let cure planking glue completely before turnig over) install servo-frames H26 and the lower spar H10 cut away all feet and shape all part in form of profile PC 24...
- Page 4 3 parts H29 and H30 servocovers H31 and horns H38 separate movable part cut through between H24 and H25 hinged on the upper surface (have a look on the fotos in the building section of CD) PC 24...
- Page 5 Building instruction elevator, overview cross section through fixation of elevator tube for screw head (H33) screw M5x50 (H36) tube Aluminium (H34) tube Aluminium (H32) dowel (H39) drive-in nut M5 PC 24...
- Page 6 Building instructions elevator step 5 central pod upper shaped piece to align, slide in H18 ! do not glue ! step 6 central pod assembly PC 24...
- Page 7 Building instructions elevator step 7 mating of central pod and elevator > slide in elevator top down > elevator axis must be parallel to the base plate of the central pod PC 24...
- Page 8 Building instructions elevator step 8 planking of central pod with balsa 1.5mm thick (grain-direction vertical) PC 24...
- Page 9 Building instructions elevator step 9 attach upper shaped piece (step 5) to central pod. Bring into line fillers H37 with rudder PC 24...
- Page 10 Building instructions rudder S15-2 S15-1 S15-3 step 1 PC 24...
- Page 11 Building instructions rudder step 2 before sticking in hinges S22, shape rudder to get a perfect channeling Caution: All hinges axis must be aligned perfectly PC 24...
- Page 12 Building instructions rudder step 3 planking with light balsa 1.5mm thick. carbon tube approx 35mm protruding (= drive axel) bond carbon tube to servo-horn servo-support can be moved downward, when srews are loosened, to unlock from rudder PC 24...
