Model No. DBMX100
Performance / Rendimiento / Prestanda
★Allowance：±5%
Dimensions / Dimensioner （mm）
Voltage
Model No.
(VAC)
DBMX100
110 ~ 120
DBMX100
220 ~ 240
Diann Bao Inc.
www.airmac.com.tw

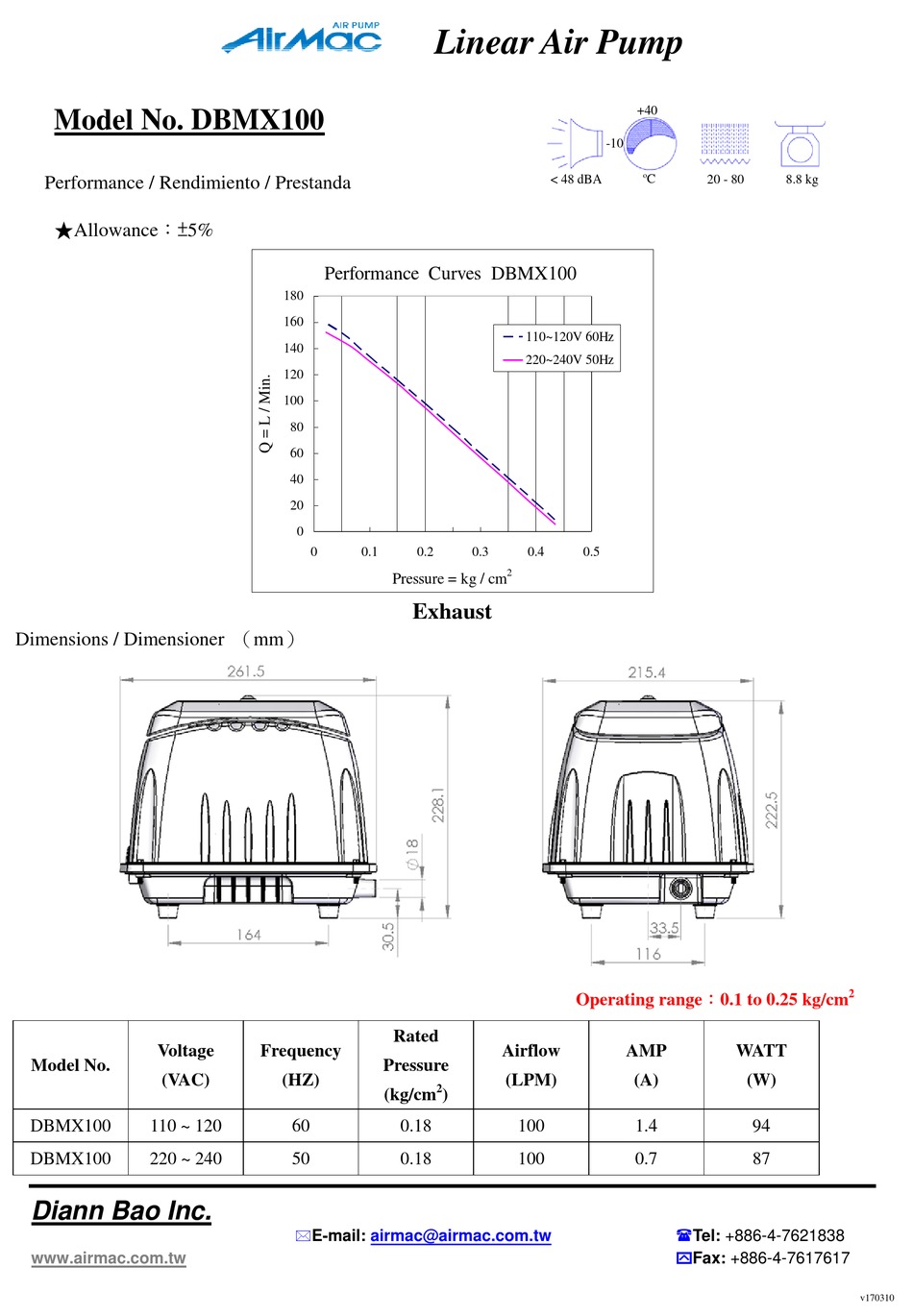

Performance Curves DBMX100
180
160
140
120
100
80
60
40
20
0
0
0.1
0.2
Pressure = kg / cm
Exhaust
Rated
Frequency
Pressure
(HZ)
(kg/cm
60
0.18
50
0.18
E-mail:
airmac@airmac.com.tw
Linear Air Pump
-10
< 48 dBA
110~120V 60Hz
220~240V 50Hz
0.3
0.4
0.5
2
Operating range：0.1 to 0.25 kg/cm
Airflow
(LPM)
2
)
100
100
+40
o
C
20 - 80
8.8 kg
AMP
WATT
(A)
(W)
1.4
94
0.7
87
Tel: +886-4-7621838
Fax: +886-4-7617617
2
