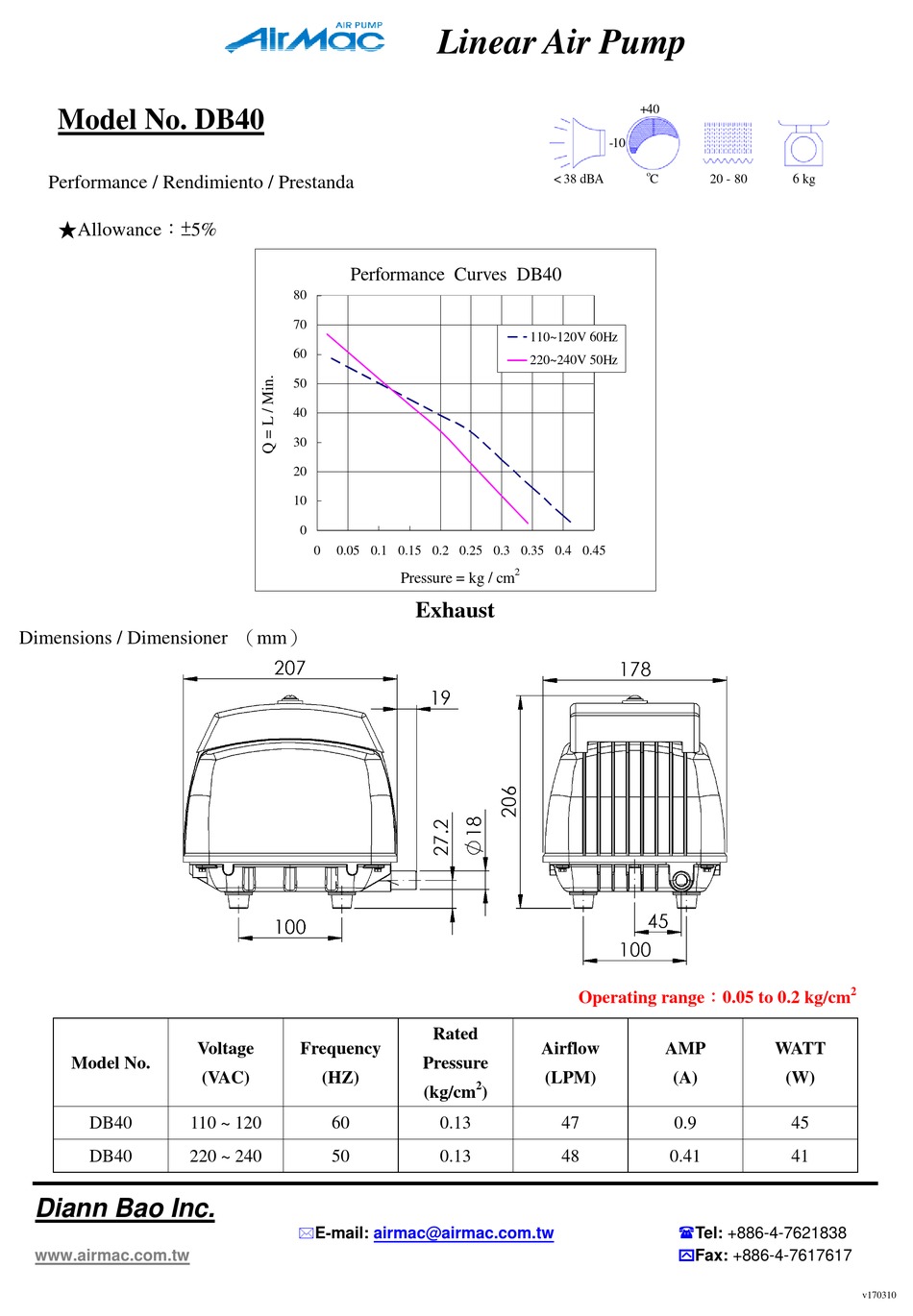

Model No. DB40
Performance / Rendimiento / Prestanda
★Allowance：±5%
Dimensions / Dimensioner （mm）
Model No.
DB40
110 ~ 120
DB40
220 ~ 240
Diann Bao Inc.
www.airmac.com.tw
Performance Curves DB40
80
70
60
50
40
30
20
10
0
0
0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45
Voltage
Frequency
(VAC)
(HZ)
60
50
E-mail:
Linear Air Pump
110~120V 60Hz
220~240V 50Hz
2
Pressure = kg / cm
Exhaust
Rated
Airflow
Pressure
(LPM)
2
(kg/cm
)
0.13
0.13
airmac@airmac.com.tw
+40
-10
o
< 38 dBA
C
20 - 80
Operating range：0.05 to 0.2 kg/cm
AMP
(A)
47
0.9
48
0.41
Tel: +886-4-7621838
Fax: +886-4-7617617
6 kg
2
WATT
(W)
45
41
v170310
