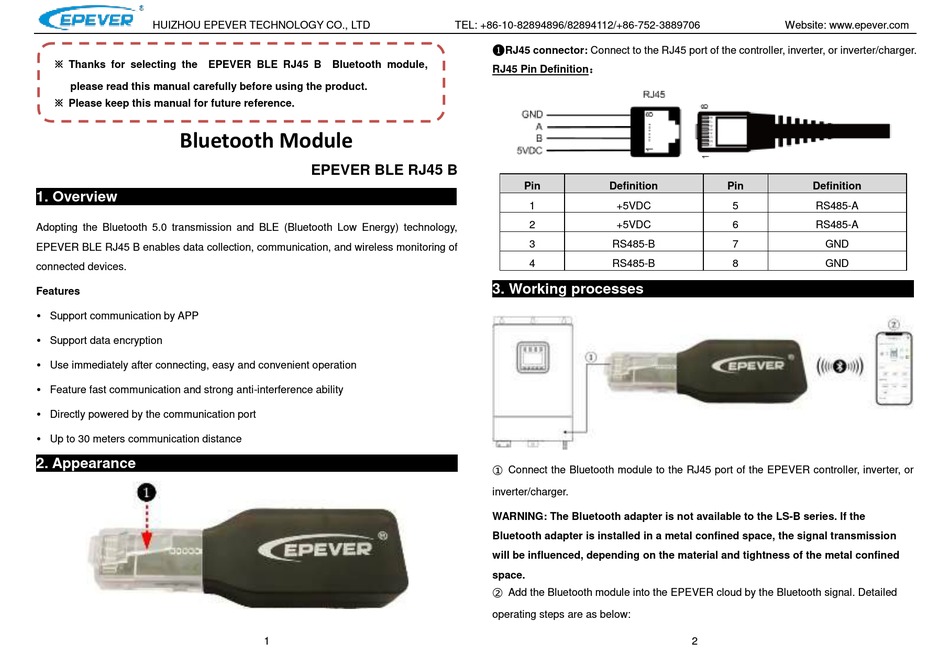

Epever BLE RJ45 B Quick Start Manual

HUIZHOU EPEVER TECHNOLOGY CO., LTD
※ Thanks for selecting the EPEVER BLE RJ45 B Bluetooth module,
please read this manual carefully before using the product.
※ Please keep this manual for future reference.
Bluetooth Module

1. Overview

Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology,
EPEVER BLE RJ45 B enables data collection, communication, and wireless monitoring of
connected devices.
Features
 Support communication by APP
 Support data encryption
 Use immediately after connecting, easy and convenient operation
 Feature fast communication and strong anti-interference ability
 Directly powered by the communication port
 Up to 30 meters communication distance

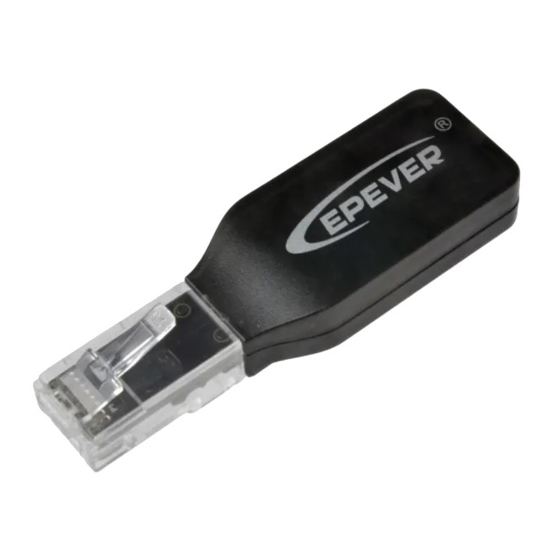

2. Appearance

EPEVER BLE RJ45 B
1
TEL: +86-10-82894896/82894112/+86-752-3889706
❶RJ45 connector: Connect to the RJ45 port of the controller, inverter, or inverter/charger.
RJ45 Pin Definition：
Pin Definition
1 +5VDC
2 +5VDC
3 RS485-B
4 RS485-B

3. Working processes

① Connect the Bluetooth module to the RJ45 port of the EPEVER controller, inverter, or
inverter/charger.
WARNING: The Bluetooth adapter is not available to the LS-B series. If the
Bluetooth adapter is installed in a metal confined space, the signal transmission
will be influenced, depending on the material and tightness of the metal confined
space.
② Add the Bluetooth module into the EPEVER cloud by the Bluetooth signal. Detailed
operating steps are as below:
Website: www.epever.com
Pin Definition
5 RS485-A
6 RS485-A
7 GND
8 GND
2
