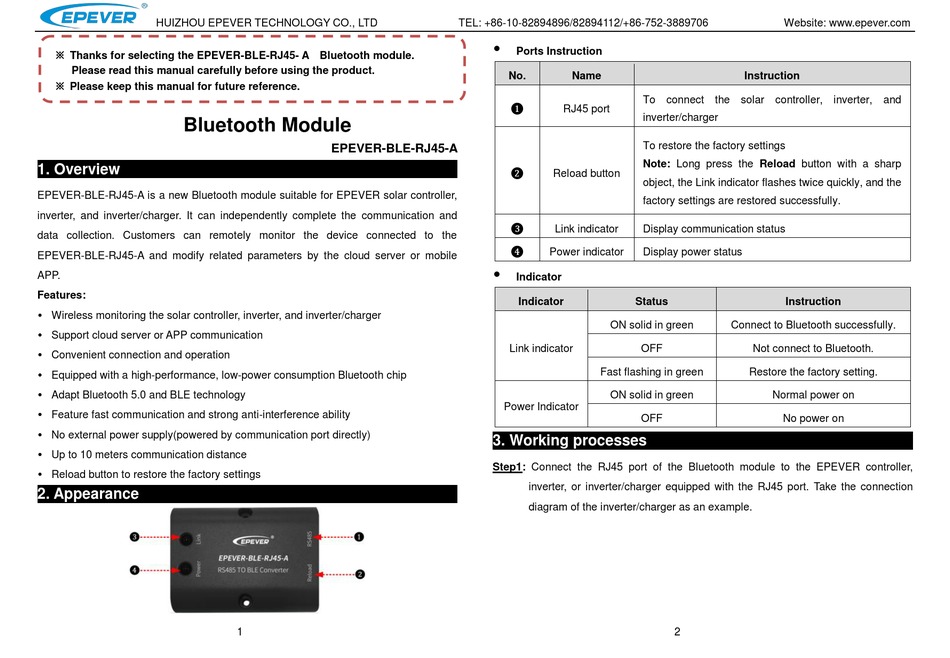

Epever BLE-RJ45-A Quick Start Manual

HUIZHOU EPEVER TECHNOLOGY CO., LTD
※ Thanks for selecting the EPEVER-BLE-RJ45- A Bluetooth module.
Please read this manual carefully before using the product.
※ Please keep this manual for future reference.
Bluetooth Module

1. Overview

EPEVER-BLE-RJ45-A is a new Bluetooth module suitable for EPEVER solar controller,
inverter, and inverter/charger. It can independently complete the communication and
data collection. Customers can remotely monitor the device connected to the
EPEVER-BLE-RJ45-A and modify related parameters by the cloud server or mobile
APP.
Features:
 Wireless monitoring the solar controller, inverter, and inverter/charger
 Support cloud server or APP communication
 Convenient connection and operation
 Equipped with a high-performance, low-power consumption Bluetooth chip
 Adapt Bluetooth 5.0 and BLE technology
 Feature fast communication and strong anti-interference ability
 No external power supply(powered by communication port directly)
 Up to 10 meters communication distance
 Reload button to restore the factory settings

2. Appearance

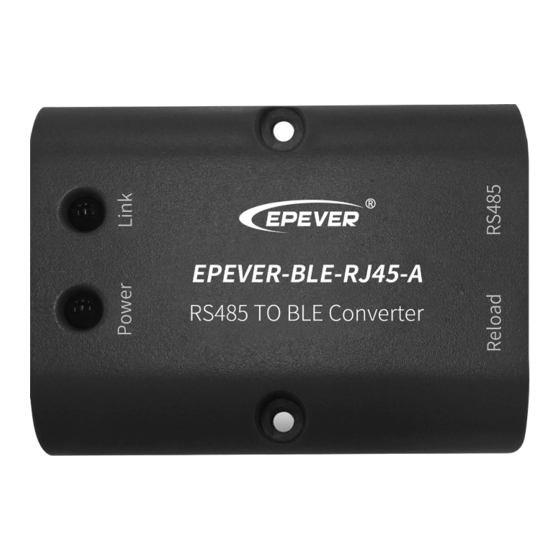

EPEVER-BLE-RJ45-A
1
TEL: +86-10-82894896/82894112/+86-752-3889706

Ports Instruction
No. Name
❶ RJ45 port
❷
Reload button
❸
Link indicator
❹
Power indicator

Indicator
Indicator Status
ON solid in green
Link indicator
Fast flashing in green
ON solid in green
Power Indicator

3. Working processes

Step1: Connect the RJ45 port of the Bluetooth module to the EPEVER controller,
inverter, or inverter/charger equipped with the RJ45 port. Take the connection
diagram of the inverter/charger as an example.
Website: www.epever.com
Instruction
To connect the solar controller, inverter, and
inverter/charger
To restore the factory settings
Note: Long press the Reload button with a sharp
object, the Link indicator flashes twice quickly, and the
factory settings are restored successfully.
Display communication status
Display power status
Instruction
Connect to Bluetooth successfully.
OFF Not connect to Bluetooth.
Restore the factory setting.
Normal power on
OFF No power on
2
