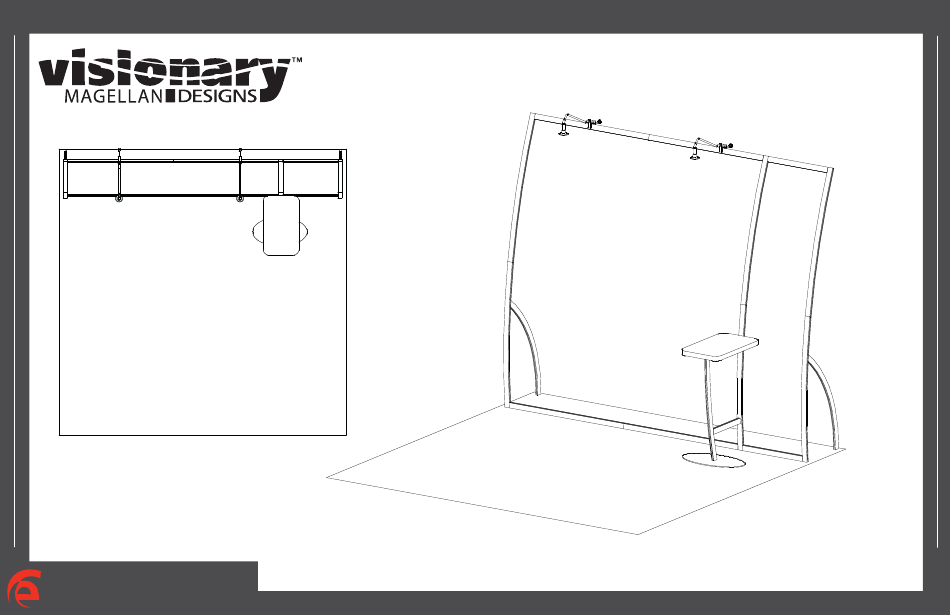

Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
Page 3
Step 1 Order #XXXXX - Backwall Assembly 866.652.2100 Part Number Description Light Connection 48.5”h Lower Curved Extrusion Attach Lights to 48.5”h Upper Curved Extrusion Backwall where 48.5”h Lower Curved Extrusion desired and tighten 48.5”h Upper Curved Extrusion in place. 48.5”h Lower Curved Extrusion 48.5”h Upper Curved Extrusion 7a/7b 44”w Horizontal Extrusion...
Page 4
Step 2 Order #XXXXX - Backwall Workstation Assembly 866.652.2100 Part Number Description Base Plate 37.6”h Curved Vertical Extruaion Oval Flange Plate 18.5”w Horizontal Extrusion 15.69”w Horizontal Extrusion Steps 1) Attach curved vertical [14] to base plate [13], see Base Plate Attachment detail. Counter Top Attachment 2) Attach horizontal extrusions [15 and 16] between curved vertical [14] and backwall vertical [3]...
