Summary of Contents for Visionary MOD-1702

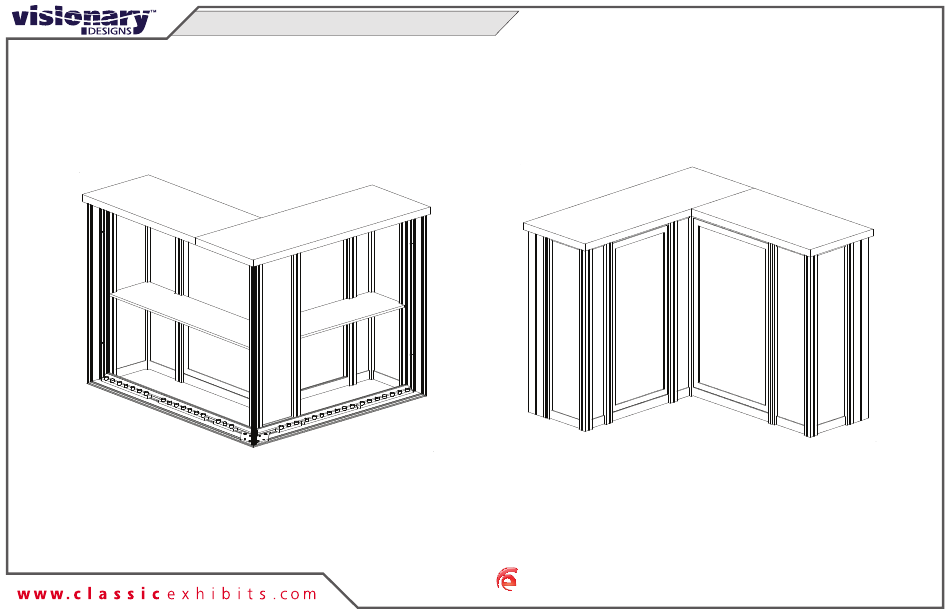

- Page 1 © 2018 Order #XXXXX Modified MOD-1702 General Layout Front View Back View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2018 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2018 Order #XXXXX CEI110 Frame Assembly CEI110 Profile Corner Connection Corner Bracket Assembly 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over Horizontal...
- Page 4 © 2018 Order #XXXXX Case Packing Top View of Each Level Shelf Counter Door Shelf Infills 16 16A Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Graphics Setup Hardware Case 1 of 2...
- Page 5 © 2018 Order #XXXXX Case Packing Top View of Each Level Bracket w/21 Door Counter Top Bracket w/21A Level 1 Level 2 Level 3 Level 4 Level 5 Case 2 of 2...
- Page 6 © 2018 Order #XXXXX Counter Assembly Item Qty. Description Steps: 39.5”h S44 Vertical Extrusion 1) Assemble lower horizontals [7,8,9,10,11] between 39.5”h S44 Vertical Extrusion verticals [1,2,3,4,5,6]. 39.5”h S44 Vertical Extrusion 2) Slide Infills between verticals. 39.5”h S44 Vertical Extrusion 3) Secure Infills with upper horizontals [7A,8A,9A,10A,11A].
- Page 7 © 2018 Order #XXXXX Counter Attachments Item Qty. Description 38.752”h TSP2 Vertical Extrusion Z31 & Bracket Connection Frame to Assembly Attachment 21/21A 4”w Z45 Horizontal Extrusion CEI110 39.5”h CEI110 Vertical Extrusion 23/23A 47.75”w CEI110 Horizontal Extrusion 39.5”h CEI110 Vertical Extrusion CEI110 25/25A 47.75”w CEI110 Horizontal Extrusion...
-
Page 8: Back View
© 2018 Order #XXXXX Counter Attachments (Cont’d) Steps: 1) Connect lighting power cords and attach transformers. See Light to Light Connection & Light to Transformer Connection details. Place Shelves onto pins. See Shelf Pin detail. 3) Place Counter Top on top of assembed counter base. Counter Top Attachment detail.
