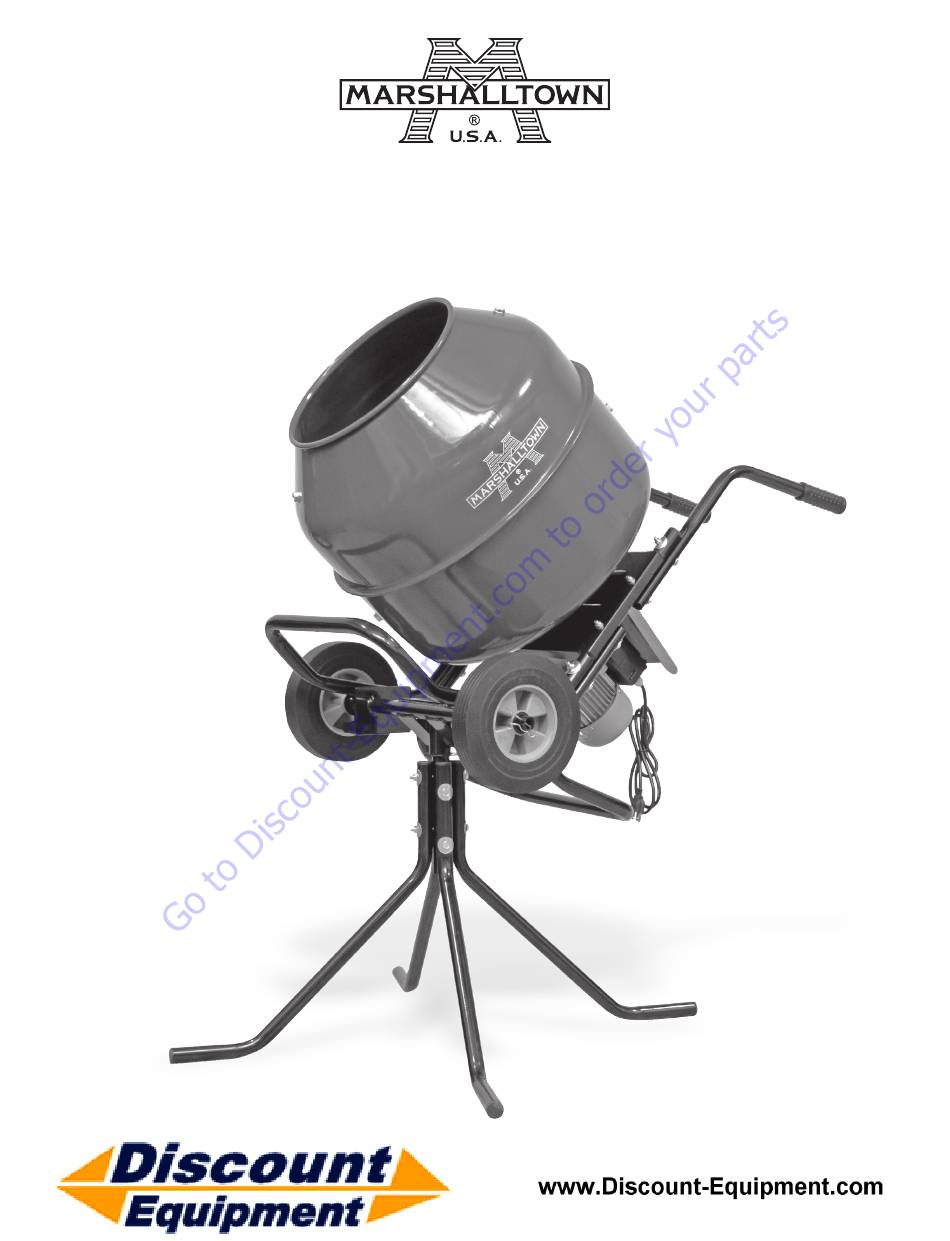

- Page 1 WHEELBARROW MIXER Part# MIX3, MIX3-UK | EDI# 27275, 27276...
- Page 2 TO PURCHASE THIS PRODUCT PLEASE CONTACT US Equipment Financing and Extended Warranties Available Discount-Equipment.com is your online resource for commercial and industrial quality parts and equipment sales. 561-964-4949 visit us on line @ www.discount-equipment.com Select an option below to find your Equipment We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,...
-
Page 3: Table Of Contents
INTRODUCTION The Marshalltown Wheelbarrow mixer is great for the do-it-yourself home project. It allows you to work almost anywhere. The mixer will clear a 30" door and easily fits into an elevator. A sturdy 110-volt or 230-volt electric motor allows you to work indoors without emissions. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS DANGER or WARNING safety signs are located near specific hazards. DANGER! WARNING! General precautions are listed on CAUTION safety signs. IMPORTANT—READ THIS MANUAL BEFORE ASSEMBLING OR OPERATING After referring to the operation manual, if you still require assistance, please contact our customer service department. This operator’s manual has been prepared to provide the information you need to correctly operate and maintain your unit. -
Page 5: Warranty
This product is warranted to the original purchaser only, to be free of defects in material and workmanship under normal use, for one year from purchase date. Marshalltown Company shall, without charge for parts and labor, repair or replace such parts which are found to be defective. -
Page 6: Assembly Guide Parts
ASSEMBLY GUIDE - PARTS 1. Lay out the mixer parts. Refer to page 17 for instructions on reordering parts and mixer maintenance. Paddles (x2) Chassis Wheels (x2) Direct-Drive Motor Motor Hood Draw Bar Drum Pedestal Assembly Handles (x2) PARTS AVAILABLE FOR REPLACEMENT NAME PART# Motor Assembly... - Page 7 ASSEMBLY GUIDE - HARDWARE 2. Lay out all hardware Refer to page 17 for instructions on reordering parts and mixer maintenance. M8 x 70mm Hex Bolts (x2) M8 x 70mm Hex Bolts (x2) M8 x 70mm Hex Bolts (x2) M8 Curved Washers (x2) M8 Curved Washers (x4) M8 Curved Washers (x2) M8 Lock Nuts (x2)
- Page 8 ASSEMBLY GUIDE - FRAME (PARTS A & B) 3. Connect draw bar to the back of the drum frame. Hardware required: SETS 1A & 1B Use hardware 1A on top, use 1B on bottom. Fasten using a 14mm wrench and 14mm socket. Finished frame.
- Page 9 ASSEMBLY GUIDE - HANDLES (PARTS C) 4. Connect the handles to the drum frame. Hardware required: SETS 2A & 2B Use hardware 2B on top, 2A on bottom. Fasten using a 14mm wrench and 14mm socket. Use hardware 2B on top, 2A on bottom. Fasten using a 14mm wrench and 14mm socket.
- Page 10 ASSEMBLY GUIDE - WHEELS (PARTS D) 5. Connect wheels to the drum frame assembly. Hardware required: SET 3 Insert wheel and fasten with cotter pin. (Hardware 3) Repeat step for other side. Finished frame with wheels. 9 of 18 WS#1213...
- Page 11 ASSEMBLY GUIDE - ATTACH MOTOR (PART E) 6. Mount engine on the drum frame assembly. Hardware required: (Hardware included on motor assembly) Remove nuts and washers from motor studs. Install with black box facing up. Insert washers onto studs between nuts and frame, and Finished frame with motor.
- Page 12 ASSEMBLY GUIDE - DRUM BLADES (PARTS F & G) 7. Connect drum blades to drum interior. Hardware required: SET 4 Insert bolts through drum. Short Long Place rubber washers onto bolts. Install paddles with short side facing outward, towards top of the drum.
- Page 13 ASSEMBLY GUIDE - ATTACH DRUM 8. Connect drum to output drive shaft (align drum over set screw) Hardware required: SET 5 NOTE: Assembly is easier with frame laying flat as shown. Align set screw using a standard screwdriver, perpendicular to mixer frame. See Inset A Drum will straddle set screw and fit tightly on motor Inset A spindle.
- Page 14 ASSEMBLY GUIDE - MOTOR HOOD (PART H) 9. Attach hood to drum frame assembly. Hardware required: SET 6 Put screws through mounting holes. Mount to mixer frame. Use a Phillips screwdriver and 10mm wrench to tighten. Finished mixer. 13 of 18 WS#1213...
- Page 15 ASSEMBLY GUIDE - PEDESTAL (PARTS I) 10. Assemble Pedestal. Parts Hardware Required: SET 7 Put screws through corresponding mounting holes, attach two legs as shown. Note: Two legs have high mounting holes, and two have lower mounting holes. Tighten hardware using a 14mm wrench and 14mm socket. Attach remaining legs.
- Page 16 ASSEMBLY GUIDE - MIXER TO PEDESTAL 11. Mount mixer to pedestal Lay mixer flat. Lift mixer slightly and insert pedestal. Grab mixer handles and carefully lift mixer into the upright Completed mixer with pedestal. position. 15 of 18 WS#1213...
-
Page 17: Operation
OPERATION GETTING READY FOR MIXING Lay out forms for your concrete floor, patio, driveway, sidewalk, etc. The quality of concrete is directly related to the quality of the cement paste. The quality of the paste, in turn, is directly related to the amount of water mixed with the cement. For a given amount of cement, as the amount of mixing water is reduced, the strength of the paste increases, making the concrete stronger and more durable. -
Page 18: Issues & Resolution
ISSUE RESOLUTION There are parts missing in the package. Contact MARSHALLTOWN customer service at (800)888-0127. Review step 8 (page 12) in the operations manual to ensure that the drum is straddling the set screw appropriately. Make sure there is a The drum wobbles and is unstable. - Page 19 Discount-Equipment.com is your online resource for quality parts & equipment. Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101 Need parts? Click on this link: http://www.discount-equipment.com/category/5443-parts/ choose one of the options to help get the right parts and equipment you are looking for.
