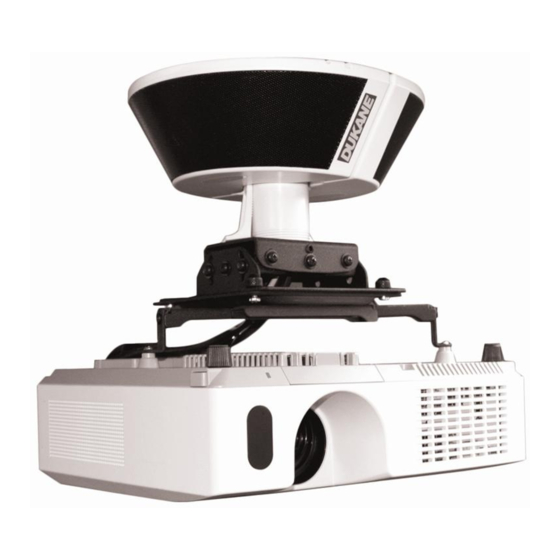

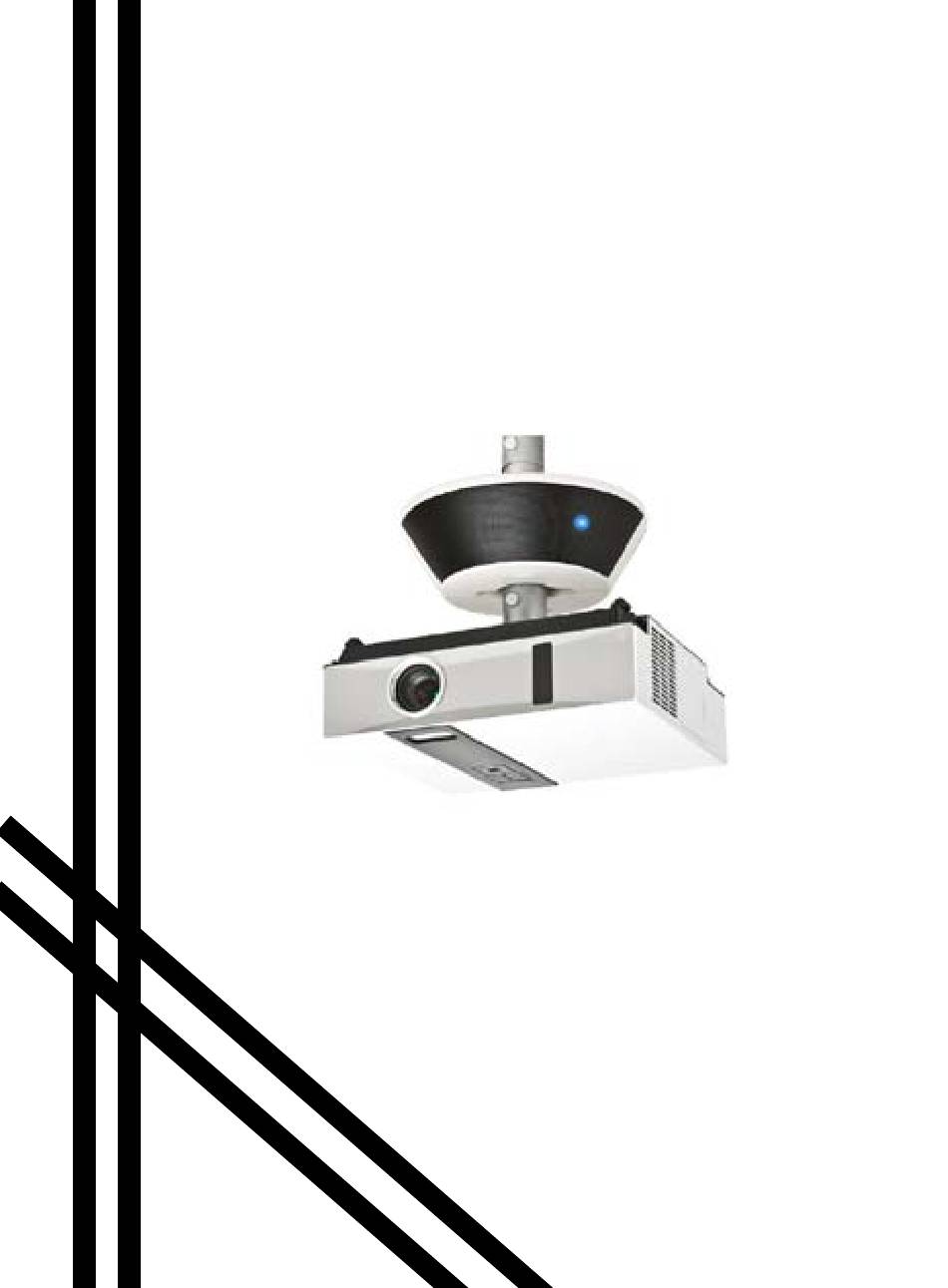

- Page 1 Model WMIC2B Wireless Sound System User’s Guide DUKANE iHear 14-00033 v00...
- Page 3 • Receiver Amp: Electronic equipment specification: – Input: DC19V Rating: 110V - 240V • MIC Tx: Electronic equipment specification: Input: USB DC 5V to charge the transmitter. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 Fax 630-584-5156 avservice@dukane.com...
- Page 4 Danger 3. Don’t modify this product in any way. Such action could cause a fire, electric shock, serious personal injuries or product damage. Only a distributor or service center can provide maintenance and repair. 4. Please keep away from flammable or explosive gases when using this product.
- Page 5 Warning 1. For safety reasons, please keep the product and accessories out of reach of small children or animals to avoid accidents such as: – swallowing the product or accessories. If this happens please see a doctor immediately. – Some small parts of product could cause personal injuries. 2.
- Page 6 Speaker – Receiver Guide Foam Lanyard Collar Clip Mic Transmitter...
- Page 7 Instruction (to other module) Signal lights Mic Transmitter...
- Page 8 Special note: The center button on the mic transmitter switches the audio between the AUDIO IN port and the MIC IN port. This could be the reason that the Mic is not heard.
-
Page 10: Installation
Installation Put the foam pads on the inner side of speaker. Connect main module and auxiliary module by metal hooks and locate on the pole. -
Page 11: Audio Source Connection
Audio Source Connection Connect main engine and Connect main module and auxiliary engine by audio cable. auxiliary module audio cables. Audio Cable Connect main module and projector by audio cable. Connec main engine and projector by audio cable. -
Page 12: Power Connection
Power Connection adapter power cord power cord Charging the MIC TRANSMITTER Battery The miniature MIC TRANSMITTER is charged using the cable with the USB connector and the small DC power connector pin which inserts into the top of the TRANSMITTER. The USB end is plugged into a powered USB port such as on a computer. - Page 13 Connecting Components Small Power Adapter Collar Mic Clip the collar mic to the necktie or collar and point the mic toward the throat.
- Page 14 (seeking) Matching Procedure 1. Turn on the mic, frequency matching procedure needs 3 seconds. 2. After the mic Red/Blue LED’s are alternately flashing a “Beep - Beep” sound will be heard. This means the mic and speaker–receiver are paired (matched). 3.
- Page 15 Mode Setup – Settings for the AUX AUDIO INPUT on the Speaker There are 4 modes of operation for the AUX AUDIO input on the top of the speaker unit. This Input is located next to the DC INPUT. The audio entering this port can be set to operate in one of 4 ways.
-
Page 16: Troubleshooting
Special note: The center button on the mic transmitter switches the audio between the AUDIO IN port and the MIC IN port. This could be the reason that the Mic is not heard. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174...
