WMIC2B QUICK START GUIDE
For initial setup the speaker system can be assembled and tested on a table top. Then install on the pole.
Clip-on MIC
4.
Audio Cable connections
Optional Audio cable from projec-
tor output to speaker AUX AUDIO
INPUT
14-00055-01
All manuals and user guides at all-guides.com
4.Connect main speaker section
4.
Connect the Audio cable be-
to other section with audio cable
tween the 2 speaker sections.
Projector
Wireless Mic System
Installing on a pole
Place the foam pads on the inside of the speaker.
Connect the 2 halves of the speaker around the
pole using the metal hooks. Insert a wedge to
hold the speaker in place if necessary.
Speaker top view connections
5.
Connect the DC Power cable to the speaker top. Then
plug in the power adapter to the 115VAC. A blue LED will
be visible behind the black speaker grill.
Page 1 of 2
Enlarged
view of foam
pads
AUX OUT TO
OTHER
SPEAKER HALF
DC POWER IN
AUX AUDIO INPUT
(OPTIONAL) FROM
PROJECTOR
Advertisement
Table of Contents
Related Manuals for Dukane WMIC2B
Summary of Contents for Dukane WMIC2B

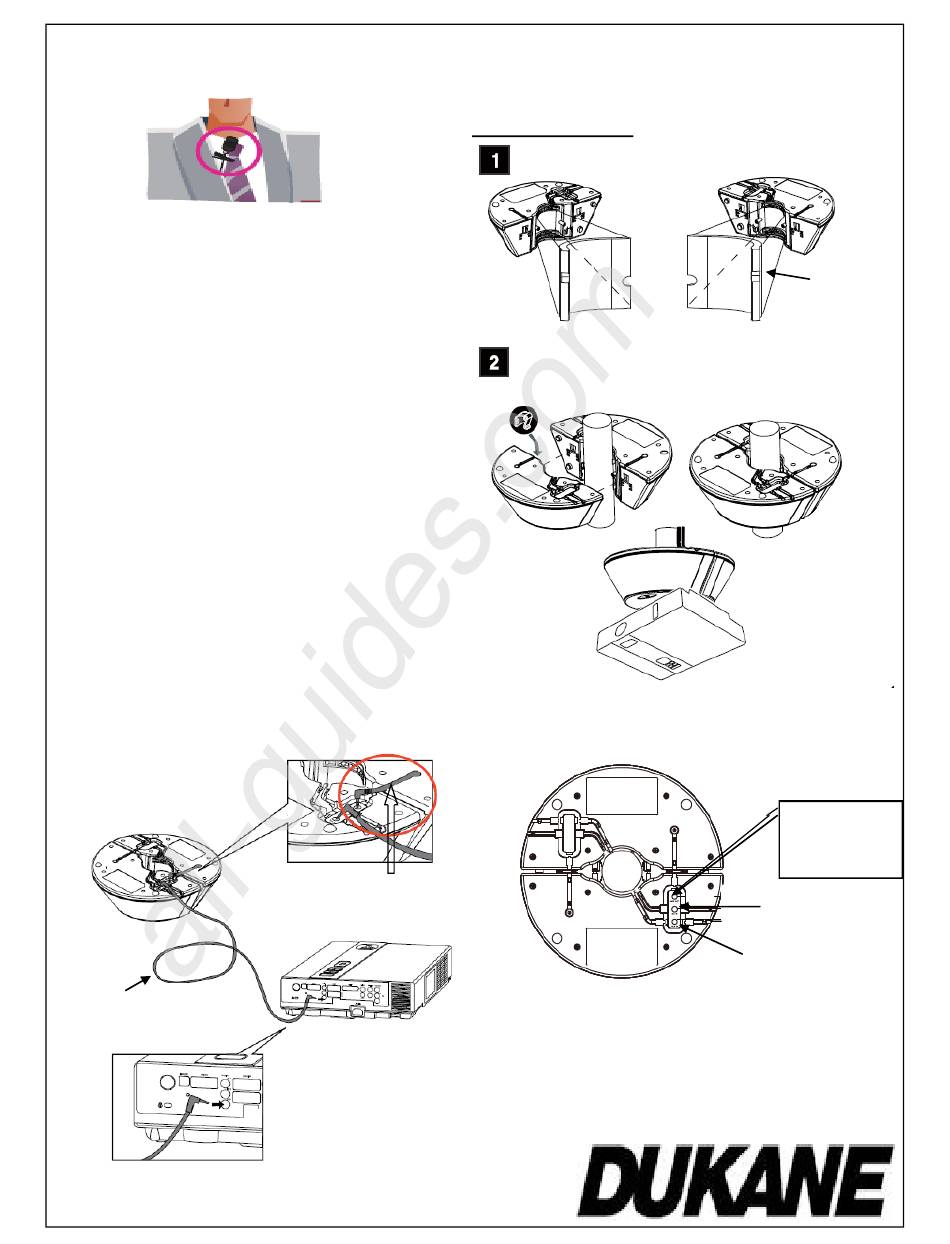

- Page 1 All manuals and user guides at all-guides.com WMIC2B QUICK START GUIDE Wireless Mic System Page 1 of 2 For initial setup the speaker system can be assembled and tested on a table top. Then install on the pole. Installing on a pole Place the foam pads on the inside of the speaker.

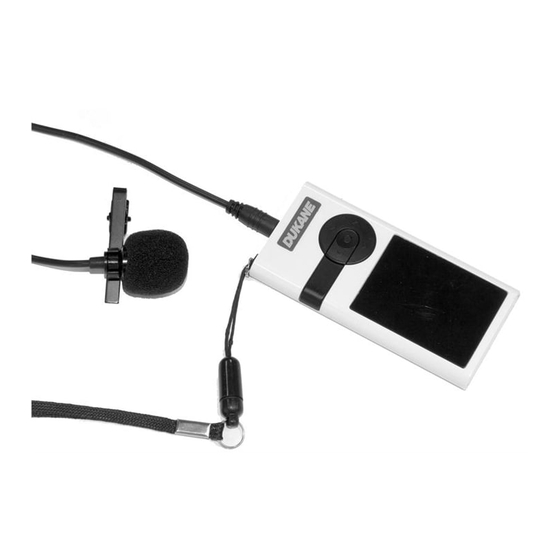

- Page 2 All manuals and user guides at all-guides.com Page 2 of 2 MINIATURE MIC TRANSMITTER ( For charging) Top View Multi-function switch - Top and right side are Volume increase. - Center is switch between Red and Blue LED MIC and Audio Inputs. - Bottom and left side are Volume decrease.
