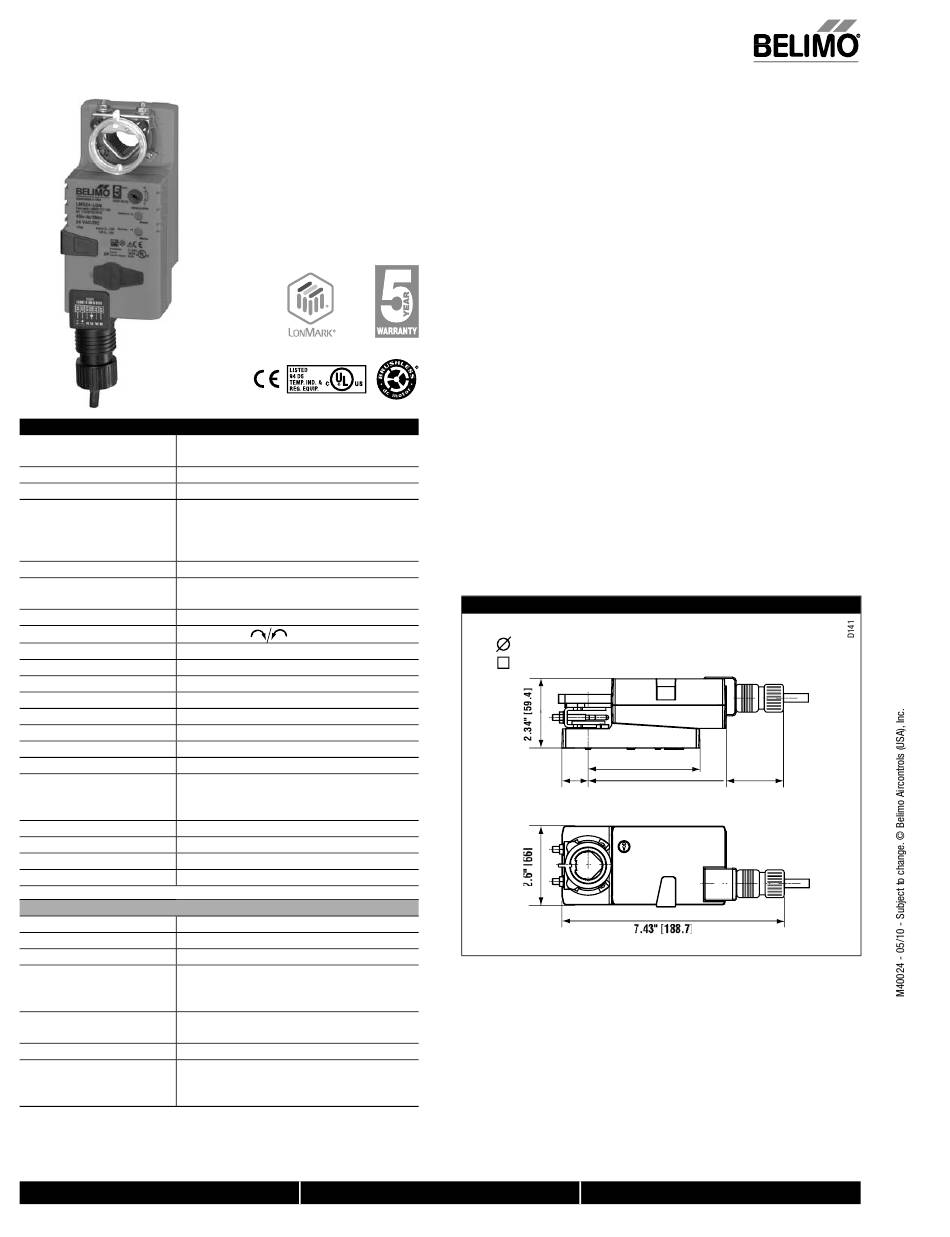

Belimo LonWorks LMX24-LON Quick Start Manual

LMX24-LON
LonWorks ® , Non-Spring Return, 24 V
Technical Data LMX24-LON
Power supply 24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
Power consumption 2.5 W (1.2 W)
Transformer Sizing 5 VA (Class 2 power source)
Electrical connection 18 GA plenum rated cable
1/2" conduit connector
protected NEMA 2 (IP54)
3 ft [1m]
Overload protection electronic throughout 0 to 95° rotation
Angle of rotation max. 95°, adjustable with mechanical stop
electronically variable
Torque 45 in-lb [5 Nm]
Direction of rotation
reversible with
Position indication reflective visual indicator (snap-on)
Manual override external push button
Running time 150 seconds (default)
Humidity 5 to 95% RH non condensing (EN 60730-1)
Ambient temperature -22°F to 122°F [-30°C to 50°C]
Storage temperature -40°F to 176°F [-40°C to 80°C]
Housing NEMA 2, IP54, UL enclosure type 2
Housing material UL94-5VA
Agency listings cULus acc. to UL 60730-1A/-2-14,
CAN/CSA E60730-1:02,
CE acc. to 2004/108/EEC and 2006/95/EC
Noise level <35dB(A)
Servicing maintenance free
Quality standard ISO 9001
Weight 1.5 lbs [0.7 kg]
LonWorks ®
Certified according to LonMARK
Processor Neuron 3120
Transceiver FTT-10A, compatible with LPT-10
Functional profile according to LonMARK
actuator object #8110
open loop sensor object #1
LNS plug-in for actuator/sensor can be run with any LNS based integration
tool (min. for LNS 3.x)
Service button and status LED according to LonMARK
Conductors, cables conductor lengths, cable specifications and
topology of the LonWorks
the Echelon
LonWorks and LonMARK © 2007-2009 LonMark International
800-543-9038 USA
303
switch
®
3.3
®
Damper
® guidelines
® network according to
®
directives
866-805-7089 CANADA
Torque min. 45 in-lb for control of damper surfaces up to 11 sq ft.
Application
Direct coupled actuators for direct link to LonWorks network. Actuators are easily
installed by direct shaft mounting on air dampers in ventilation and air conditioning
systems. Actuator can be controlled by any compatible LON controller or automation
system.
For proportional modulation of dampers in HVAC systems. Actuator sizing should be
done in accordance with the damper manufacturer's specifications.
The actuator is mounted directly to a damper shaft from 1/4" up to 5/8" in diameter
by means of its universal clamp. Shafts up to 3/4" diameter can be accommodated by
an accessory clamp.
Operation
The actuator is not provided with and does not require any limit switches, but is
electronically protected against overload. The anti-rotation strap supplied with the
actuator will prevent lateral movement.
The LMX24-LON series provides 95° of rotation and a visual indicator indicates
position of the actuator. When reaching the damper or actuator end position, the
actuator automatically stops. The gears can be manually disengaged with a button on
the actuator cover.
The LMX24-LON actuators use a brushless DC motor, which is controlled by an
Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the
actuator's rotation and provides a digital rotation sensing (DRS) function to prevent
damage to the actuator in a stall condition. Power consumption is reduced in holding
mode.
Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto
the actuator body for signaling and switching functions.
Dimensions (Inches [mm])
1/4" to 3/4" [6 to 20]
5/16" to 3/4" [8 to 26]
3.47" [88]
4.57" [116]
0.86" [22]
2" [50.8]
