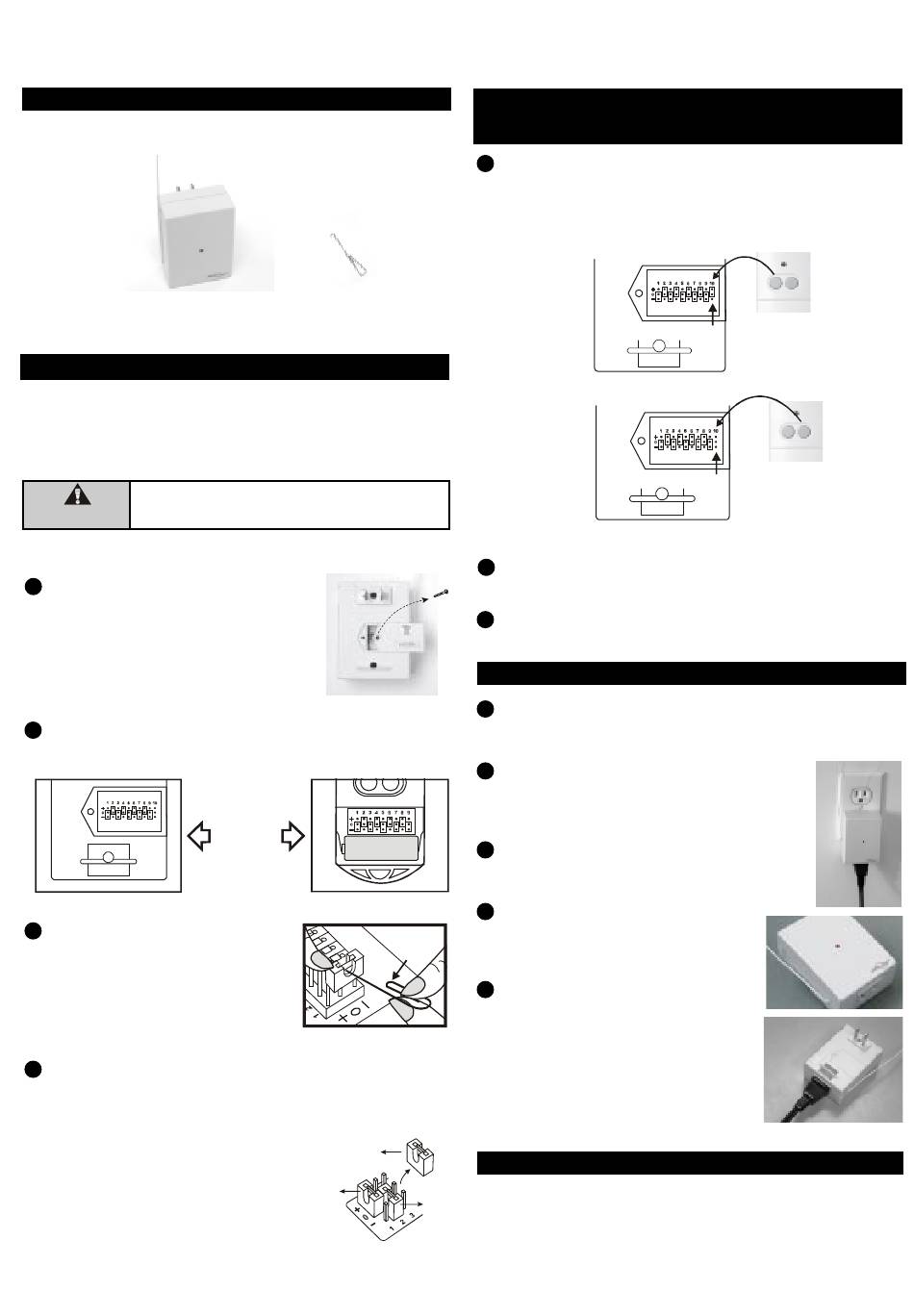

SkylinkHome Houselink SW-318R Quick Start Manual

Houselink ® Wireless Switch
Receiver

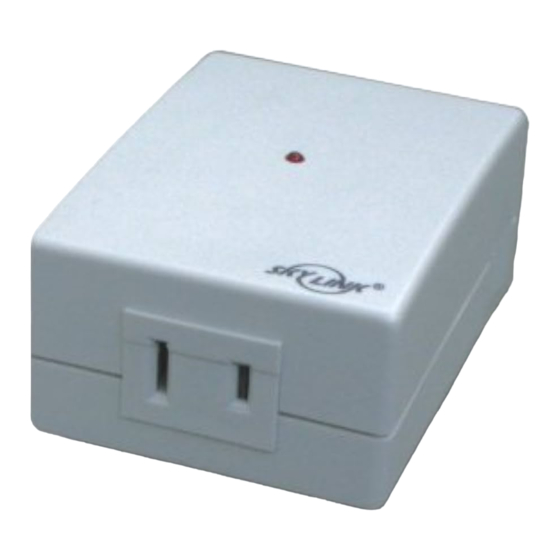

1. INTRODUCTION
In this package, you will find a wireless switch receiver and a clip.
Wireless Switch
Receiver
2. SET UP THE OPERATION CODE FOR RECEIVER
It is recommended to randomly set the operation code for your
remote control to avoid interference from other devices. Follow
the instructions below to change the operation code.
Remove the receiver from the electrical outlet before
changing the code.
WARNING
1
Remove the screw that holds
the connector cover, and pry
off the cover.
2
You will see 10 connectors. For connectors "1" to "9", the
settings must match with those of the transmitter.
3 You can randomly remove some of
these connectors, leaving some
connectors in place.
A connector can be removed with
the clip, as shown.
4
If the connector is placed on the top and middle posts, that
column is set on " + " . If the connector is placed on the middle
and bottom posts, that column is set on " - ". If the connector
is removed completely, (not placed on any posts), it is set to " 0 ".
(see diagram for examples of how
to set a column to the three different
positions). When removing a con-
nector to set a column to "0" posi-
tion, save the connector in case you
change the code at a later date.
Model SW-318R
Clip
Connectors
1 to 9 are
the same.
BATTERY
' '
0
'+'
2. SET UP THE OPERATION CODE FOR BOTH
TRANSMITTER AND RECEIVER (CONT)
5
For connector "10" on the receiver, set the connector on "+" if
you are using button "1" to control this receiver. If you are
planning to use button "2" to control this receiver, you need to
remove this connector. See diagram below.
RECEIVER
RECEIVER
6
Put the cover and screw back onto the receiver. Plug the
receiver into an electrical outlet.
7
Put the battery cover back onto the transmitter.
1 Plug the receiver into a powered, 120VAC electrical outlet inside
your house. (Note: This receiver is designed to be used indoor
only. Do not use this receiver in an outdoor environment.)
2
Once the receiver is plugged into an
electrical outlet, the red LED on the
front of the unit will be "on" indicating
the unit is in standby mode.
3
Plug in the light fixture or small
appliance that you would like to
control into the receiver, as shown.
4
If there is a power switch on the
plugged in light fixture or small
appliance, please turn it on. The
Clip
receiver is ready to be activated.
5
Pressing the appropriate button will
turn on the plugged in device and
the red LED on the front will flash.
(Caution: When the red LED on the
unit is flashing, that means output
outlet is powered. Do not disconnect/
connect devices from/to the receiver's
outlet when the red LED is flashing.)
To activate the receiver, simply press the appropriate button on
'-'
the transmitter, it will activate the plugged in device. Pressing it
again will turn off the plugged in device.
TRANSMITTER
Connector 10 set to "+"
Button 1- Left Button
TRANSMITTER
Connector 10 "Removed"
Button 2- Right button
3. INSTALLATION
4. OPERATION
