1. Introduction

Thank you for your purchase of a SkylinkHome

receiver allows you to wirelessly turn on or off, dim and brighten the lighting fixtures.

The Dimmable Receiver Module MD-318 can communicate with up to 8 transmitters so user has the

option to add more transmitters to the system.

The following items are included in this package:

One Dimmable Receiver Module

Screws and Accessories

User's Instructions

CAUTION

Installation is required and enclosed instructions must be followed carefully to all steps and notes. If you

are uncertain or uncomfortable performing this installation, please consult a qualified electrician. This

manual should also be retained for future reference.

1. Turn off power to the circuit at the circuit breaker of the lighting fixture that you plan on Plug-In

Lighting Module.

WARNING:

Failure to turn off power at the circuit breaker can result in electrical shock causing severe or fatal injury.

The Dimmable Receiver Module is designed to operate maximum load of 300W at 120VAC, 60Hz.

2. Follow the diagrams below to install the Dimmable Receiver Module with the 3 wires: Neutral,

Live and Load. Use the provided screws to secure the Dimmable Receiver Module.

3. After all the wires are connected, ensure that all of the wire connectors are attached securely and

there should be no exposed copper wiring. Straighten the antenna.

Model: MD-318

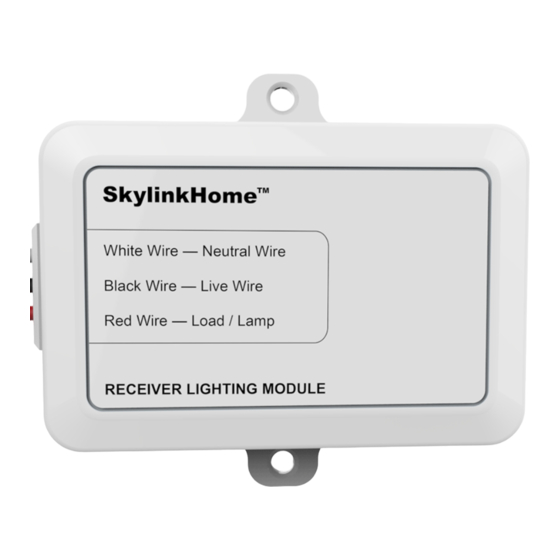

Dimmable Receiver Module, Model MD-318. This

Preliminary Manual

Table of Contents

Do you have a question about the MD-318 and is the answer not in the manual?

Page 1 Dimmable Receiver Module, Model MD-318. This receiver allows you to wirelessly turn on or off, dim and brighten the lighting fixtures. The Dimmable Receiver Module MD-318 can communicate with up to 8 transmitters so user has the option to add more transmitters to the system.
Page 2 4. Secure the MD-318 inside the lighting fixture and install the lighting fixture back to the original configuration. 5. Turn the circuit breaker back on and turn on the wall switch that is used to operate this lighting fixture. 6. The light will be on and you should hear a single beep. The Dimmable Module is installed properly and you can begin programming transmitter(s) to it.
Page 3 Canada L6Y 1J3 - download documents, i.e. user’s instructions Email:support@skylinkhome.com - order Skylink products http://www.skylinkhome.com or if you have difficulty getting products to work, please: ©2014 SKYLINK GROUP 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at support@skylinkhome.com...
