1 LEAP Technologies 1L-PS-041 Installation Manual

1L-PS-041
INSTALLATION MANUAL

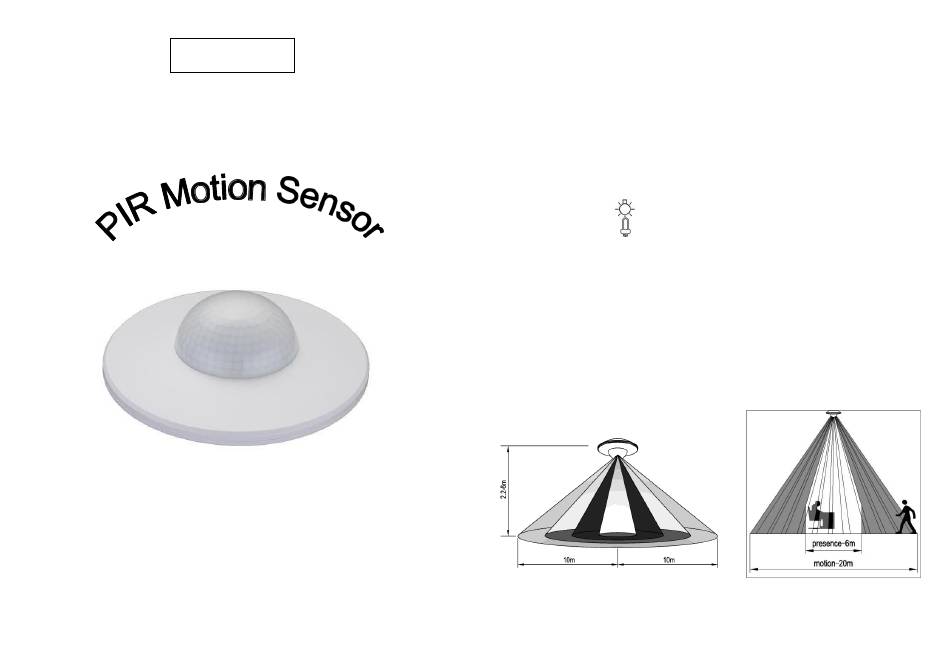

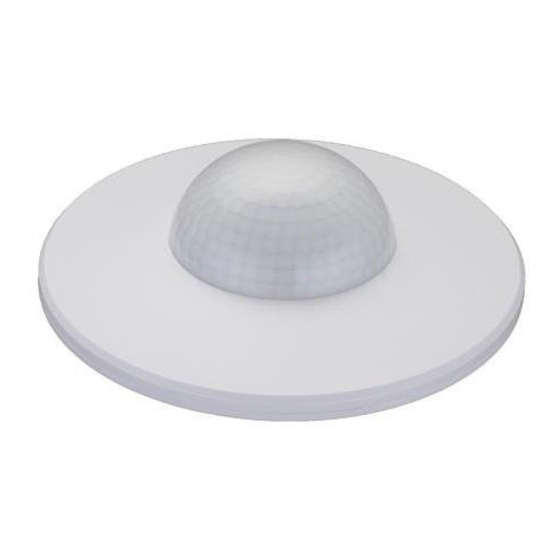

Welcome to use 1L-PS-041 PIR motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from
human as control-signal source and it can start the load at once when one enters detection field. It
can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 220-240V/AC
Power Frequency: 50/60Hz
Ambient Light: <3-2000LUX(adjustable)
Time Delay: Min10sec±3sec
Max30min±2min
Rated Load: Max.2000W
1000W
FUNCTION:
➢
Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can
work in the ambient light less than 3LUX when it is adjusted on the "3" position (min). As for
the adjustment pattern, please refer to the testing pattern.
➢
SENS adjustable: It can be adjusted according to using location. The detection distance of
low sensitivity could be only 3m and high sensitivity could be 20m which fits for large room.
➢
Time-Delay is added continually: When it receives the second induction signals within the
first induction, it will restart to time from the moment.
SENSOR INFORMATION:
Height of installation: 2.2-6m
Detection Range: 360º
Detection Distance: 3-20m (<24℃) adjustable
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 2.2-6m
Detection Motion Speed: 0.6-1.5m/s
Detection Distance: max.20m
