AOC i2757fh Service Manual

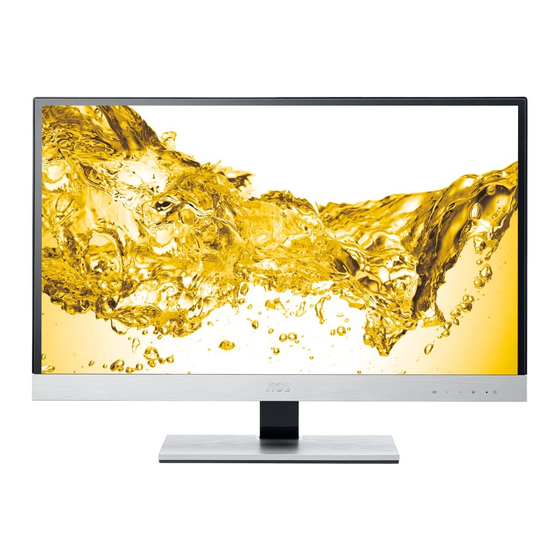

27" lcd color monitor
Hide thumbs Also See for i2757fh:
Table of Contents

Advertisement

Quick Links

Download this manual
27" LCD Color Monitor
I2757FH
Service
Service
Service
Description
Table of Contents.........................................................1
Revision List................................................................2
Important Safety Notice...............................................3
1.Monitor Specification.................................................4
2.LCD Monitor Description.......................................6
3.Operation Instruction...............................................7
3.1.General Instructions.................................................7
3.2.Hot Keys......................................................7
3.3.OSD Setting.......................................................8
4.Input/Output Specification.......................................22
4.1.Input Signal Connector.........................................22
4.2.Factory Preset Display Modes...............................23
4.3.Panel Specification.............................................24
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
All manuals and user guides at all-guides.com

Table of Contents

Page
5.Block Diagram............................................26
6.Schematic.......................................................27
6.1.Main Board....................................................27
6.2.Key Board......................................................34
7.PCB Layout.....................................................35
7.1.Main Board....................................................35
7.2.Key Board....................................................35
8.Maintainability..................................................36
8.2.Trouble Shooting.........................................37
10.Monitor Exploded View.................................43
11.BOM List..................................................45
SAFETY NOTICE
Description
AOC I2757FH
Horizontal Frequency
30-83 KHz
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i2757fh and is the answer not in the manual?

Questions and answers

Related Manuals for AOC i2757fh

Summary of Contents for AOC i2757fh

  • Page 1: Table Of Contents

    All manuals and user guides at all-guides.com 27" LCD Color Monitor AOC I2757FH I2757FH Service Service Service Horizontal Frequency 30-83 KHz Table of Contents Description Page Description Page 5.Block Diagram……..…………....26 Table of Contents..……......……..1 6.Schematic……………........27 Revision List.…........…………..2 6.1.Main Board………...........27 Important Safety Notice.……......……..3 6.2.Key Board...……..........34...

  • Page 2: Revision List

    All manuals and user guides at all-guides.com Revision List Version Release Date Revision History L&T Model Name JUL-19-2012 HFCJHH2MCS5ADNF.LF Initial Release JUL-27-2012 HFCJHH7LCSCADNF.LF Add new model HFCJHH7BCSK2DNF.LF HFCJHH2CCSACDNF.LF HFCJHH7MCSRLDNF.LF AUG-20-2012 Add new model HFCJHH2TCS1RDNF.LF HFCJHH2JCS4ADNF.LF HFCJHH7BCSA7DNF.LF NOV-29-2012 Add new model...

  • Page 3: Important Safety Notice

    All manuals and user guides at all-guides.com Important Safety Notice Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations.

  • Page 4: Monitor Specification

    All manuals and user guides at all-guides.com 1. Monitor Specifications...
  • Page 5 All manuals and user guides at all-guides.com...

  • Page 6: Lcd Monitor Description

    All manuals and user guides at all-guides.com 2. LCD Monitor Description The LCD MONITOR will contain a main board and a key board which house the flat panel control logic, brightness control logic and DDC. Monitor Block Diagram Flat Panel and LED Drive.

  • Page 7: Operation Instruction

    All manuals and user guides at all-guides.com 3. Operating Instructions 3.1 General Instructions Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences. 3.2 Hotkeys Power Press the Power button to turn on/off the monitor.

  • Page 8: Osd Setting

    All manuals and user guides at all-guides.com 3.3 OSD Setting Basic and simple instruction on the control keys. 1) Press the MENU-button to activate the OSD window. 2) Press or to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it .
  • Page 9 All manuals and user guides at all-guides.com Luminance 1. Press (Menu) to display menu MENU 2. Press < or > to select (Luminance), and press to enter. MENU 3. Press < or > to select submenu, and press to enter. MENU...
  • Page 10 All manuals and user guides at all-guides.com 4. Press < or > to adjust. Press to exit. AUTO...
  • Page 11 All manuals and user guides at all-guides.com Image Setup 1. Press (Menu) to display menu. MENU 2. Press < or > to select (Image Setup) , and press MENU to enter. 3. Press < or > to select submenu, and press to enter.
  • Page 12 All manuals and user guides at all-guides.com 4. Press < or > to adjust. Press to exit. AUTO...
  • Page 13 All manuals and user guides at all-guides.com Color Setup 1. Press (Menu) to display menu. MENU 2. Press < or > Color to select Setup) , and press MENU to enter. 3. Press < or > to select submenu, and press to enter.
  • Page 14 All manuals and user guides at all-guides.com 4. Press < or > to adjust. Press to exit. AUTO Picture Boost...
  • Page 15 All manuals and user guides at all-guides.com 1. Press (Menu) to display menu. MENU 2. Press < or > (Picture Boost) to select , and press MENU to enter. 3. Press < or > to select submenu, and press to enter. MENU...
  • Page 16 All manuals and user guides at all-guides.com 4. Press < or > to adjust. Press to exit. AUTO...
  • Page 17 All manuals and user guides at all-guides.com OSD Setup 1. Press (Menu) to display menu. MENU 2. Press < or > (OSD Setup) to select , and press MENU to enter. 3. Press < or > to select submenu, and press to enter.
  • Page 18 All manuals and user guides at all-guides.com 4. Press < or > to adjust. Press to exit. AUTO...
  • Page 19 All manuals and user guides at all-guides.com Extra 1. Press (Menu) to display menu. MENU 2. Press < or > (Extra) to select , and press MENU to enter. 3. Press < or > to select submenu, and press MENU to enter.
  • Page 20 All manuals and user guides at all-guides.com 4. Press < or > to adjust. Press to exit. AUTO...
  • Page 21 All manuals and user guides at all-guides.com Exit 1. Press (Menu) to display menu. MENU 2. Press < or > (Exit) to select , and press MENU to enter. Press to exit. AUTO...

  • Page 22: Input/Output Specification

    All manuals and user guides at all-guides.com 4. Input/Output Specification 4.1 D-SUB CONNECTORS and DVI CONNECTORS Pin Assignments Pin Number 15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Ground N.C. Video-Blue N.C. DDC- Serial data Detect Cable...

  • Page 23: Factory Preset Display Modes

    All manuals and user guides at all-guides.com 4.2 Factory Preset Display Modes...

  • Page 24: Panel Specification

    All manuals and user guides at all-guides.com 4.3 Panel Specification 4.3.1 General Features LM270WF5-S2A2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode.
  • Page 25 All manuals and user guides at all-guides.com 4.3.3 Electrical Characteristics Parameter Symbol Min. Typ. Max. Unit Notes Period 10.6 13.89 17.4 Pixel frequency Frequency 59.4 : Typ.144MHz Horizontal Valid H Period Total 1024 1088 1300 Horizontal Hsync Frequency 85.5 Vertical Valid 1080 1080 1080...

  • Page 26: Block Diagram

    All manuals and user guides at all-guides.com 4.3.4 Optical Characteristics Ta=25 °C, V =5.0V, f =60Hz, D =72MHz, Is=110mA Values Parameter Symbol Units Notes Contrast Ratio 1000 Surface Luminance white cd/m  Luminance Variation WHITE Response Time (Gray to Gray) 0.640 0.338 0.315...

  • Page 27: Schematic

    All manuals and user guides at all-guides.com 6. Schematic 6.1 Main Board 715G5240M0D000004L CN101 D-SUB 15P VGA_CABLE_DET VGA_CABLE_DET 5 VGA_5V DDC1_SCL DDCSCL_A DET_VGA R102 DDC1_SCL VSIN0 BIN0- FB102 HSIN0 BIN0 R103 C102 GIN0- BIN0 10R 1/16W 5% DDC1_SDA DDCSDA_A GIN0 R104 19 OHM 500mA DDC1_SDA...
  • Page 28 All manuals and user guides at all-guides.com CN501 HDMI SHDMI1/D2+ R502 0.05R RX2+ D2 Shield SHDMI1/D2- R503 0.05R RX2- SHDMI1/D1+ R504 0.05R RX1+ D1 Shield SHDMI1/D1- R505 0.05R RX1- SHDMI1/D0+ R506 0.05R RX0+ D0 Shield SHDMI1/D0- R507 0.05R RX0- SHDMI1/CK+ R508 0.05R RXC+...
  • Page 29 All manuals and user guides at all-guides.com PA[0..9] PB[0..9] PA[0..9] PB[0..9] LVA3P CN301 LVB3P LVA3M CONN LVB3M LVACKP LVB0M RXO0- LVBCKP LVACKM LVB0P RXO0+ LVBCKM LVA2P LVB1M RXO1- LVB2P LVA2M LVB1P RXO1+ LVB2M LVA1P LVB2M RXO2- LVB1P LVA1M LVB2P RXO2+ LVB1M LVA0P LVB0P...
  • Page 30 All manuals and user guides at all-guides.com R401 10R XTAL_OUT R402 10R XTAL_IN AVDD33_HDMI PVDD1_33 EARAVDD33 AVDD_PLL VCCK R403 1MOHM 1/16W +/-5% HVDD VCC3IO DACAVDD33 AVDD3V_LV X401 U401 24.576MHz C401 C402 20pF 20pF TSTMD X1 GROUNG TSTMD R486 NC/10K 1/16W 5% SHIELDING RST_N RST_N...
  • Page 31 All manuals and user guides at all-guides.com +5V_AUDIO +5V_AUDIO +5V_AUDIO 2,3,5,7 +5V_AUDIO 2,3,5,7 VCC1D2 U702 VCC3.3 G5725ADJT11U L702 U701 G5725ADJT11U L701 10uH C710 10uH R702 2U2 16V 100 OHM 1/10W R704 C708 R701 C709 51K 1% 2U2 16V 100 OHM 1/10W R703 10N 50V C703...
  • Page 32 All manuals and user guides at all-guides.com +5V_AUDIO APA2606NI PAM8007HNR R601 C630 0.47U 100K C631 0.47U CN601 R602 110R 1/10W 5% OUTL VCC3.3 R603 100R 1/16W 5% R622 0OHM R604 110R 1/10W 5% OUTR R627 0OHM PHONEJACK R605 10K 1/16W 5% R645 0OHM FB601...
  • Page 33 All manuals and user guides at all-guides.com +12V D801 L801 +12V 47UH R801 C801 C802 B3100B 0.1UF50V 150UF 25V C803 10 OHM 1/4W Q801 R802 0.47UF 50V R803 0 OHM 1/4W AOD482 R804 BKLT-EN C804 C807 R805 C805 160K 1% R806 300K C806...

  • Page 34: Key Board

    CIN_05 Auto MENU Power Differential T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL AOC e943Fw Size 715G4164-K0C-000-0040_20100420.DSN TPV MODEL 絬 隔 瓜 絪 腹 e943Fw Key Component 2.0 Touch key PCB NAME 715G4164-K0C <称爹>...

  • Page 35: Pcb Layout

    All manuals and user guides at all-guides.com 7. PCB Layout 7.1 Main Board 715G5240M0D000004L R634 R626 C802 R628 C804 C630 R631 C640 L601 CN302 C625 FB410 R636 R635 C639 CN301 C442 Q301 C635 Q303 C638 R480 R632 Q402 L703 D401 FB411 ZD702 Q602...

  • Page 36: Maintainability

    All manuals and user guides at all-guides.com 8. Maintainability 8.1 Equipments and Tools Requirement Voltmeter. Oscilloscope. Pattern Generator. DDC Tool with an IBM Compatible Computer. Alignment Tool. LCD Color Analyzer. Service Manual. User Manual.

  • Page 37: Trouble Shooting

    All manuals and user guides at all-guides.com 8.2 Trouble Shooting No Power No power Check power cable is Re-plug the power cable tightened? Check Power “On/Off” Turn on the Power “On/Off” switch is “On”? Check the LED Check the AC power indicate is OK? Replace main board and check connections Replace key board and check connections...
  • Page 38 All manuals and user guides at all-guides.com 2. No Video (Power LED White) No Video (Power LED White) Press the power Replace the main board button is OK? Replace the main The end board and connection Check the LVDS/FFC Replace the LVDS/FFC cable or panel cable or panel Replace the key board...
  • Page 39 All manuals and user guides at all-guides.com 3. DIM DIM (image overlap, focus or flicker) Reset in factory mode The end Set to the optimal The end frequency, select the recommended frequency Readjust the phase and pixel The end clock in the user mode Pull out signal cable and Check the signal cable check “Self Test Feature...
  • Page 40 All manuals and user guides at all-guides.com 4. Color is not optimal Color is not optimal Color shift Miss color Reset the factory mode Replace the signal cable In the user mode, set the” color settings” until customer satisfy The end Pull out the signal cable and check the screen color display is normal?

  • Page 41: White-Balance, Luminance Adjustment

    All manuals and user guides at all-guides.com 9. White- Balance, Luminance Adjustment Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment. How to setting MEM channel you can reference to chroma 7120 user guide or simpl use “SC” key and “NEXT” Key to modify xyY value and use “ID”...
  • Page 42 All manuals and user guides at all-guides.com C. Adjust Cool (9300K) color-temperature 1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button) 2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120) 3. The LCD-indicator on chroma 7120 will show x = 283 ±30, y = 297 ±30 4.

  • Page 43: Monitor Exploded View

    All manuals and user guides at all-guides.com 10. Monitor Exploded View...
  • Page 44 All manuals and user guides at all-guides.com Part No. Description A34G2932-OPB1B0130 BEZEL F12G6301005 PAD_KEPC A33G1260--1-1C0100 power lens 750GMT270W5A21N100 PANEL LM270WF5-S2A2 A15G1826101 BKT_HINGE CBPCCHHA1Q1 CONVERTER BOARD A15G1839101 MAIN_FRAME A34G2933AED-1B0100 MIDDLE_FRAME A37G0311011 HINGE_ASS'Y A34G2934AEDA1B0130 REAR_COVER A20G0040002 DC_STAND A34G2936AED-1B0130 STAND A33G1345AED-1B0100 COVER_STAND A33G1346--1--X0100 LATCH F19G0001--1 SPRING...

  • Page 45: Bom List

    2nd source 0D1G1030--6120 screw 0M1G-130--6120 SCREW M3X6 0M1G-940--5125 .CREW 0M1G1730--8225-CR3 screw(Hinge) 0M1G3130--4120 SCREW 0Q1G-130--8120 Screw 0Q1G-140-10120 SCREW 0Q1G-930--8120 SCREW 3X8 3550S-1415B AL 7um,PET 75um, LM270WF5-S2A2 708GHF01-CP-2A AOC 40(1088) 044G6000--4-6B SPACE PAPER F07G1130--F715 Compound Pallet F44G710K140135 Empty Carton Q44G6002110-60 PAPER BAORD...
  • Page 46 All manuals and user guides at all-guides.com Q44G9003208 CORNER PAPER Q45G--77--4 PE FILM Q45G--77--5 PE PACKING (Y1900241) Q50G---4-10 TIE (Y1900221) Q52G---1185-98 3M TAPE 750GMT270W5A21N10 PANEL LM270WF5-S2A2 2436L-2886A LM270WF5-S2A2-K31 EGI, 0.5, Not-painted, Down, 3110T-1049A LM270WF5-S2A2 3850L-0088A ID, YUPO, 78X37 6091L-2122A LM270WF5-S2A2 3022L-1927A TORAY, TDF127, 0.145, LM270WF5-S2A2 LGE, SOS-S10H-280, 0.284, angle = 4?,...
  • Page 47 All manuals and user guides at all-guides.com 7250L-0853E NITTO, 5000NS, White, 60*8*0.16, Fixing 7250L-0864A NITTO, NITTO 5000NS, Clear, 30*3*0.16 6925L-0014A LM270WF5(SJA1,S2A2) 6060L-2865A LM270WF5-SJA1-K31 6061L-2331A LM270WF5-SJA1-K31 LS0609MEH2-C1TX, LUSEM, 960, 6BIT, EPI, 0ILUL-0227A C_B, R/TP, 48MM, 6PF, KAPTON-EN, ENG LSBXSPBRXXX1-02700T18, 619.8*352.2, 6308L-4451A LGC, S, B, X, S, P, B, R, X, X, X1, 02700, Top, LSXXSPBRXXXS-02700B18, 601.3*339.7, 6308L-4452A...
  • Page 48 All manuals and user guides at all-guides.com 27,C228,C229,C24,C2 5,C26,C27 0.1U F, 25 Volt, Z PER, Y5V(JF), 1005 R/TP, C105 0CH2A-0038A T0.55(MAX) C231,C232,C80 0CH2A-0040A 10uF, K, 10V, X5R, 0.95mm, 2012, R/TP 10 Volt, X7R(JB), K %, 1005 R/TP, 0.1U F, C20,C23,C230 0CH2A-0068A T=0.55 MAX C2,C3,C5,C71,C72...
  • Page 49 All manuals and user guides at all-guides.com 26,R227,R228,R229,R 230,R231,R232,R233, R234,R235,R236,R23 7,R239,R243,R258,R2 59,R32,R35,R36,R37, R56,R60,R65,R7,R82, R242 0RH0221C622 2.2 OHM 1/16W 1608 5% D R/TP R50,R51,R52,R53 0RH0302C422 30 OHM 1/16W 1608 1% D R/TP R20,R21,R22,R222,R 223,R224,R225,R23,R 0RH0472C422 47 OHM 1/16W 1608 1% D R/TP 24,R25,R26,R27 R105,R2,R3,R4 0RH1000C422...
  • Page 50 Conductive Tape,STN1026WR(P), T=0.11, 7250L-1488B 15*25*0.11 HWASUNG SEALING, STN1026WR(P), Gray, 7250L-2469A 10*30*0.11, Electric Conductivity 756GQCCB0AA008000 MCU ASS'Y IC FLASH MX25L2026DM1I-12G 2Mb SOP-8 U402 056G2233501 MXIC SMTCC-U402 100GAHJG001YT1 AOC I2757FH A15G1826101 BKT_HINGE A15G1827102 BKT_BASE A15G1839101 MAIN_FRAME A20G0040002 DC_STAND A20G0041001 HOLDER A20G0042001 DC_BRACKET A33G1257AED-1B0100...
  • Page 51 All manuals and user guides at all-guides.com AM1G1740-10225-CR3 screw CBPCCHHA1Q1 CONVERTER BOARD CN301 033G801930F-CH--JS WAFER 30P 1.0MM JINGSHI 033G801930F-CH---L WAFER 30P 1.0MM XIANGLONG 2nd source EC 470uF +-20% 16V 8*9mm 3000Hr C631,C716 067G-315471-3K CHINSAN C702,C704 067G215C4713KV LOW ESR EC 470uF 16V 8*9mm C723,C801 067G315M1514KV EC 150UF 20% 25V 8*7...
  • Page 52 All manuals and user guides at all-guides.com Anpec U503,U504,U507,U50 056G-662-21 IC ESD AOZ8804DI DFN-10 AOS IC ESD AZ1045-04F.R7G DFN2510P10E 056G-662-18 2nd source Amazing U102,U103,U501,U50 IC ESD PROTECT AZC398-04S.R7G 056G-662-52 SOT23-6 Amazing NO-SUGGEST IC ESD PROTECT 056G-662-49 2nd source L30ESDL5V0C6-4 SOT23-6L LITEON IC LED DRIVER OZ9998BGN-A1-0-TR U801 056G-700-11...
  • Page 53 All manuals and user guides at all-guides.com R716 RST CHIPR 100 OHM -5% 1/16W 0402 061G0402101-JY 2nd source YAGEO R107,R112,R511,R51 7,R532,R537,R608,R6 RST CHIPR 1 KOHM +-5% 1/16W 0402 TZAI 061G0402102-JT 09,R619,R620,R621,R YUAN RST CHIPR 1 KOHM -5% 1/16W 0402 061G0402102-JY 2nd source YAGEO R512,R513,R533,R53...
  • Page 54 All manuals and user guides at all-guides.com RST CHIPR 2.2 KOHM +-5% 1/16W 0402 R121,R122,R410 061G0402222-JT TZAI YUAN RST CHIPR 2.2 KOHM -5% 1/16W 0402 061G0402222-JY 2nd source YAGEO R114,R306,R514,R53 061G0402223-JI RST CHIPR 22 KOHM +-5% 1/16W 0402 TA-I 5,R628,R717 RST CHIPR 22 KOHM -5% 1/16W 0402 061G0402223-JY 2nd source...
  • Page 55 All manuals and user guides at all-guides.com 8,R389,R411,R452,R4 56,R457,R458,R714 RST CHIPR 4.7 KOHM -5% 1/16W 0402 061G0402472-JY 2nd source YAGEO RST CHIPR 51 KOHM +-1% 1/16W 0402 TZAI R703,R704,R706 061G04025102FT YUAN 061G04025102FI RST CHIPR 51 KOHM -1% 1/16W 0402 TA-I 2nd source RST CHIPR 75 OHM +-5% 1/16W 0402 TZAI R105,R110,R116...
  • Page 56 All manuals and user guides at all-guides.com RST CHIPR 330 KOHM +-1% 1/10W 0603 R816 061G06033303FI TA-I RST CHIPR 4.7 KOHM +-1% 1/10W 0603 R817 061G06034701FF FENGHUA R808 061G0603471-JI RST CHIPR 470 OHM +-5% 1/10W 0603 TA-I RST CHIPR 5.1 KOHM +-1% 1/10W 0603 R813 061G06035101FY YAGEO...
  • Page 57 All manuals and user guides at all-guides.com YUDEN 065G0402105A5K---A MLCC 0402 1uF -10% 10V X5R SAMSUNG 2nd source NO-SUGGEST MLCC 0402 1uF -10% 10V 065G0402105A5K---3 2nd source X5R TDK C401,C402 065G040220031J---Y MLCC 0402 20pF +-5% 50V NPO YAGEO C116,C117,C635,C72 065G040222031J---A MLCC 0402 22pF +-5% 50V NPO SAMSUNG 065G040222031J---Y MLCC 0402 22pF -5% 50V NPO YAGEO...
  • Page 58 All manuals and user guides at all-guides.com SAMSUNG C601,C711,C718,C80 065G060310512K---A MLCC 0603 1uF +-10% 16V X7R SAMSUNG NO-SUGGEST MLCC 0603 1uF -10% 16V 065G060310512K---3 2nd source X7R TDK C629,C632 065G060310522K---A MLCC 0603 1uF +-10% 25V X7R SAMSUNG 065G060310522K---M MLCC 0603 1uF -10% 25V X7R MURATA 2nd source C405 065G060310605M---M...
  • Page 59 All manuals and user guides at all-guides.com 070GHDCP500HDC HDCP CODE FB301,FB401,FB402, FB403,FB404,FB406, FB407,FB408,FB409, 071G-56K121--M CHIP BEAD FB601,FB602,FB603, FB604,FB605,FB606 CHIP BEAD 300OHM 200mA FB101,FB501,FB502 071G-59G301-TA FCM1608KF-301T02 CHIP BEAD 0603 19R 25% 500mA FB102,FB103,FB104 071G-59K190-TA FCB1608KF-190T05 TAI-TECH SMD CHOKE 10uH +-20% SPI74QR-100 L701,L702 073G253S-17--H DADON...
  • Page 60 导热硅胶 20mm X 15mm X5.5mm F12G6911003 导热硅胶 35mm X 18mm X5.5mm F19G0001--1 SPRING Rating Label For D2757PH_I2757FH AP-CH F40G270W615-1A 印尼 F40GYA0361510B POP Label for I2757FH F40GYA0361519A ICE AGE4 Carton sticker label F41G78D1615-7A warranty card for AP F44GHF01102 F44GHF01202 F44GHF01615-2B-JVS Carton for I2757FH F52G1201001 3M TAP 双面胶...
  • Page 61 All manuals and user guides at all-guides.com F95G179T30N234 FFC CABLE 30PIN 397MM P1.0MM TPV 2nd source F95G179J30N234 FFC CABLE 30PIN 397MM P1.0MM KOTL 2nd source KEPCBAB4 KEY BOARD 709G5638-QM001 COMSUPTIVE ASS""Y Q52G6022-33 small tape E09503 F95G-76X--6614 FFC CABLE 6PIN 203MM P1.0MM WENXIN F95G-76T--6614 FFC CABLE 6PIN 203MM P1.0MM TPV 2nd source...
  • Page 62 All manuals and user guides at all-guides.com 055G--23520 055G-100610 锡膏 TIN CREAM W/O PB Q05G6054--1 接料带 SHEET Q09G6012--1 铜扣 PIN Q52G6026--7 擦网纸 Mesh Printting Paper E715 715G5638K0A000004S Key PCB FR4 DS 115*11*1.2MM 16 连板 三照 715G5638K0A000004F Key PCB FR4 DS 115*11*1.2MM 16 连板 富强 2nd source Key PCB FR4 DS 115*11*1.2MM 16 连板...
