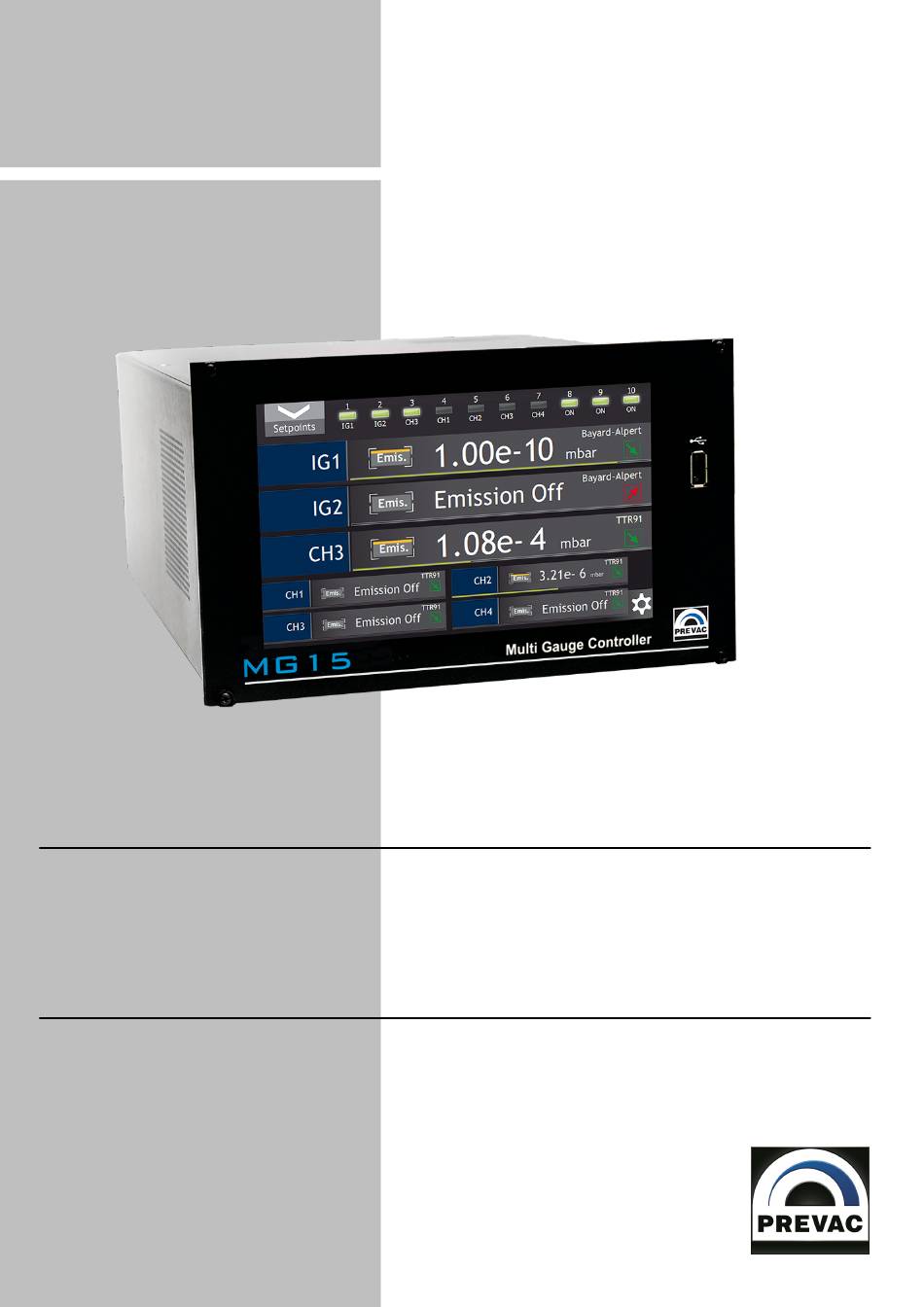

Page 1 USER MANUAL MG15 MULTI GAUGE CONTROLLER...
Page 3 OPERATING MANUAL English translation MG15 MULTI GAUGE CONTROLLER Document no. 1068251 Rev. 03 June 2020 Firmware version 1.4 Precision and Vacuum Technology...
Page 5: Table Of Contents
MULTI GAUGE CONTROLLER Contents Contents 1 INTRODUCTION 1.1 INFORMATION ABOUT VERSION - RELEASE NOTE ....1.2 INTENDED USE ......... 1.3 SAFETY .
Page 6 Contents MULTI GAUGE CONTROLLER 3.4.5 ALPHANUMERIC KEYPAD ......3.4.6 SETUP MENU ........3.4.7 SETUP SHORTCUTS .
Page 7 MULTI GAUGE CONTROLLER Contents 6.4.6 RESPONSE IN CASE OF ERROR ......6.4.7 TYPE OF DATA USED IN COMMUNICATION ....6.4.8 TABLE OF MODBUS VARIABLES - MAP OF REGISTERS .
Page 8 List of Tables MULTI GAUGE CONTROLLER List of Tables 1.1 Device speci ication ........2.1 Description of pins of active channel socket.
Page 9 2.1 Three-conductor cable with protective ground and mains connection ..2.2 View of the rear panel of the standard MG15 ......
Page 10 List of Figures MULTI GAUGE CONTROLLER 3.33 Menu bar - video player ........3.34 Video player - menu .
Page 11: Introduction
Optionally, the user may on placing an order choose the number of supported passive (with hot cathode) and an additional communication interface (Pro iNet). In further part of the manual the device will be referred to as the ”MG15”. 1.3 SAFETY The owner of the device must ensure that all the users have been informed about the safety require- ments contained in this manual.
Page 12: General Safety Instructions
4. Note. Indicates particularly important, but not safety-relevant information. 1.3.3 GENERAL SAFETY INSTRUCTIONS The MG15 has been designed to maximally protect the user and his environment against burns or electric shocks, mechanical hazards, high temperature and ire spreading out of the device. The...
Page 13: Make Sure That No Objects Enter Through The Vent Holes Of The Device. Keep The Device Dry
Self-con iguration of the device. Self-con iguration of the MG15 by the user through the service application re- sults in waiver of the PREVAC’s liability for proper functioning of the device. Figure 1.1: Make sure that no objects enter through the vent holes of the device. Keep the device dry.
Page 14: Grounding
MULTI GAUGE CONTROLLER 1.3.4 GROUNDING The MG15 is the class 1 device. To minimize a risk of electric shock connect the device to the mains with a 3-conductor mains cable. Conductor cross-section should be min. 1 mm2 (17AWG). Plug the mains cable into wall sockets with protective ground only.
Page 15: Technical Data
MULTI GAUGE CONTROLLER INTRODUCTION 1.4 TECHNICAL DATA 1.4.1 MECHANICAL DATA The section describes the external dimensions of the device. Figure 1.2 present the MG15 , which may be rack-mounted or used as a desktop device. Figure 1.2: Dimensions User manual rev. 03...
Page 16: Specification
INTRODUCTION MULTI GAUGE CONTROLLER 1.5 SPECIFICATION 1.5.1 TECHNICAL DATA PARAMETER DESCRIPTION ELECTRICAL PARAMETERS Power supply 100-240 VAC Frequency 50 - 60 Hz Current consumption 1.8A (110V) 0.85A (230V) Maximum power consumption 200 W Protection class Overvoltage category Power supply connection socket European connection socket IEC 60 320 C13 Fuse 3.15A (250V)
Page 17: Device Speci Ication
MULTI GAUGE CONTROLLER INTRODUCTION continued from previous page PARAMETER DESCRIPTION Resolution of converter 0.1fA Accuracy of measurement 3fA*** Sampling frequency 10sps Screen refreshment 10 sps Temperature drift Automatically adjusted by internal temperature control GAUGE CONNECTION Active gauge RJ45 Passive gauge UTG0187SVDEU + BNC COMMUNICATION Communication interfaces...
Page 18: Operation
• Remotely via RS232, RS485 or Ethernet, see chapter 6. 1.5.3 STANDARDS • The MG15 conforms to the following standards and harmonised standards: – PN-EN 61326-1:2013-06 (EN 61326-1:2013) - Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements.
Page 19: Installation
2.2 MECHANICAL INSTALLATION The MG15 device can be mounted in a DIN 41 494 (19”, 3 HU) cabinet/rack, occupying half of its width. In each of these cases you must pay attention to the following safety note.
Page 20: Cooling
Take appropriate measures to restore the required protection class of the rack. 2.3 COOLING The MG15 is equipped with a cooling system. The power unit is equipped with a suction fan. Air is supplied from the panels located by the power unit enclosure. Hot air outlet is located on the rear panel.
Page 21: Mains Switch
2.4.2 MAINS SWITCH The mains switch is installed on the rear panel of the MG15 . The switch has two positions marked as I i O (see ig. 2.1). The switch in the position I (ON) supplies power to the device. The switch in the position O (OFF) disconnects power from the device.
Page 22: Device Rear Panel
This section describes the sockets and connections of the rear panel. Read this section to properly connect the accessories available for the device. Figure 2.2: View of the rear panel of the standard MG15 . The following connections are installed on the rear panel: •...
Page 23: View Of The Rear Panel Of The Mg15 With Optional Profinet Interface
MULTI GAUGE CONTROLLER INSTALLATION Figure 2.3: View of the rear panel of the MG15 with optional PROFINET interface. The following connections are installed on the panel: • A - Passive gauges connections • B - Connections for passive gauges measuring signal •...
Page 24: Active Channels
Emission on/off signal Table 2.1: Description of pins of active channel socket. Improper gauge. Gauges which are not designed for use with the MG15 may damage the device. Operate the MG15 with proper gauges only - see chapter 1.5.1. Page 24...
Page 25: Passive Channels
MULTI GAUGE CONTROLLER INSTALLATION 2.5.2 PASSIVE CHANNELS The passive channels connections are used to connect passive gauges with hot cathode. 7-pin UTG (Metalok Bantam) sockets are available for the passive channels. Figure 2.5: Passive channel socket (UTG-type) PIN NUMBER FUNCTION DESCRIPTION Filament Filament 1 supply (max.
Page 26: Remote Control
INSTALLATION MULTI GAUGE CONTROLLER 2.5.3 REMOTE CONTROL The device is equipped with the following interfaces: • Serial RS232/RS485 (Selected in menu), • Ethernet (compliant with IEEE 802), • Pro iNet (option). Figure 2.6: Modbus RTU and TCP remote control module Figure 2.7: Pro iNet remote control module (option) The parameters of the device can be read via the remote control interfaces at any time.
Page 27: I/O Interface
MULTI GAUGE CONTROLLER INSTALLATION 2.5.4 I/O INTERFACE The I/O connections contains the following signal pins: • digital inputs • relay outputs • analogue outputs Figure 2.8: I/O socket (D-sub HD 15-pin female) PIN NUMBER FUNCTION DESCRIPTION DIN1 Digital input 1 (24 V voltage activated, type 5mA) DIN2 Digital input 2 (24 V voltage activated, type 5mA) DIN3...
Page 28: Relay Outputs Connection (Setpoints)
INSTALLATION MULTI GAUGE CONTROLLER 2.5.5 RELAY OUTPUTS CONNECTION (SETPOINTS) Figure 2.9: Setpoints socket (D-Sub 25 female) PIN NUMBER FUNCTION DESCRIPTION SP1_NC Setpoint 1, normally closed contact SP1_NO Setpoint 1, normally open contact SP2_COM Setpoint 2, common contact SP3_NC Setpoint 3, normally closed contact SP3_NO Setpoint 3, normally open contact SP4_COM...
Page 29: Address Dip Switch
INSTALLATION 2.5.6 ADDRESS DIP SWITCH Figure 2.10: Address DIP Switch To communicate with the MG15 controller the device must be assigned with a unique address set via the address DIP switch. 1. MG15 controller with LCD display To set an address use switches 1 - 6. They encode the device address in the binary code.
Page 30: Interface Selection
INSTALLATION MULTI GAUGE CONTROLLER Communication interface can be selected as shown below: 5 - OFF 6 - OFF RS232 5 - OFF 6 - ON RS485 5 - ON 6 - X Pro iNet Table 2.7: Interface selection • without Pro iNet communication socket FUNCTION Address RS232/RS485...
Page 31: Operation
After connecting and switching on the MG15 the outputs are not active. 3.2 FRONT PANEL - STANDARD Fig. 3.1. below shows the front panel of the MG15 . The user interface of the MG15 consists of the following elements: Figure 3.1: Front panel...
Page 32: Display With Touch Panel
OPERATION MULTI GAUGE CONTROLLER 3.2.1 DISPLAY WITH TOUCH PANEL The device is equipped with a TFT 7” colour display with a 16:10 format. The display has an inte- grated touch panel enabling communication with the user. The touch panel can record only a single press at a time. It is forbidden to touch the panel at several points simultaneously.
Page 33: Front Panel - Black Box
MULTI GAUGE CONTROLLER OPERATION 3.3 FRONT PANEL - BLACK BOX Figure 3.2: Front panel in BlackBox version • A - Diodes signalling active Setpoints • B - Diode signalling that power is ON • C - Socket to connect the panel with a graphic display •...
Page 34: User Interface
MULTI GAUGE CONTROLLER 3.4 USER INTERFACE The MG15 is equipped with a colour display with touch screen. All control operations, entering settings and data are carried out only via the touch screen. Information displayed by the device are grouped in three separate windows: •...
Page 35: Main Window
MULTI GAUGE CONTROLLER OPERATION 3.4.1 MAIN WINDOW The device has one main view on which the most important parameters controlled by the device are displayed. Figure 3.5: Description of main window • A - Setpoints con iguration button • B - Diodes indicating active Setpionts •...
Page 36: Setpoints Behaviour
MULTI GAUGE CONTROLLER 3.4.1.1 SETPOINTS MENU This parameter group allows you to con igure the switching of relays functions. The MG15 is equipped with 10 relays which are switched depending on the measured pressure. Fig. 3.7 shows the set- points behaviour: Figure 3.7: Setpoints behaviour...
Page 37: Setpoints Settings
MULTI GAUGE CONTROLLER OPERATION Figure 3.8: Setpoints settings 3.4.1.2 GAUGE CHANGE To change a gauge in the main view click on the gauge name. The gauge selection menu will appear, see chapter 3.6.1 Figure 3.9: Gauge change User manual rev. 03 Page 37...
Page 38: Pressure Unit Change
OPERATION MULTI GAUGE CONTROLLER 3.4.1.3 MEASUREMENT UNIT CHANGE The MG15enables de ining a unit of measurement for pressure values displayed for each channel separately. The following pressure units can be chosen: • mbar - pressure unit milibar • Pa - pressure unit Pascal •...
Page 39: Chart Window
MULTI GAUGE CONTROLLER OPERATION 3.4.2 CHART WINDOW The additional window contains a chart module. The module is used to visualise graphically the behaviour of a chosen physical quantity in time. In the further part of the manual a single physical quantity in time will be called data series.
Page 40: View Of Selected Fragment Of Chart
OPERATION MULTI GAUGE CONTROLLER 3.4.2.2 EDITING OF CHART PARAMETERS To change the chart drawing parameters follow the procedure presented in ig. 3.13: • A - Click on top ield, with currently drawn data series • B - Click on a selected parameter to be edited Parameters that can be edited: •...
Page 41: Change Of Chart Units
MULTI GAUGE CONTROLLER OPERATION 3.4.2.5 CHANGE OF CHART UNITS To change the unit, in which the chart is being drawn, click on this unit and select the item on the list. Figure 3.15: Change of chart units 3.4.2.6 SAVING CHART DATA ON USB All the chart data can be saved on a pen drive.
Page 42: Chart Activation Menu
1. Read the product and serial numbers from the Information menu 2. Read the product key from the Device Settings → Chart Activation 3. Contact the sales department (+48 32 459 2130 lub sale@prevac.pl) and provide both num- bers and the product key.
Page 43: Timer Window
MULTI GAUGE CONTROLLER OPERATION 3.4.3 TIMER WINDOW An additional window contains a timer and information on the current time and date. Elapsing time is connected with the progress bar located around the Start/Stop button. The value of the timer can be set in a range from 00h:00m:01s to 23h:59m:59s.
Page 44: Numeric Keypad
OPERATION MULTI GAUGE CONTROLLER 3.4.4 NUMERIC KEYPAD Numerical values in the device can be edited via the numeric keypad. It consists of basic numbers from 0 to 9 and function keys to enter new data and update the existing ones. The numeric keypad is shown in ig.
Page 45: Increasing/Decreasing Value Via Numeric Keypad
MULTI GAUGE CONTROLLER OPERATION Figure 3.23: Increasing/Decreasing value via numeric keypad To enter a number in the exponential form: 1. Enter the value of the mantisee with an appropriate character via the numeric keypad (e.g. 12.5). 2. Press the Exponent key. The index character can be changes by clicking it twice. 3.
Page 46: Alphanumeric Keypad
OPERATION MULTI GAUGE CONTROLLER 3.4.5 ALPHANUMERIC KEYPAD The on-screen keyboard is used for entering alphanumeric data and also facilitates text entry. Fig- ure 3.25 shows the alphanumeric keyboard with description of the main keys. Figure 3.25: Alphanumeric keypad Page 46 User manual rev.
Page 47: Setup Menu
MULTI GAUGE CONTROLLER OPERATION 3.4.6 SETUP MENU Advanced con iguration of the device parameters is possible via the setup menu. Press the Show Menu icon to expand the menu and then press the Device setup button. All the mentioned button- s/icon are described below in ig.
Page 48: Setup Shortcuts
OPERATION MULTI GAUGE CONTROLLER 3.4.7 SETUP SHORTCUTS Frequently used commands/settings can be conveniently accessed by creating shortcuts. To create a shortcut: 1. Navigate to the setup position where a shortcut should be created. 2. Press on the Setup shortcut, icon to add the position to shortcuts. To remove position from shortcut list tap again on the Setup shortcut icon.
Page 49: Messages
MULTI GAUGE CONTROLLER OPERATION 3.4.8 MESSAGES The MG15 will automatically display both warning and error messages as appropriate. Figure 3.29: Example warning and error messages. 3.4.8.1 WARNING MESSAGES Warning messages are displayed on the right of the screen. When present, they can be clicked to display the full warning information (see Figure 3.30).
Page 50: Video Player
3.4.9 VIDEO PLAYER The MG15 can play video iles. Files can be played only from the device. The full instructions on how to copy a video ile onto the device is in the subsection Copy video ile to the device. A short guide on how to play the video is included in subsection Playing Video.
Page 51: Menu Bar - Video Player
MULTI GAUGE CONTROLLER OPERATION 3.4.9.1 PLAYING VIDEO In order to play a video go to the main screen and press the Menu icon on the bottom right corner of the screen to display the menu bar. Then press the Video player icon on the bottom right (see Figure 3.33).
Page 52: Deleting A Video Ile
OPERATION MULTI GAUGE CONTROLLER Figure 3.35: Deleting a video ile 3. To open a video, press Open. The video player is displayed. 4. Tap on the screen to see the video player menu. All the video player menu items are described in the igure below: Figure 3.36: Video player 3.4.9.2 COPY VIDEO FILE TO THE DEVICE In order to copy a video ile to the device, connect a USB lash drive which contains the iles.
Page 53: Noti Ication About Detecting Usb
MULTI GAUGE CONTROLLER OPERATION Figure 3.37: Noti ication about detecting USB Figure 3.38: USB menu - list of videos on USB Figure 3.39: Copy *.avi to device User manual rev. 03 Page 53...
Page 54: Setup Menu
OPERATION MULTI GAUGE CONTROLLER 3.5 SETUP MENU The menu is used to access the device setup options, such as the geometry of chambers, gauges, communication, etc. To save the changes follow the instructions set out in chapter 3.6.12. 3.6 MENU TREE •...
Page 55 MULTI GAUGE CONTROLLER OPERATION ∘ PTR225 ∘ PKR251/360/361 ∘ PCR280/TPR28x ∘ PTR90 ∘ ITR90 ∘ ITR100 ∘ Baratron ∘ 10 Torr ∘ 50 Torr ∘ 100 Torr ∘ 500 Torr ∘ 1000 Torr ∘ 20 psia ∘ 30 psia ∘ 50 psia ∘...
Page 56 OPERATION MULTI GAUGE CONTROLLER ∘ Digital IN 1 ∘ Digital IN 2 ∘ Digital IN 3 ∘ Digital IN 4 • Gas Type ∘ IG1, IG2, IG3, CH1, CH2, CH3, CH4 ∘ ∘ ∘ ∘ ∘ ∘ ∘ ∘ ∘ De ine •...
Page 57 MULTI GAUGE CONTROLLER OPERATION ∘ Pressure IG2 ∘ Pressure IG3 ∘ Pressure CH1 ∘ Pressure CH2 ∘ Pressure CH3 ∘ Pressure CH4 ∘ None ∘ Mode ∘ User Range ∘ 1 to 1 ∘ EXPO ∘ Ranges ∘ Min Pressure ∘...
Page 58 ∘ Version ∘ From revision ∘ PrevacOS ∘ Version ∘ From revision ∘ Peripheral Version ∘ MG15 MainBoard ∘ Version ∘ From revision ∘ Hardware ∘ IONgauge Card 1 HW ∘ IONgauge Card 2 HW ∘ IONgauge Card 3 HW ∘...
Page 59 MULTI GAUGE CONTROLLER OPERATION ∘ Device Temperature ∘ MG15-MB Master Reset • Logs • Reboot User manual rev. 03 Page 59...
Page 60: Gauge Configuration - Sensor Menu
OPERATION MULTI GAUGE CONTROLLER 3.6.1 GAUGE CONFIGURATION - SENSOR MENU Gauge selection menu. Select a gauge type compatible with the gauge type physically connected with the device. The following types of passive gauges are available: IE514, IE514, UHV-24, UHV- 24p, MKS Series 274, NUDE-UHV-8A, NR-F-UHV, G8130, BARION basic II, De ined and active: CTR90, TTR91, TTR211, PTR225, PKR251/360/361, PCR280, TPR280/281, PTR90, ITR90, ITR100, Baratron, Analogue input, PG105, ATMION, IKR360/361, User De ined.
Page 61 3. DEGAS POWER The MG15 is used during degassing the electron bombardment method. The power with which the gauge is degassed may be set between 1 and 40 W. This value should be set accord- ing to the manufacturer’s speci ications.
Page 62: Bayard Alpert Gauge
5. SELECTING FILAMENT Most of the available B-A gauges have two ilaments. In the Filament menu the user can choose between them - the MG15 will use the ilament selected in this menu. Also the de- gassing procedure applies to this ilament.
Page 63: Identifying Resistances For Supported Gauges
MULTI GAUGE CONTROLLER OPERATION • Degassing voltage - May be set between 400 and 600V. The MG15 is used during degassing the electron bombardment method. It is recommended to carry out degassing at the highest voltage admissible by the gauge. At a higher voltage a lower emission current is required to obtain the same degassing power, which affects positively the life of the ilament.
Page 64 OPERATION MULTI GAUGE CONTROLLER ⋅ ��[��] = 10 Page 64 User manual rev. 03...
Page 65: Degassing
MULTI GAUGE CONTROLLER OPERATION where: A factor - factor A in the above equation B factor - factor B in the above equation min. Voltage - lower measuring range of gauge max. Voltage - upper measuring range of gauge max. Example: The User De ined gauge as below will behave identically to ITR90 gauge: A factor = 0.725 B factor = 10.333...
Page 66: Readings Correction Of Gas Type - Gas Type Menu
Correction, due to the gas type, becomes pressure function if pressure exceeds 0.5 mbar. This fact has been taken into account for all gas types available for the MG15 . The correction factors for Bayard Alpert gauges implemented in the MG15 are listed in table 3.2. ��...
Page 67: Correction Factors For Bayard Alpert Gauges Not Implemented In The Device
In addition, the user may de ine any other gas correction factor in a range from 0.01 to 9.99, which makes the controller more universal. Table 3.3 present some of factors not implemented in the MG15. For passive gauges correct readings of pressure are achieved by multiplying the readings by the correction factor according to the following formula: ��...
Page 68: Filter
3.6.9.1 RELAY OUTPUTS CONFIGURATION - RELAY OUTPUTS MENU Setup menu →Outputs settings →Relay Outputs The MG15 has 4 relay outputs, which functioning may be bound with the current values of the pa- rameters measured by the MG15. The outputs are physically separated from the device (potential- free).
Page 69 MULTI GAUGE CONTROLLER OPERATION • Still ON - output active • None 3.6.9.2 ANALOG OUTPUT CONFIGURATION - ANALOGUE OUTPUTS MENU Setup menu labelrightarrow Outputs settings →Analogue outputs Each of the analogue outputs can send a signal in a range between 0-10V. They can be used to control external devices or record data.
Page 70: Trend
In the Device Settings submenu, the settings common for different types of devices with a touch screen are available, however, they are not speci ic for a particular model - in this case for the MG15. 3.6.11.1 COMMUNICATION SETTINGS - COMMUNICATION MENU Setup menu →Device Settings →Communication...
Page 71 The device in the remote control mode displays in the upper part of the main window an information bar with text: ”REMOTE: MG15 ”. Activating the option does not mean that the device immediately switches to the remote con- trol mode.
Page 72: Saving/Loading Settings
OPERATION MULTI GAUGE CONTROLLER 3.6.11.2 DISPLAY SETTINGS To change display settings go to: Setup Menu →Device Settings →Display In Display submenu it is possible to change the following parameters: Brightness - display brightness value. Its value can be changed in the range of 10-100%. Touch Screen Autolock - When the value is set to ON, the autolock function is active.
Page 73: Information Menu
MULTI GAUGE CONTROLLER OPERATION 5. The current settings will be saved in the selected slot under the chosen name. Saved device con iguration can be restored also in the Setup menu. To load the previously saved settings: 1. Enter Setup Menu →Save/Load →Save. 2.
Page 74: Step By Step
MULTI GAUGE CONTROLLER 4 STEP BY STEP This chapter descries the con iguration procedure and irst start-up of the MG15 device. 4.1 QUICK START 1. Install the device on the vacuum system and make all the necessary connections - see chapter 2.5.
Page 75: Language Selection
MULTI GAUGE CONTROLLER STEP BY STEP Figure 4.1: Communication interface con iguration 4.3 LANGUAGE SELECTION In order to change the language the following steps should be taken: 1. Press the Menu button. 2. Click on the Setup menu. 3. In the Setup menu select the Device Settings -> Language 4.
Page 76: Troubleshooting
MULTI GAUGE CONTROLLER 5 TROUBLESHOOTING This section describes the errors, warnings and noti ications appearing in the MG15 . All informa- tion displayed on the screens is divided into two groups: • Errors and warnings , which relate primarily to the device hardware are displayed in the mes- sage bar on the right side of the screen.
Page 77 MULTI GAUGE CONTROLLER TROUBLESHOOTING continued from previous page NOTIFICATION DESCRIPTION Check the measurement cable for short-circuits Replace the measurement cable Restart emission Overpressure Pressure measured exceeds the critical Check for leaks value Wait until pressure reaches the minimum value Restart emission HV Failure No high voltage at the gauge anode or Check the connections of the controller...
Page 78: Message Bar Notifications
TROUBLESHOOTING MULTI GAUGE CONTROLLER continued from previous page NOTIFICATION DESCRIPTION High Pressure Pressure in the gauge area is out of the Check the gauge and its type whether it is appro- measuring range. priate for the application/process. EEPROM Failure Internal hardware error Turn off, wait for 10 s, restart Filament Failure No current in the ilament circuit...
Page 79 MULTI GAUGE CONTROLLER TROUBLESHOOTING • M2: Copy summary: Error when copying a translation ile. Copying the translation ile failed. • M3: Copy summary: Error: Copying log ile timeout. Copying the log ile took too long, the copying process was interrupted. •...
Page 80 Message informing that following elements (mainboard, bus etc.) are up to date. • M20: No external interlock. Switching MG15 to OPERATE mode will not be possible if the protect signal INTERLOCK is missing. There will be a warning displayed. Such a failure can be caused by the following reasons: –...
Page 81: Communication
This chapter is intended for users who want to use Modbus RTU, Modbus TCP (Ethernet) or Pro iNet communication links. These are communication protocols used to control the functioning of the MG15 . The following chapter includes general information about standards, wiring and electrical connec- tions.
Page 82: Precautions
COMMUNICATION MULTI GAUGE CONTROLLER 6.1.1.1 GENERAL WIRING RULES 1. Communication cables should be laid separately and as far as possible from the power supply cables or cables supplying power to external equipment such as contactors, relays or motors. 2. Communication cables may be laid together with signal cables if those cables are not exposed to sources of interference.
Page 83: Grounding
The device in the remote control mode displays in the upper part of the window an information bar with text: ”MG15 - REMOTE”. The remote control mode can be activated in the device only via software.
Page 84: Communication Interfaces
Descriptions of the connections for individual protocols are presented below. The RS232/RS485, ETH and Pro inet ports of the MG15 are not optically iso- lated. Therefore, it is necessary to ensure the same potentials between the con- troller(s) and other devices in this bus (common power supply chassis ground).
Page 85: Ethernet Connector
MULTI GAUGE CONTROLLER COMMUNICATION 6.3.2 ETHERNET CONNECTOR Figure 6.4: Female socket of Ethernet 10baseT (Modbus TCP) interface PIN NUMBER FUNCTION DESCRIPTION Data transmission - differential pair positive conduc- Data transmission - differential pair negative conduc- Data reception - differential pair positive conductor Data reception - differential pair negative conductor 4,5,7,8 Not connected...
Page 86: Profinet Connector (Option)
COMMUNICATION MULTI GAUGE CONTROLLER 6.3.3 PROFINET CONNECTOR (OPTION) Figure 6.5: Female socket of Pro iNet (Modbus RTU) interface PIN NUMBER FUNCTION DESCRIPTION Data transmission - differential pair positive conductor Data transmission - differential pair negative conductor Data reception - differential pair positive conductor Data reception - differential pair negative conductor 4,5,7,8 Not connected...
Page 87: Modbus Protocol
During communication with the device through the Ethernet (Modbus TCP) network its IP address is the unique address. The data register map is unique for the MG15 device and its de inition is given in the tables starting from ??.
Page 88: Interface Configuration
6.5. Transmission is executed as encapsulation of the Modbus RTU protocol frame in the Pro iNet frame. This means that the MG15 is visible in the network as a standard device compatible with the Pro iNet standard and an IP address is assigned to it. Communication, however is executed by formulating appropriate queries compatible with the Modbus RTU protocol and sending them in a frame of the Pro iNet protocol to the Slave device.
Page 89: Modbus Rtu
“common” signal should be used to ensure addi- tional protection against interference. Note 3: The MG15 works in a half-duplex system, which does not enable transmission and reception of data in the same time. Data are transmitted interchangeably, once query, once response.
Page 90: Connection Parameters
COMMUNICATION MULTI GAUGE CONTROLLER Note 6: The MG15 enables communication with a MASTER device with a write/read speed not exceeding 100 frames/second. 6.4.3.1 CONNECTION PARAMETERS PARAMETER VALUE Data bits Parity None Stop bits Flow control None Baudrate 57600 (default) Table 6.5: Connection parameters 6.4.3.2 FRAME FORMAT...
Page 91 If the CRC checksum differs from the one sent in the frame, this means that a communication error occurred. If the MG15 detects an error in the message, it ignores such frame (leaves without a response). The CRC checksum is generated in the following steps: 1.
Page 92: Checksum Calculation Algorithm
COMMUNICATION MULTI GAUGE CONTROLLER Figure 6.7 illustrates this algorithm of checking CRC errors. Symbol ’⊕’ indicates XOR operation. “n” means a number of data bits. START 0xFFFF →CRC Register CRC Register ⊕ next byte of the message →CRC Register 0 →n Shift CRC Register right one bit Over low? CRC Register ⊕...
Page 93: Modbus Tcp
6.4.4.1 CONNECTION PARAMETERS All the interface parameters are saved in the non-volatile memory of the MG15 . The DHCP protocol option is enabled by default and the device should be assigned with the last parameters such as an IP address, subnet mask and network default gate address.
Page 94: Modbus Tcp Frame Format
“of line” mode, i.e. disconnected from the communication network. Each MG15 device has its own unique MAC address, usually as a 12-digit hexadecimal number in the ”aa-bb-cc-dd-ee-ff” format. The MAC address can be viewed in the device menu or through the communication interface according to the data in the table of chapter ??.
Page 95: Function Codes
Other function codes are supported to ensure compatibility with the Modbus documentation. Exchange of information between the Master and Slave devices is executed through data words. These data consist of parameters. The de initions of individual words for the MG15 are presented in tables, starting from ??.
Page 96 COMMUNICATION MULTI GAUGE CONTROLLER 6.4.5.2 0x06 - WRITE WORD Query: Device Function Address of word to Value to be written address code 0x06 be written 1 byte 1 byte MSB LSB MSB LSB MSB LSB Response: Device Function Address of word to Value to be written address code 0x06...
Page 97: Response In Case Of Error
1 (it is the result of adding 128 to the function code - binary 10000000). In response the error code indicates the type of the error detected. The MG15 supports the type of the detected error: Error Error type...
Page 98: Type Of Data Used In Communication
The next problem are variables, for which 16-bit representation is not suf icient, e.g. value of vac- uum. To solve these problem, different types of variables have been implemented in the MG15, enabling the full resolution of data. The most precise data type is 32-bit loat in the ”IEEE-754” standard. This format is written in the memory as two consecutive words (4 bytes) in the order: “MSB irst”.
Page 99: Float Ieee-754 Format In Modbus Table
MULTI GAUGE CONTROLLER COMMUNICATION 6.4.7.1 ENUMERATED, BOOL AND INTEGER PARAMETERS These variables are always occupying one word in the memory. For variables smaller than: 2 bytes, the upper byte is illed with 0x00 value. These variables are read via 0x03 function, and they can be recorded via 0x06 or 0x10 function. Remember to ill with 0x00 the upper byte (MSB) of variables smaller than 2 bytes during writing.
Page 100: Table Of Modbus Variables - Map Of Registers
COMMUNICATION MULTI GAUGE CONTROLLER 6.4.8 TABLE OF MODBUS VARIABLES - MAP OF REGISTERS NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] BASIC INFORMATION ABOUT VACUUM CHANNELS Channel 1 – vacuum value FLOAT [mbar] / [nA] (*) Channel 1 – status UINT8 see tab.
Page 101 MULTI GAUGE CONTROLLER COMMUNICATION continued from previous page NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] Setpoint 6 source UINT8 see tab. 6.21 Setpoint 7 source UINT8 see tab. 6.21 Setpoint 8 source UINT8 see tab. 6.21 Setpoint 9 source UINT8 see tab.
Page 102 COMMUNICATION MULTI GAUGE CONTROLLER continued from previous page NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] Channel 2 - Grid voltage of def. gauge UINT8 20 .. 250 [V] Channel 2 - Filament voltage of def. gauge UINT8 0 .. 120 [V] Channel 2 - Re lector voltage of def.
Page 103 MULTI GAUGE CONTROLLER COMMUNICATION continued from previous page NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] Channel 4 - Full scale parameter of def. gauge FLOAT 0.00001 .. 40000.00000 [Torr] VACUUM CHANNEL 5 - ACTIVE GAUGE 2 Channel 5 - Emission ON/OFF UINT8 0 ..
Page 104: Basic Registers Table
COMMUNICATION MULTI GAUGE CONTROLLER continued from previous page NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] Channel 7 - Auto identi ication UINT8 0 .. 1 Channel 7 - Gauge type UINT8 see tab. 6.17 Channel 7 - Emission control UINT8 see tab.
Page 105: Digital Outputs Registers Map
MULTI GAUGE CONTROLLER COMMUNICATION Table 6.14 – continued from previous page NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] Digital output 3 - status 1305 UINT8 0 .. 1 Digital output 4 - assigned signal 1306 UINT8 see tab. 6.22 Digital output 4 - status 1307 UINT8...
Page 106: Additional Registers Map
COMMUNICATION MULTI GAUGE CONTROLLER Table 6.16 – continued from previous page NAME OF VARIABLE ADDRESS TYPE KIND RANGE [UNIT] MAC address 5020 6*UINT8 MAC address - Pro iNet 5030 6*UINT8 Table 6.16: Additional registers map Value Description VACUUM GAUGE TYPES ACTIVE GAUGES CTR90 TTR90...
Page 107: Vacuum Gauges Possible Statuses
MULTI GAUGE CONTROLLER COMMUNICATION Table 6.18 – continued from previous page Value Description Pressure too high (out of vacuum gauge range) Anode voltage failure Bias voltage failure Re lector voltage failure Degas failure Gauge not calibrated No emission Offset calibration Low vacuum (out of vacuum gauge range) High vacuum (out of vacuum gauge range) There is no meaningful vacuum value to display...
Page 108: Gas Types
COMMUNICATION MULTI GAUGE CONTROLLER Table 6.20 – continued from previous page Value Description de ine Table 6.20: Gas types Value Description SETPOINTS SOURCE ASSIGNMENT OPTIONS Vacuum channel 1 Vacuum channel 2 Vacuum channel 3 Vacuum channel 4 Vacuum channel 5 Vacuum channel 6 Vacuum channel 7 Always ON...
Page 109: Analogue Outputs Assignment Options
MULTI GAUGE CONTROLLER COMMUNICATION Value Description ANALOGUE OUTPUTS CONTROL SOURCES OPTIONS Not assigned Pressure of passive channel 1 Pressure of passive channel 2 Pressure of passive channel 3 Pressure of active channel 1 Pressure of active channel 2 Pressure of active channel 3 Pressure of active channel 4 Table 6.23: Analogue outputs assignment options Value...
Page 110: Maintenance And Service
During the upgrade, do not turn off the MG15 or disconnect it from the wall outlet. Failure to do so may cause damage to the MG15 , with the result that the unit is not un it for use and will require repair.
Page 111: Usb Detected Hint
/ FAT32. Then simply copy the update ile received from us to the memory stick and insert into the USB slot on the front of the MG15 . The “New USB Device Detected” hint will appear on the bottom of the screen.
Page 112: Usb Menu
MAINTENANCE AND SERVICE MULTI GAUGE CONTROLLER Figure 7.2: USB menu To update the current version to a newer version, select the Firmware Updates option. To accelerate the search for updates on the USB drive, delete all iles except the updates. Figure 7.3: Firmware list In order to choose one of the updates simply click on the name.
Page 113: Restart Message
MULTI GAUGE CONTROLLER MAINTENANCE AND SERVICE Figure 7.4: Restart message After selecting to proceed with the update, the device will stop and the updating procedure will be initiated. The update process takes a few minutes during which time the screen below is displayed. Figure 7.5: Updating irmware User manual rev.
Page 114: Update Summary Example
MAINTENANCE AND SERVICE MULTI GAUGE CONTROLLER Upon successful installation, the message with ”updated” statuses should be displayed. Figure 7.6: Update summary example Select “OK” to reboot the device and inish the upgrade. Page 114 User manual rev. 03...
Page 115: Auto Update
MULTI GAUGE CONTROLLER MAINTENANCE AND SERVICE 7.3.1 AUTO UPDATE The auto-update feature compares the current version of main-board and bus irmware with soft- ware. In case of any mismatch (for example if the micro SDHC card was swapped) the user will be informed with a blinking exclamation icon.
Page 116: Preboot Environment
Figure 7.9: Enter into preboot environment The Preboot Environment is an application to boot the MG15 . Its main task is to launch the device in the version selected by the user. It can also be used to run other tools, such as the gauge calibration application.
Page 117: Boot Menu
MAINTENANCE AND SERVICE 7.4.1 BOOT MENU Boot menu allows the user set which version of the MG15 and Preboot Environment will be run after the start of device. In order to switch software version, click on “Software boot version” combo box.
Page 118: Tools Menu
MAINTENANCE AND SERVICE MULTI GAUGE CONTROLLER 7.4.2 TOOLS MENU The Tools menu allows the user to run applications such as touch screen or power supply calibra- tion. Figure 7.13: Tools menu In order to select one of the applications, tap the desired application from the tools combo box and tap the Run button.
Page 119: Network Tab
MULTI GAUGE CONTROLLER MAINTENANCE AND SERVICE 7.4.3 NETWORK TAB From this tab the user can con igure the IP address, netmask and enable / disable DHCP. Figure 7.15: Network tab After tapping on one of the editable ields, the numeric panel for editing values will appear . Input values can be completed by tapping X button in the upper-left corner of the screen.
Page 120: Storage And Disposal
MULTI GAUGE CONTROLLER 8 STORAGE AND DISPOSAL 8.1 PACKING Please retain the original packaging. The packaging is required for storing the MG15 and for ship- ping it to an authorized PREVAC service center. 8.2 STORAGE The MG15 should only be stored in a dry room. The following requirements must be met:...
Page 121: Appendix
MULTI GAUGE CONTROLLER APPENDIX 9 APPENDIX 9.1 DIP SWITCH ADDRESSING ADDRESS DIP SWITCH ON ADDRESS DIP SWITCH ON 1, 6 2, 6 1, 2 1, 2, 6 3, 6 1, 3 1, 3, 6 2, 3 2, 3, 6 1, 2, 3 1, 2, 3, 6 4, 6 1, 4...
Page 122: Dip Switch Addressing
APPENDIX MULTI GAUGE CONTROLLER continued from previous page ADRES DIP SWITCH ON ADRES DIP SWITCH ON 2, 4, 5 2, 4, 5, 6 1, 2, 4, 5 1, 2, 4, 5, 6 3, 4, 5 3, 4, 5, 6 1, 3, 4, 5 1, 3, 4, 5, 6 2, 3, 4, 5 2, 3, 4, 5, 6...

Prevac MG15 User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Prevac MG15

Summary of Contents for Prevac MG15

Table of Contents
