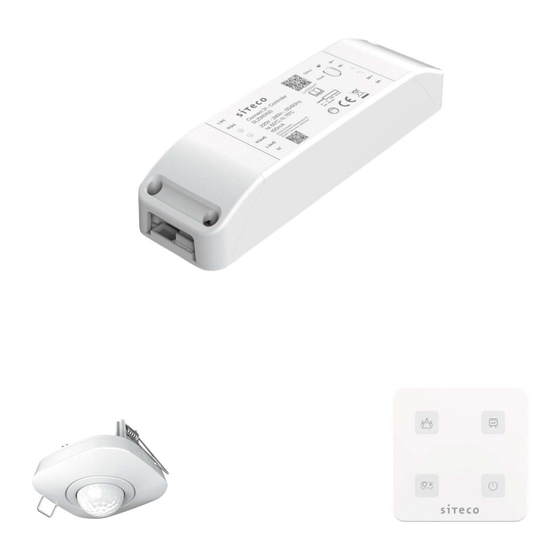

- Page 1 SITECO Connect 31 Generation 2 Commissioning Instruction V1.0 Hardware : Controller 5LZ910100A, Sensor 5LZ910200A, Touchpanel 5LZ910300 date: 2022-05-05 document ID: 262639-002...
-
Page 2: Table Of Contents
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Table of Contents 1. Overview ................................3 2. Functional Scope ............................4 2.1 Realized functions ............................. 4 3. Preparations for Commissioning ........................4 4. Commissioning Instruction Step by Step ....................5 4.1 APP installation............................5 4.2 Setting the language ........................... - Page 3 SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 7. Troubleshooting ............................28 8. Optional Control with Smartphone ......................29 8.1 Create an account ............................ 29 8.2 Delete account ............................30 8.3 Log In ................................ 30 8.4 Setup network options ..........................32 8.5 Load network into cloud ..........................
-
Page 4: Overview
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 1. Overview Meeting room 1 in an office building will be equipped with SITECO Connect 31 Gen2. -
Page 5: Functional Scope
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 2. Functional Scope Realized functions presence and movement detection with sensor (C) daylight detection with sensor (C) choose lighting scenes with touchpanel (E) semi-automatic mode (manual ON with pushbutton on entrance door (D) ... -
Page 6: Commissioning Instruction Step By Step
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 4. Commissioning Correctly installed/connected components are required. APP installation Load the SITECO Connect 31 APP onto your smartphone.Please note the system requirements! Attention: iPhone 6 and older not compatible! -
Page 7: Setting The Language
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Setting the language Set the language to "English". Create a network Create a new network called "Office Building". - Page 8 SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002...
-
Page 9: Create An Area
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Create an Area Create a new space called "Meeting Room 1". Select the option “open” under “shared”. Share information networks option description open The administrator grants authorizations for users which can operate the network without a password. -
Page 10: Connect The Controller To A Construction Area
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Connect the Controller to a construction area Now add the controller to construction area. The prerequisite is that the controller has not yet been added to a network / area. The red "Status" LED on the controller must therefore light up red continuously. -
Page 11: Localization Assistant
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Localization assistant Now assign the controller to meeting room 1. Click the red icon, first click is turn on the light command, then turn off the light command, and then cycle. Locate the light you are turning on and off and assign it to the meeting room 1. -
Page 12: Connect The Touchpanel To A Controller
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Connect the Touchpanel to a controller Now add the touch panel to meeting room 1. Requirement: The touch panel must not yet be assigned to a network / area. 1. insert the batteries 2. - Page 13 SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 The Touchpanel is now automatically inserted into the system. This can take up to a minute.
-
Page 14: Connect The Sensor To The Controller
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Connect the Sensor to the controller Now connect the sensor(s) to the controller. Click the red icon and the red LED on the sensor will flash red for 15 times for location. -
Page 15: Profile Function Setting On The Controller
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Profile function setting on the controller Please set up all functions: Recommended settings Edit Recommended setting Name Controller Manual Override Timeout 0h10m (default) Pushbutton Interface Settings Pushbutton & On/Off/Dim Max./min Light Level... -
Page 16: Calibration Of Daylight Regulation
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Switch on above treshold Switch-off deactivated 4.10 Calibration of daylight regulation Now do the calibration of the system with the APP. 1. Place a calibrated lux meter on the reference measuring surface... - Page 17 SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 3. Enter the measured light value in the input field of the APP and start the calibration. The calibration can take a little time. after successful calibration, save the settings 4. Important: to active the daylight regulation please switch the luminaires OFF and ON by the APP...
-
Page 18: Additional Setting - Manual Override Timeout For Controller
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 4.11 Additional Setting – Manual Override Timeout for Controller Now set the Manual Override Timeout for Controller. 4.11 Additional Setting – Dimming curve of DALI-ECG If necessary you can setup the dimming curve of the used driver. Default setting: linear dimming curve... -
Page 19: Set Lighting Scenes
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 4.12 Set Lighting Scenes Now create the 3 lighting scenes for meeting room 1. The creation of a scene is described as an example. Meeting room 1 scene Recommended setting meeting presentation... -
Page 20: Configure Touchpanel
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 4.13 Configure touchpanel Now insert the touch panel in meeting room 1 and configure it to the required scenes. All the necessary settings have now been made. You can now start the function test. -
Page 21: Wiring & Connection Test
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 5. Wiring & Connection Test Wiring test pushbutton... -
Page 22: Wiring Luminaires
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Wiring Luminaires... -
Page 23: Touchpanel Test
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Touchpanel Test Check the function of the touch panel by pressing the individual keys. The procedure for a scene is shown as an example. -
Page 24: Useful Functions
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 6. Useful Functions Assign components to another area... -
Page 25: Delete Components
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Delete components... -
Page 26: Delete Area
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Delete area... -
Page 27: Delete Network
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Delete network... -
Page 28: Firmware (Current/Update)
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Firmware (current/update) -
Page 29: Troubleshooting
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 7. Troubleshooting behavior reason repairing sensor does not switch lights OFF delay time T1 too long reduce delay time T1 motion is detected motions or thermal radiation are detected sensor not connected correctly check electrical connection =>... -
Page 30: Optional Control With Smartphone
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 8. Optional Control with Smartphone In meeting room 1, an employee should also be given the option of using a smart phone. To do this, please establish the Internet connection with your smartphone. -
Page 31: Delete Account
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Delete account Log In Log into your account (administrator). - Page 32 SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002...
-
Page 33: Setup Network Options
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Setup network options Under “shared”, select the option “open” or “password protection”. Networks option description open The administrator grants authorizations for users which can operate the network without a password. password protection The administrator grants authorizations for users which can operate the network with a password. -
Page 34: Load Network Into Cloud
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Load network into cloud Now load the “office building” network into the SITECO Connect 31 cloud. -
Page 35: Share Network
You can define as many users as you want. The user receives an email for verification. The prerequisite is that the user has the SITECO Connect 31 APP and an account. After approval, the user receives an email for verification and can now use meeting room 1. -
Page 36: Tips And Tricks
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 9. Tips and Tricks Withdraw authorization You can withdraw the authorization for meeting room 1 from the user. -
Page 37: Share Administrator Rights
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 Share administrator rights You can hand over the administrator rights to a colleague. Important: only one administrator is possible. -
Page 38: Contact
SITECO Connect 31 Gen2 Commissioning Instruction V1.0 262639-002 10. Contact Siteco GmbH Georg-Simon-Ohm-Straße 50 83301 Traunreut Deutschland Tel.: +49 8669 33 0 E-Mail: info@siteco.com Solution Support Information on control systems - control components, sensors, system commissioning, software. Georg-Simon-Ohm-Str. 50 83301 Traunreut, Deutschland Tel.: +49 8669 33 670...
