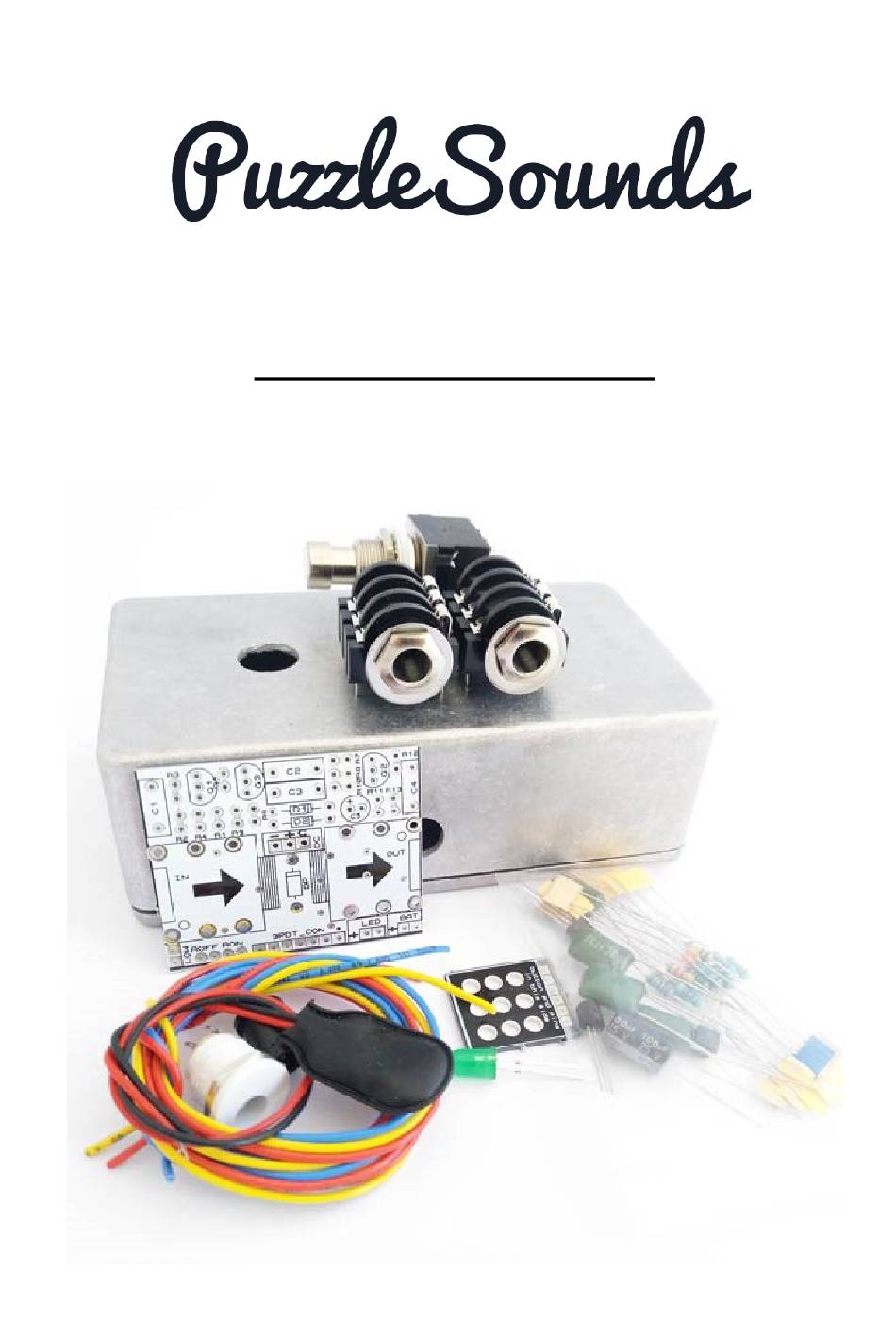

- Page 1 GREEN RINGER...
- Page 2 GREEN RINGER We hope you enjoy your new GREEN RINGER! In this manual, you will find documentation and guidelines helpful to put it together. Here we have put together a few links that detail some of the aspects explained in this manual and that we think you can find helpful: Kit &...
- Page 3 GREEN RINGER Bill Of Materials Resistors (13) 1.5M 560k 160k 6.2k R6, R9, R12 R7, R8 R10, R11 Capacitors (5) C1, C2, C3 100n 100u (electrolytic) Transistors (3) Q1, Q2 2N5088 2N3906 Diodes (2) D1, D2 1N914/1N4148 Other (2) 1N4007...
- Page 4 GREEN RINGER Part Placement...
- Page 5 GREEN RINGER STEP BY STEP GUIDE...
- Page 6 STEP 1 – Resistors and diodes Place the resistors and diodes. If you have troubles reading the values, check out our “Reading Part Values” tutorial. Resistors (13) 1.5M 560k 160k 6.2k R6, R9, R12 R7, R8 R10, R11 Diodes (2) D1, D2 1N914/1N4148 Other (2)
- Page 7 STEP 2 – Pin header Then, connect the 6 pin header:...
- Page 8 STEP 3 – Capacitors and Transistors Solder the capacitors and transistors. If you have troubles reading the values, check out our “Reading Part Values” tutorial. Pay attention to the orientation, as well as to the polarity for electrolytic capacitors. Capacitors (5) C1, C2, C3 100n 100u...
- Page 9 STEP 4 – LED and Battery Clip Solder wires Then, solder then to the LED (the red connection (red to the “+” sign). wire is connected to the longer pin). Solder the battery clip, connecting the red wire to the “+” sign:...
- Page 10 STEP 5 – DC Power Jack wires Solder three wires (about 5cm each) to the DC connection as shown (don’t solder anything to the other end yet!):...
- Page 11 STEP 6 – Audio Jacks Now, solder the audio jacks to the Then place the board inside the board (DC, battery and led wires are enclosure: not present to make it clearer):...
-
Page 12: Step 7 - Dc Power Jack
STEP 7 – DC Power Jack First of all, insert the DC jack in the enclosure and tighten the nut: Then, solder the three wires from the DC connector in the board to the DC jack as follows:... - Page 13 STEP 8 – 3PDT A – Solder the pin to the adapter B – Solder the 3PDT Pay attention, the pins and the 3PDT Now solder the 3PDT to the PCB and must be soldered to the same side of remove all the nuts but one, that should the PCB adapter (the one labeled be set at a middle height:...
- Page 14 C – Solder the 3PDT directly to the board (optional) If you prefer to solder the 3PDT directly to the board, you can wire it as shown in the schematic. We recommend to use the provided 3PDT PCB adapter to make the soldering easier.
- Page 15 STEP 9 – Connect the 3PDT STEP 10 – Your pedal is finished! By now you should have a fully functional effect pedal, we hope you enjoy it!
