BCP SKY4457 Quick Start Manual

NOTICE

Please retain these instructions for future reference.
• This item is intended for home use only. Do not use this item in a commercial setting.
• This item is not intended for and should be kept out of children.
• This item contains small parts which pose a choking hazard to small children and animals.
• Be aware that some parts are heavy and have sharp edges.
• If any parts are missing, broken, damaged, or worn, stop using this product until repairs are made and/or factory replacement parts are installed.
• Do not use this item in a way inconsistent with the manufacturer's instructions as this could void the product warranty.
• This item is designed to be mounted on an existing surface.
• Reconfirm that all bolts, screws, and knobs are secure every 90 days.
• Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
• Assemble only as specified by the following instructions.
• This item is intended for installation into a loadbearing surface; wall studs, anchors, or support beams.

WARNING

• Do not mount this item onto a vehicle.
• Do not overburden or exceed this item's weight capacity.
• Do not place heavy or overburdened storage bins on the top. Store heavy items on the bottom of the peg boards only.
• Do not rest heavy items on this item.
• Do not overtighten this item's screws as this may damage the item's structural integrity.
• Do not attempt to mount this item on a non-loadbearing surface. Locate a stud or cleat to mount this item.

WEIGHT CAPACITY

• Small Bins / 2.2lbs. (each)
• Medium Bins / 3.3lbs. (each)
• Large Bins / 5lbs. (each)

PRODUCT ASSEMBLY

Before installation, please complete the following for maximum product e ectiveness:
- Locate existing wall studs and ensure there are no intersecting wires or water pipes.
- Mark the areas to drive your screws using a level to ensure optimum placement.
- Use a power drill to drive pilot holes into the wall stud. This will make inserting the mounting screws easier.
- Use at least 12 screws to mount this item for maximum stability. Use more if necessary.
1. Locate two part A pegboards and orient them so that the storage bin slots are facing upwards. Attach the two boards with your chosen mounting screws
to your designated area.
NOTE: It is recommended to check each screw is driven just enough to secure the pegboard. DO NOT overtighten the screws.
2. Insert four part C large storage bins into their designated spaces.
NOTE: Place these storage bins into the lower slots of the pegboard only.
3. Insert the sixteen part D small storage bins, and eight part B medium storage bins into your desired space.
4. Insert the remaining part E, F, G, and H tool storage accessories into your desired location on the part A pegboards.
NOTE:
Arrange the storage accessories to match your preferred tool layout.
H
HANGING PEG
(10 PCS)
F LARGE HAND
TOOL SHELF
This item does not include any mounting hardware. Please use appropriately sized screws (at least 3-inches long) depending on the wall material.
Use longer screws for softer wall materials.

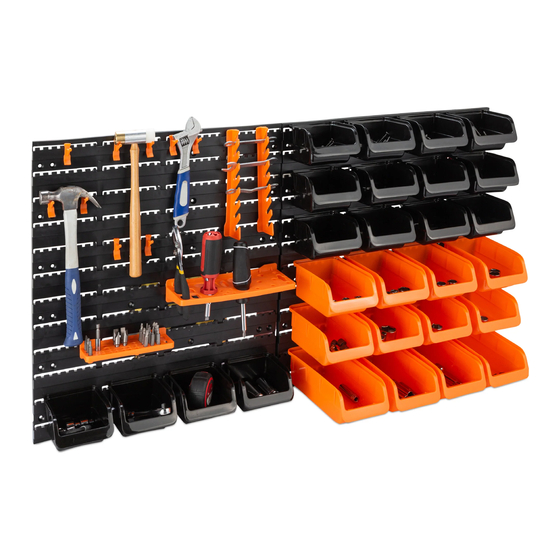

Wall Mounted Pegboard Organizer
• Overall Bin Capacity / 110lbs
• Additional Tool Wight Capacity / 28lbs
B MEDIUM STORAGE BIN
(8 PCS)
E
G
SMALL HAND
TOOL SHELF
D
SMALL STORAGE BIN
(16 PCS)
WRENCH
RACK
(2 PCS)
C
A
PEGBOARD PANEL
(2 PCS)
LARGE STORAGE BIN
(4 PCS)
SKY4457
