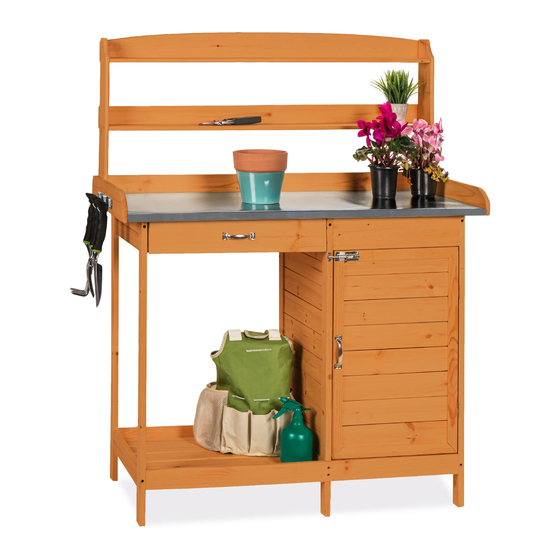

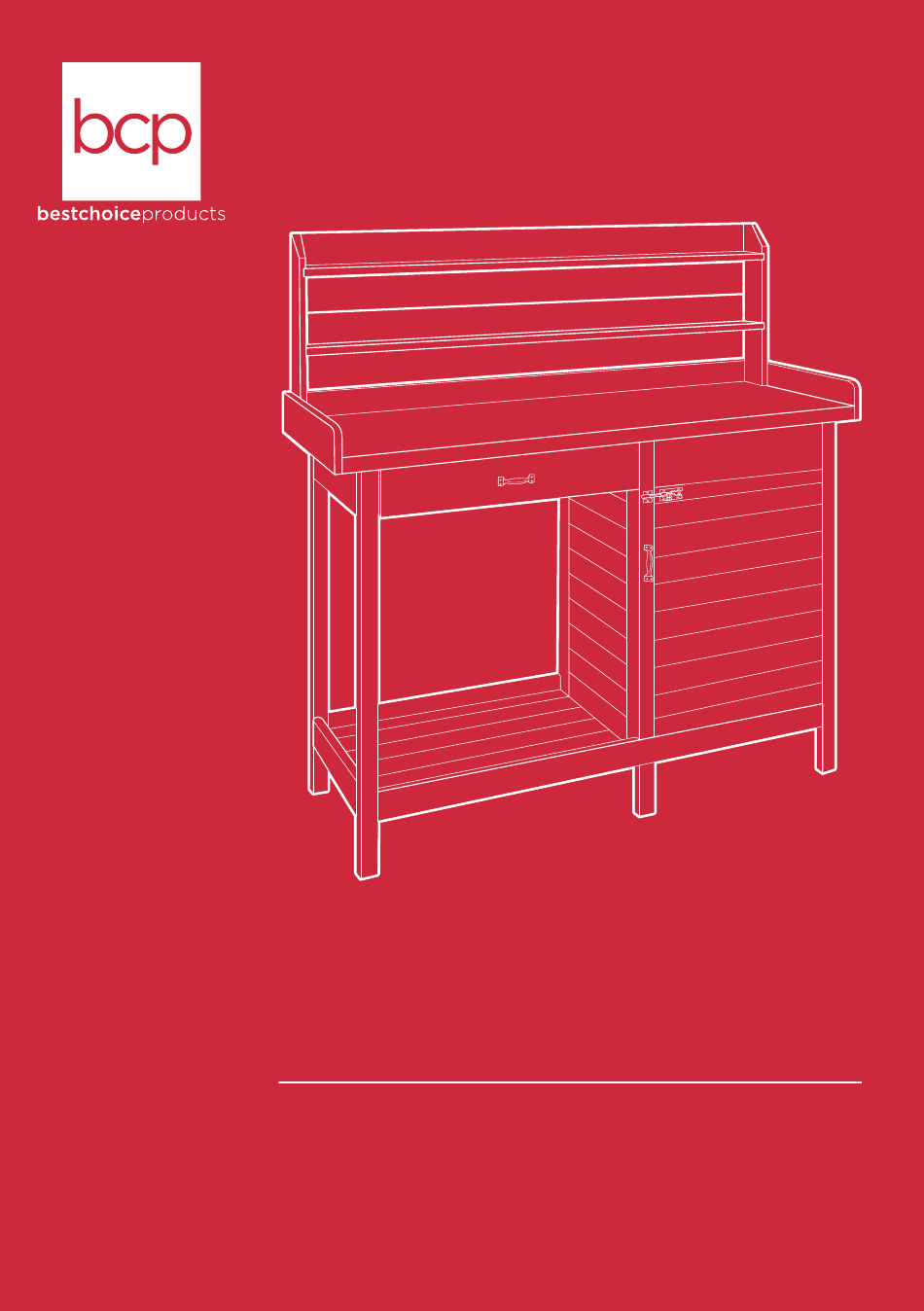

- Page 1 INSTRUCTION MANUAL Wooden Potting Bench with Metal Tabletop SKY3325 Ver. 3...
-
Page 2: Tools Required
NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and knobs before use. •... - Page 3 PARTS LEFT SIDE RIGHT SIDE MIDDLE DIVIDER 1 PC 1 PC 1 PC SLOTTED FLOOR CABINET FLOOR DOOR 1 PC 1 PC 1 PC CABINET BACK DRAWER BENCH TOP 1 PC 1 PC 1 PC LONG FRAME UPPER SIDE FRAME DRAWER SUPPORT 2 PCS 2 PCS...
-
Page 4: Product Assembly
PARTS BACK SUPPORT CABINET SUPPORT SHELF 1 PC 1 PC 2 PCS SHELF BACK I SHELF BACK II 1 PC 1 PC PRODUCT ASSEMBLY Attach part A left side and part C middle divider to part D slotted floor with four part 1 screws. -
Page 5: Side View
PRODUCT ASSEMBLY Attach two part J long frames with eight part 1 screws. Attach part E cabinet floor and part B right side with eight part 1 screws. SIDE VIEW... - Page 6 PRODUCT ASSEMBLY Attach part L drawer support and part M back support with six part 1 screws.
- Page 7 PRODUCT ASSEMBLY Attach part G cabinet back and part N cabinet support with eight part 1 screws. Attach a part 5 handle to the part H drawer with four part 3 screws. Slide in the drawer.
- Page 8 PRODUCT ASSEMBLY Attach two part 4 hinges to the part F door and frame with eight part 3 screws. Attach a part 5 handle with four part 3 screws. Attach the part 6 latch set with six part 3 screws.
- Page 9 PRODUCT ASSEMBLY Attach part I bench top with four part 1 screws. Attach two part K upper side frames with six part 2 screws.
- Page 10 PRODUCT ASSEMBLY Attach two part O shelves with eight part 1 screws.
-
Page 11: Back View
PRODUCT ASSEMBLY Attach part P and part Q shelf backs with twelve part 2 screws. Attach part 7 hooks with two part 3 screws. BACK VIEW SIDE VIEW... -
Page 12: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
