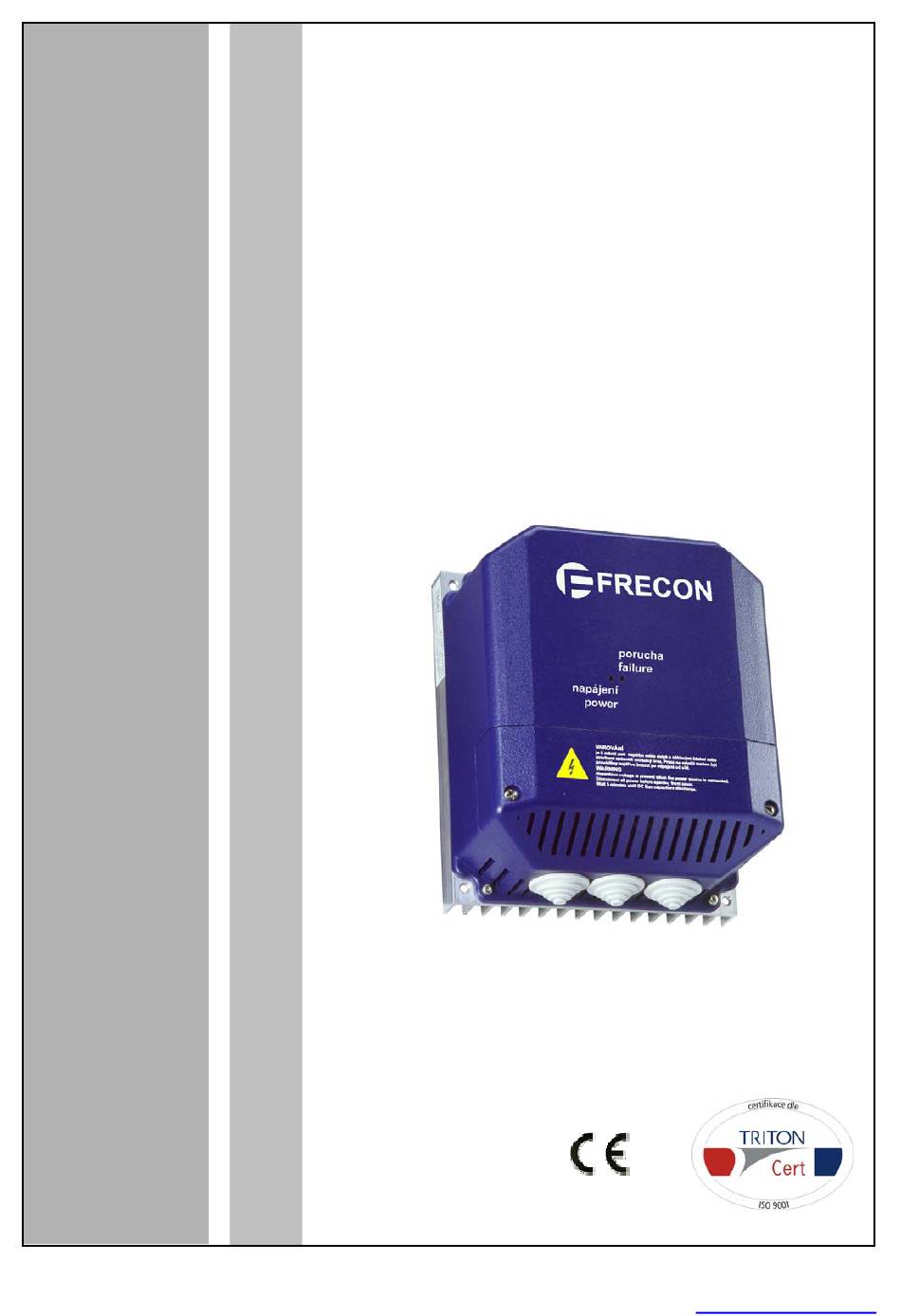

FRECON

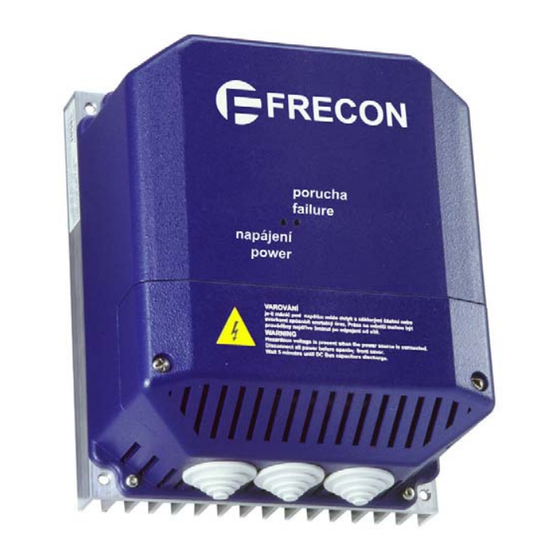

FID-L18, 37, 55, 75, 110, 150, 220, 250
SPEED DRIVES
FOR
STANDARD AC INDUCTION MOTORS
0,18kW TO 2,5kW
INSTALLATION AND USER MANUAL
FRECON, spol. s r.o.
Hodkovická 115, 142 00 Praha 4, CZECH REPUBLIC
tel: +420-241 71 32 44-45, fax: +420-241 72 10 52 E-mail: info@frecon.cz
http://www.frecon.cz
Advertisement
Table of Contents
Related Manuals for Frecon FID-L18
Summary of Contents for Frecon FID-L18
- Page 1 FID-L18, 37, 55, 75, 110, 150, 220, 250 SPEED DRIVES STANDARD AC INDUCTION MOTORS 0,18kW TO 2,5kW INSTALLATION AND USER MANUAL FRECON, spol. s r.o. Hodkovická 115, 142 00 Praha 4, CZECH REPUBLIC tel: +420-241 71 32 44-45, fax: +420-241 72 10 52 E-mail: info@frecon.cz http://www.frecon.cz...
-
Page 2: General Characteristics
• Motor speed control - 8 preset speed values • Logic inputs for remote control • Preset drive parameters - factory drive adjustment under special customer conditions • FRECON TELECONTROL: remote control and indication unit • External RFI input filter 2. General characteristics... -
Page 3: Electrical Installation
4. Mechanical installation 4.1. Location The installation must be located in a place free from dust; corrosive vapours; gases and all liquids. Care must also be taken to avoid condensation of vaporised liquids, including atmospheric moisture. 4.2. IP rating IP 20 or IP 00 (e.g. location in a switchboard ) or IP 54 4.3. -
Page 4: Motor Speed
Output voltage of the drive FRECON FID - L : 3 x 230 V ! MOTOR WINDING CONNECTION MUST BE COMPATIBLE WITH THIS VOLTAGE ! IN THE MOST CASES : DELTA CONNECTION 5.2. -
Page 5: Control Connections
5.3. Control connections 5.3.1. Connection procedure • remove the front panel that is secured with screws. • for control connections use cable of 0,5 mm screened • connection cable should enter at the bottom. • connect screen to earth at the drive only . •... -
Page 6: Speed Control
CHECK THAT : the motor rating is compatible with the drive rating the motor winding connection is compatible with the drive output voltage (refer to chapter 5; section 1.3.) AC input power circuit breaker of the correct rating is installed upstream on the low voltage switch-board (refer to chapter 5, section 1.2.) the drive is firmly attached in an upright position and is properly ventilated... - Page 7 RFI - filter is located in the separate cubicle with enclosure IP 44 or IP00 (on request) or IP20 Dimensions: • EMC emission according to EN 50 081-1, ČSN EN 55 011/B1: FID-L18 ÷ 75 - enclosure IP00: 92 x 60 x 49 mm FID-L18 ÷ 75 - enclosure IP44: 160 x 90 x 70 mm FID-L110 ÷...
- Page 8 The filter cubicle is necessary to install near of the drive. NOTE: Connections must be made with the short length of screened cables. If these cables are altered in any way the filter will operate, but compliance with any emission standard is no longer assured. Input cable into the filter (filtered cable) and no control circuit should be run parallel to an unscreened motor cable or unfiltered supply cable with a spacing less than 0,3 m and over a distance exceeding 1m.
-
Page 9: Safety Precautions
All units have passed FRECON´S quality control standards and conform within tolerance to the enclosed specifications. ENTIRE CONTENS COPYRIGHT FRECON s.r.o. ALL RIGHTS RESERVED, REPRODUCTION IN WHOLE or IN PARTS WITHOUT PERMISSION IS PROHIBITED. FRECON FID-L IS a PRODUCT OF FRECON.
