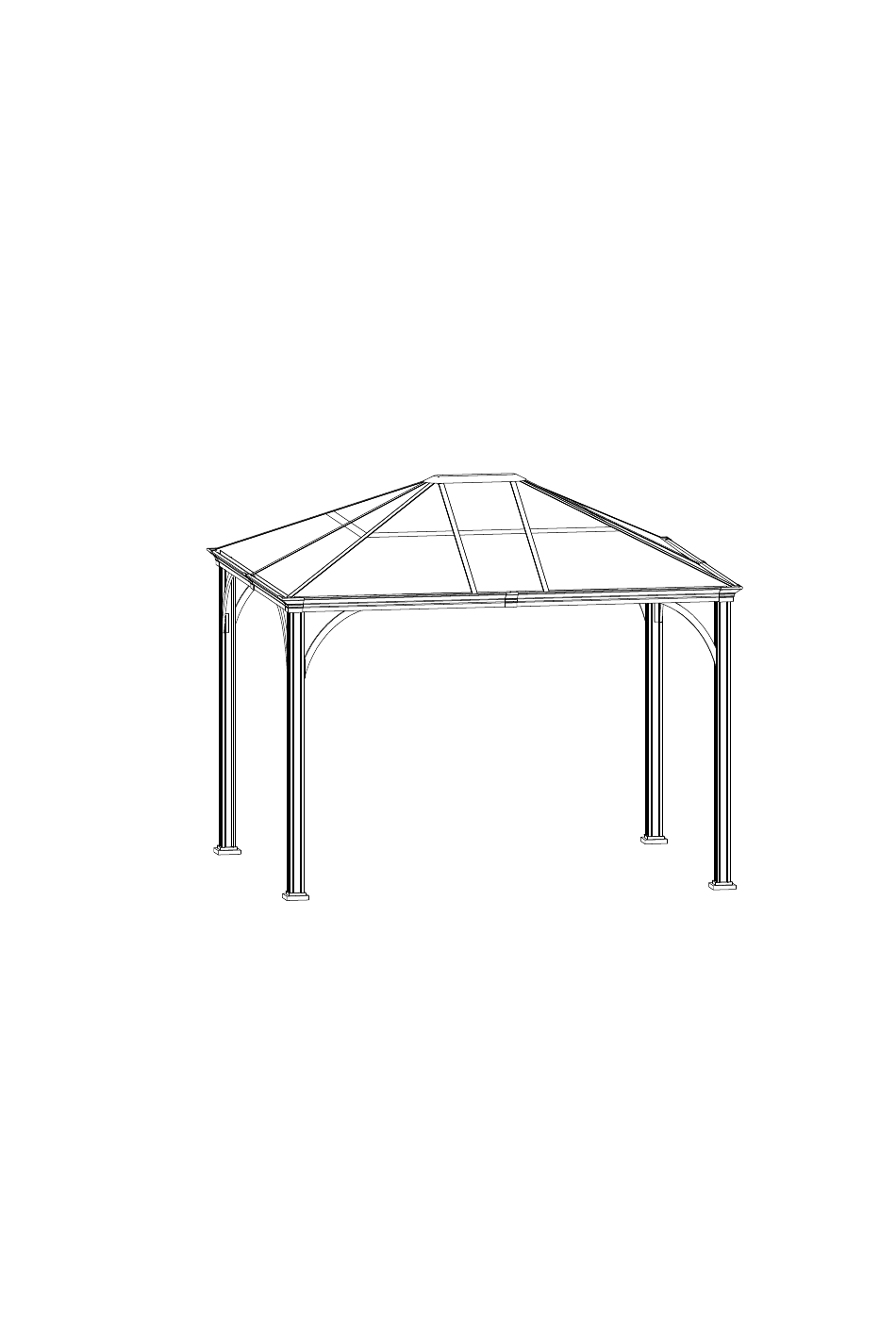

Assembly Manual
Item#: A102010000
Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor
furniture purchase.
Our clear, easy to follow, step by step instructions will guide you through the project from start
to finish
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A102010000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy A102010000

Summary of Contents for Sunjoy A102010000

  • Page 1 Assembly Manual Item#: A102010000 Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish...

  • Page 2: Safety Information

    Safety information •Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the production construction. •This package contains small items and plastic bags that should be kept away from children. •Keep assembly area at least 6 ft.

  • Page 3: Parts List

    Parts List Description Part# Label Image Post GZ1080XXX01 Left cross beam of long GZ1080XXX02 side Right cross beam of long GZ1080XXX03 side Left cross beam of shot GZ1080XXX04 side Right cross beam of shot GZ1080XXX05 side 3 / 12...
  • Page 4 Description Part# Label Image Beam connector GZ1080XXX06 Corner GZ1080XXX07 cover(Outside) Corner GZ1080XXX08 cover(Inside) Middle beam GZ1080XXX09 connector Slanting bar GZ1080XXX10 connector Left decorative bar GZ1080XXX11 of long side Right decorative GZ1080XXX12 bar of long side Left decorative bar GZ1080XXX13 of short side Right decorative GZ1080XXX14 bar of short side...
  • Page 5 Description Part# Label Image Right big PC panel GZ1080XXX24 Long bar cover GZ1080XXX25 Short bar cover GZ1080XXX26 Left lock plate of GZ1080XXX27 lower slanting bar Right lock plate of GZ1080XXX28 lower slanting bar Left lock plate of GZ1080XXX29 lower middle bar Right lock plate of GZ1080XXX30 lower middle bar...

  • Page 6: Hardware Pack

    Hardware Pack 1 Description Part# Label Image M6*15 Bolt BM06015C M6 Washer UD06C M6*15 Screw SM06015C M6 Wrench W10D Fig.1: Raise up the Base cover(T)and then attach the Post base(S) to the Post(A) by using Screw(CC) and Washer(BB). Fig.2-1：Attach the Left cross beam of long side (B1) and Right cross beam of long side (B2) to Beam connector(C) by Bolt (AA) and Washer (BB).
  • Page 7 Fig.3-1：Attach the Middle beam connector (F) to the Left cross beam of short side (B3) and Right cross beam of short side (B4) by Bolt (AA) and Washer (BB). Fig.3-2： Attach the Middle beam connector (F) to the Left cross beam of long side (B1) and Right cross beam of long side (B2) by Bolt (AA) and Washer (BB).
  • Page 8 Fig.7：Four people and two ladders are needed to assemble during this step. Note1: Two people to assemble the upper end of slanting bar, another two people to assemble the lower end of the slanting bar. Note2: Assemble the middle bar by the same way. Fig.7-1：Attach the upper end of the Slanting bar (K1) to the Top frame (I) by Bolt (AA) and Washer (BB).
  • Page 9 Fig.12：Insert the left small PC panel (M1) to the slot of the Slanting bar (K1) and Middle bar (K2). Assemble the Right small PC panel (M4) and the Middle PC panel (M3) by the same way. Fig.13：Insert the Left PC panel connector (R1) into the slot of Slanting bar (K1) and Middle bar (K2). Assemble the Right PC panel connector (R2) and Middle PC panel connector (R3) by the same way.
  • Page 10 Fig.17-1：Attach the Left decorative bar of long side (H1) to the Right decorative bar of long side (H2) as the fig.17-1 shows. Assemble the decorative bar H3 & H4 by the same way. Fig.17-2.Attach the decorative bar(H1, H2, H3, H4) to the cross beam (B1、B2、B3、B4) as the fig.17-2 shows.
  • Page 11 Spare Hardware Parts Description Part# Label Image M6*15 Bolt BM06015C M6 Washer UD06C M6*15 Screw SM06015C M6*45 Bolt BM06045C 11 / 12...

  • Page 12: Care And Maintenance

    Important Please do not return this product to the store. For technical assistance or replacement parts, please call our customer service department at 1 (866) 578-6569 for anytime or email to customer.care@sunjoygroup.com Care & Maintenance •Before using, clean the product completely with a soft, dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water;...
