- Page 1 Installation and operating instruction Room device WWP-RG1 83316002 1/2019-08...
-
Page 2: Table Of Contents
Installation and operating instruction Room device WWP-RG1 User instructions ...................... 3 1.1 Target group ........................ 3 1.2 Symbols .......................... 3 1.3 Guarantee and Liability .................... 4 Safety ............................. 5 2.1 Designated application .................... 5 2.2 Safety measures ...................... 5 2.3 Disposal ......................... 5 Product description ... -
Page 3: User Instructions
Installation and operating instruction Room device WWP-RG1 1 User instructions 1 User instructions This manual forms part of the equipment and must be kept on site. Translation of original Carefully read the manual prior to working on the unit. operating instructions It is supplemented by the installation and operating instructions for the heat pump. -
Page 4: Guarantee And Liability
Weishaupt parts, force majeure, the installation of additional components, which have not been tested with the unit. -
Page 5: Safety
2 Safety 2.1 Designated application The room device in conjunction with the Weishaupt heat pump WWP LS and WWP LB is suitable for the room management of a heating circuit. Up to 3 room devices can be used. Each of these 3 room devices can be assigned to a heating circuit. -
Page 6: Product Description
Installation and operating instruction Room device WWP-RG1 3 Product description 3 Product description 3.1 Type key WWP-RG1 Series: Weishaupt heat pump Type: room device 6-20 83316002 1/2019-08 La... -
Page 7: Technical Data
Temperature in operation 0 ... +50 °C Temperature during transport / storage 0 ... +50 °C relative humidity max 85 %, no dew point Installation elevation max 2000 m Consultation with Weishaupt is required for higher installation elevation. 3.2.3 Dimensions 80 mm 7-20 83316002 1/2019-08 La... -
Page 8: Installation
Installation and operating instruction Room device WWP-RG1 4 Installation 4 Installation Risk of electric shock Working on the device when voltage is applied can lead to electric shock. Isolate the device from the power supply prior to starting any work. - Page 9 Installation and operating instruction Room device WWP-RG1 4 Installation Insert the lugs 1 of the room device into the recesses 2. Click room device into place downwards. Pull off protective foil. 9-20 83316002 1/2019-08 La...
-
Page 10: Operation

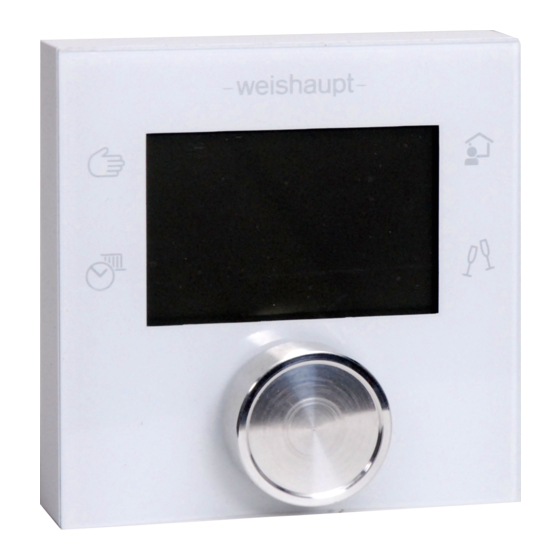

Installation and operating instruction Room device WWP-RG1 5 Operation 5 Operation 5.1 Display and operating unit Keys 1 Manual Operation [ch. 5.3] 2 Absent [ch. 5.4] 3 Party mode [ch. 5.5] 4 Automatic operation [ch. 5.6] Dial knob 5 turn select or change values... -
Page 11: Display
If there is a fault in the system, a flashing warning symbol appears in the dis- play. Notify your heating contractor or Weishaupt Customer Service. 5.2.1 Display room humidity Current room humidity at the room device. Press dial knob for approx. 3 seconds. -
Page 12: Manualoperation
Installation and operating instruction Room device WWP-RG1 5 Operation 5.3 ManualOperation Permanent temperature level according to the operating mode set, independent of the time program. The following operating modes are possible: Summer operation Setback operation Normal operation Comfort mode Press Manual operation Symbols for the operating modes are displayed flashing. -
Page 13: Party Mode
Installation and operating instruction Room device WWP-RG1 5 Operation 5.5 Party mode The heating mode can be temporarily extended (maximal 12 hours). During the time set, comfort mode is activated. Press Party mode The hour display is displayed flashing. Set and confirm hours required using the dial knob. -
Page 14: Set Room Setpoint Temperature
Installation and operating instruction Room device WWP-RG1 5 Operation 5.7 Set room setpoint temperature Room setpoint temperature can be changed in each operating mode (except in summer operation). Press dial knob. Display changes to the the setting of the room setpoint temperature. -
Page 15: Service Level
Installation and operating instruction Room device WWP-RG1 5 Operation 5.8 Service level 5.8.1 Check assignment The heating circuit to which the room device is assigned can be displayed with parameter 0F . Press Manual operation and Automatic operation simultaneously for ap- prox. 2 seconds. -
Page 16: Set Brightness In Setting Mode
Installation and operating instruction Room device WWP-RG1 5 Operation 5.8.3 Set brightness in setting mode Adjust the brightness of the display in setting mode. Setting range: 0 ... 30 Factory setting: 30 Press Manual operation and Automatic operation simultaneously for ap- prox. 2 seconds. -
Page 17: Commissioning
Installation and operating instruction Room device WWP-RG1 6 Commissioning 6 Commissioning Observe installation and operating manual of heat pump. The room device must be assigned to a heating circuit. If the room device has already been assigned to a heating circuit, the standard dis- play appears. -
Page 18: Fault
Installation and operating instruction Room device WWP-RG1 7 Fault 7 Fault If the room device con not find the heating circuit assigned, a fault message ap- pears indicating the heating circuit. Example: Fault heating circuit 1 Activate heating circuit Select expert level. -
Page 19: Key Word Index
Installation and operating instruction Room device WWP-RG1 8 Key word index 8 Key word index Absence ................ 12 Operating panel .............. 10 Access................ 15, 17 Operating unit.............. 10 Adjustment ................ 15 Ambient conditions............... 7 Assignment.............. 15, 17 Party mode ................ 13 Automatic operation ............ 13 Protective foil ................. 9 Brightness ................ 16... - Page 20 Max Weishaupt GmbH · 88475 Schwendi Weishaupt close by? Addresses, telephone numbers etc. can be found at www.weishaupt.de We reserve the right to make changes. All rights reserved. The complete program: Reliable technology and prompt, professional service W Burners up to 570 kW...
