Summary of Contents for Weishaupt WEM-RG1

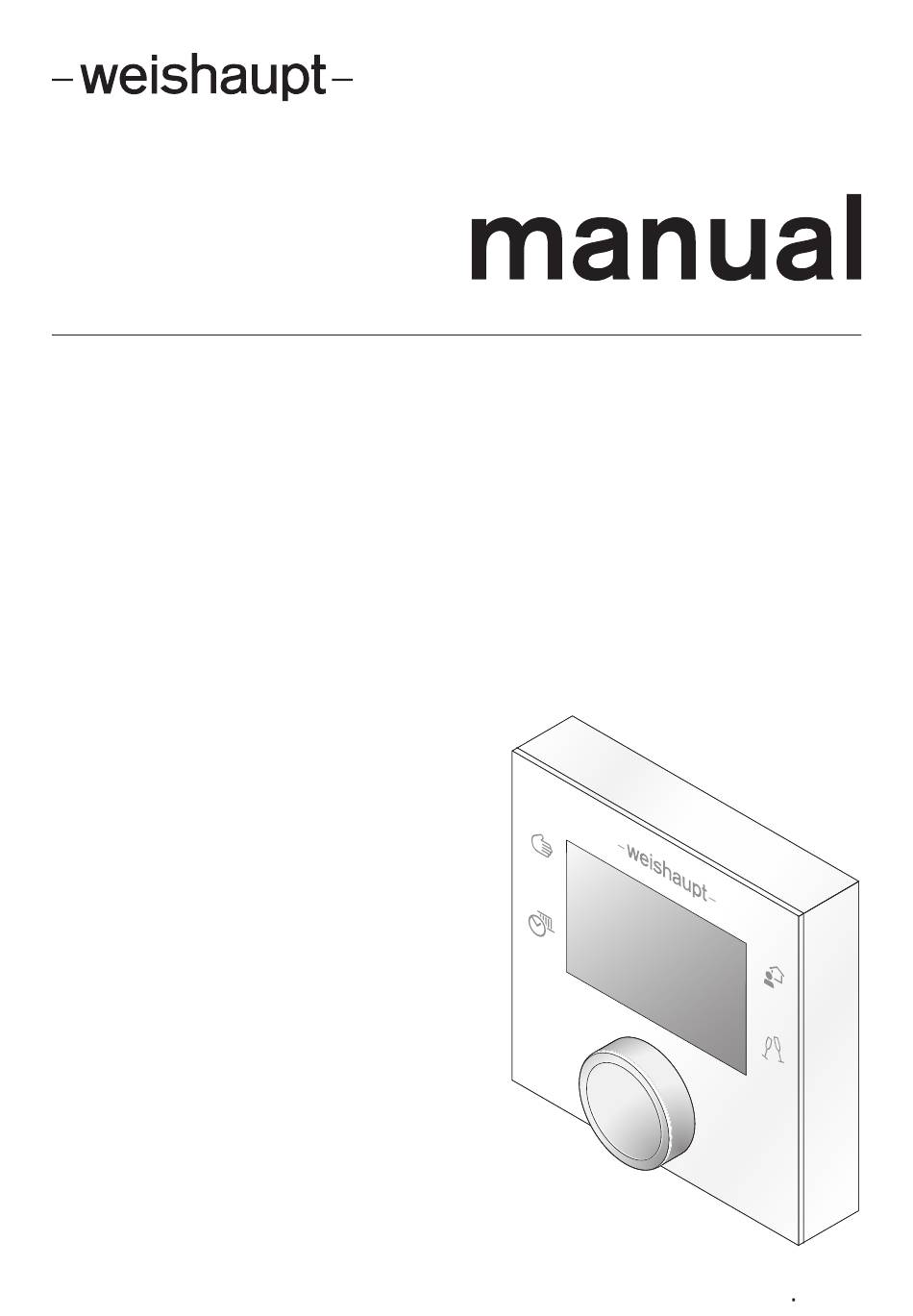

- Page 1 Installation and operating instruction Room device WEM-RG1 83310002 1/2017-11...
-
Page 2: Table Of Contents
Installation and operating instruction Room device WEM-RG1 User instructions ...................... 3 1.1 Target group ........................ 3 1.2 Symbols .......................... 3 1.3 Guarantee and Liability .................... 4 Safety ............................. 5 2.1 Designated application .................... 5 2.2 Safety measures ...................... 5 2.3 Disposal ......................... 5 Product description ... -
Page 3: User Instructions
Installation and operating instruction Room device WEM-RG1 1 User instructions 1 User instructions This manual forms part of the equipment and must be kept on site. Translation of original Carefully read the manual prior to working on the unit. operating instructions It is supplemented by the installation and operating instructions for the condensing unit. -
Page 4: Guarantee And Liability
Weishaupt parts, force majeure, the installation of additional components, which have not been tested with the unit. -
Page 5: Safety
2 Safety 2 Safety 2.1 Designated application The room device in conjunction with the Weishaupt Energy Management WEM is suitable for the operation of a heating circuit. The unit should only be used in enclosed rooms. The installation location must comply with local regulations and must be frost-proof. -
Page 6: Product Description
Installation and operating instruction Room device WEM-RG1 3 Product description 3 Product description 3.1 Type key WEM-RG1 … Type: Weishaupt Energy Management Type: Room device basic version … Version 6-20 83310002 1/2017-11 La... -
Page 7: Technical Data
Installation and operating instruction Room device WEM-RG1 3 Product description 3.2 Technical data 3.2.1 Electrical data Voltage supply DC 15 … 30 V Consumption max 0.7 W Type of protection IP 20 3.2.2 Ambient conditions Temperature in operation 0 ... +50 °C Temperature during transport / storage 0 ... -
Page 8: Installation
Installation and operating instruction Room device WEM-RG1 4 Installation 4 Installation Risk of electric shock Working on the device when voltage is applied can lead to electric shock. Isolate the device from the power supply prior to starting any work. - Page 9 Installation and operating instruction Room device WEM-RG1 4 Installation Pull off protective foil. 9-20 83310002 1/2017-11 La...
-
Page 10: Operation
Installation and operating instruction Room device WEM-RG1 5 Operation 5 Operation 5.1 Display and operating unit Keys 1 Manual Operation [ch. 5.3] 2 Absent [ch. 5.4] 3 Party mode [ch. 5.5] 4 Automatic operation [ch. 5.6] Dial knob 5 turn select or change values... -
Page 11: Display
If an interlocking fault occurs, the warning symbol flashes, the system goes to lock- out. Notify Weishaupt Customer Service or your heating contractor. Service note If the service interval of the condensing boiler has been exceeded, an spanner wrench appears in the display. -
Page 12: Manualoperation
Installation and operating instruction Room device WEM-RG1 5 Operation 5.3 ManualOperation Permanent temperature level according to the operating mode set, independent of the time program. The following operating modes are possible: Summer operation Setback operation Normal operation Comfort mode Press Manual operation Symbols for the operating modes are displayed flashing. -
Page 13: Party Mode
Installation and operating instruction Room device WEM-RG1 5 Operation 5.5 Party mode The heating mode can be temporarily increased (maximum 23 hours). During the time set, comfort mode is activated. Press Party mode The hour display is displayed flashing. Set and confirm hours required using the dial knob. -
Page 14: Set Room Setpoint Temperature
Installation and operating instruction Room device WEM-RG1 5 Operation 5.7 Set room setpoint temperature Room setpoint temperature can be changed in each operating mode (except in summer operation). Press dial knob. Display changes to the the setting of the room setpoint temperature. -
Page 15: Service Level
Installation and operating instruction Room device WEM-RG1 5 Operation 5.8 Service level 5.8.1 Check assignment The heating circuit to which the room device is assigned can be displayed with parameter 0F . Press Manual operation and Automatic operation simultaneously for ap- prox. 2 seconds. -
Page 16: Set Brightness In Setting Mode
Installation and operating instruction Room device WEM-RG1 5 Operation 5.8.3 Set brightness in setting mode Adjust the brightness of the display in setting mode. Setting range: 0 ... 30 Factory setting: 30 Press Manual operation and Automatic operation simultaneously for ap- prox. 2 seconds. -
Page 17: Key Word Index
Installation and operating instruction Room device WEM-RG1 6 Key word index 6 Key word index Absence ................ 12 Party mode ................ 13 Access................... 15 Protective foil ................. 9 Adjustment ................ 15 Ambient conditions............... 7 Assignment................ 15 Room sensor................ 15 Automatic operation ............ 13 Room setpoint temperature.......... 14 Room temperature.............. 15 Brightness ................ 16... -
Page 18: Notes
Installation and operating instruction Room device WEM-RG1 7 Notes 7 Notes 18-20 83310002 1/2017-11 La... - Page 19 83310002 1/2017-11 La...
- Page 20 Max Weishaupt GmbH · 88475 Schwendi Weishaupt close by? Addresses, telephone numbers etc. can be found at www.weishaupt.de We reserve the right to make changes. All rights reserved. The complete program: Reliable technology and prompt, professional service W Burners up to 570 kW...
