JSPORT JB101 User Manual

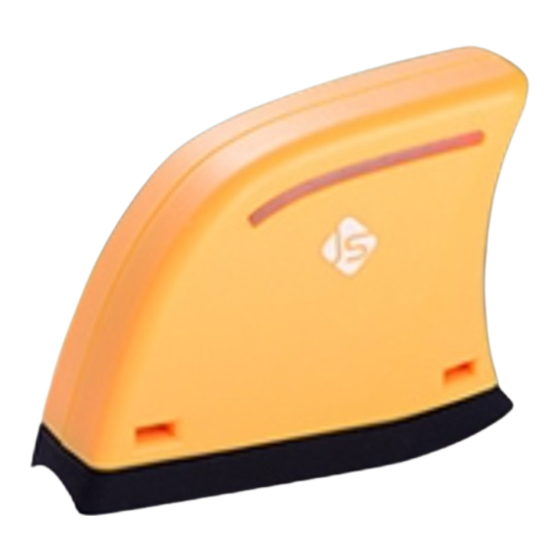

JB101 Speed Meter
2
3
4

Accessories included with your product

8
9
① Magnet alignment mark
② LED indicator
③ Cable tie through hole
④ Rubber stand
⑤ Indicator, battery direction
⑥ Battery holder
⑦ Battery ribbon
⑧ Spoke magnet
⑨ Battery
⑩ Cable tie
安裝示意圖

Installation diagram

Install Battery

安裝電池
a a
b
b
C
d
d
e
e
1
3
6
5
10
CR2450
磁鐵對準點
LED 指示燈
束帶孔
橡皮底座
電池方向圖
電池座
電池拉帶
感應磁鐵
電池
束帶
Remove JB101 rubber stand 打開橡皮底座
Pull out battery Ribbon 拉出電池拉帶,
C
Pull out the battery
ribbon, then following
battery indicator
direction, push battery
into battery holder.
LED light flashing when LED燈亮起,代表
battery is installed correctly 電池安裝正確
Push back the battery ribbon 塞回電池拉帶,
then cover with rubber stand 闔上橡皮底座
at same time
Visit our JSports website
f
7
g
配件
h
i
j
保持電池拉
帶在殼外,注
k
意殼底部電
池標誌, 電池
保持如圖示
方向塞入電
池座中
User Manual

Install JB101 on Bike

f
Put JB101 on chain stay,
place cable tie on from left
side (inside), keep"JS"logo
facing outside.
g
Tighten the cable tie, make
sure the cables allow some
space for tilt angle
adjustment
h
Loosen the magnet screw
and basement, please note
that the magnet basement's
groove fits with spoke, then
lock magnet screw and
basement together
i
Adjust magnet to align
triangle mark on JB101 then
tight the screw to lock magnet
location
Put assembly gauge between
magnet and JB101 sensor, close to
the magnet.
j
Push JB101 on the top to tile it
until touch the assemble gauge.
Blister Remove "blister" then
泡殼
spinning bicycle wheel then check
the sensor LED light flashing or
not.
gauge
距離量規
If flashing then keep the location
5mm
and angle of JB101, tighten both
of cables tie.
JB101 靠緊泡殼上量規後 , 抽出泡
k
Keep magnet and
JB101 on the same
direction
Make sure JB101 and
magnet are both tightly
locked
Completed
installation
安裝 JB101 上單車
由 JB101 後方穿
入束線帶,放置於
單車後下叉桿
將兩條束線帶束
上,不要束到最
緊,JB101於叉桿
上需要可以左右
滑動
取出磁鐵,鬆開磁
鐵與磁鐵座,注意
凹槽
磁鐵座上有
將磁鐵座上的凹
槽對上單車輪圈
鋼絲, 磁鐵與磁鐵
座對鎖
轉動輪圈,將磁鐵
移至 JB101 附近,
移動磁鐵至磁鐵
鎖緊
對準點 ,
磁鐵 ,固定位置
於磁鐵和
JB101中間置
入距離量規,
推JB101傾斜
到貼緊量規
,抽出泡殼量規,
轉動輪圈,確認
LED燈循序亮
起,定位完成,
將 束線帶綁
緊
殼
保持上述定位
位置
旋緊磁鐵螺
絲
拉緊束線帶
剪掉多餘束帶
安裝完成
