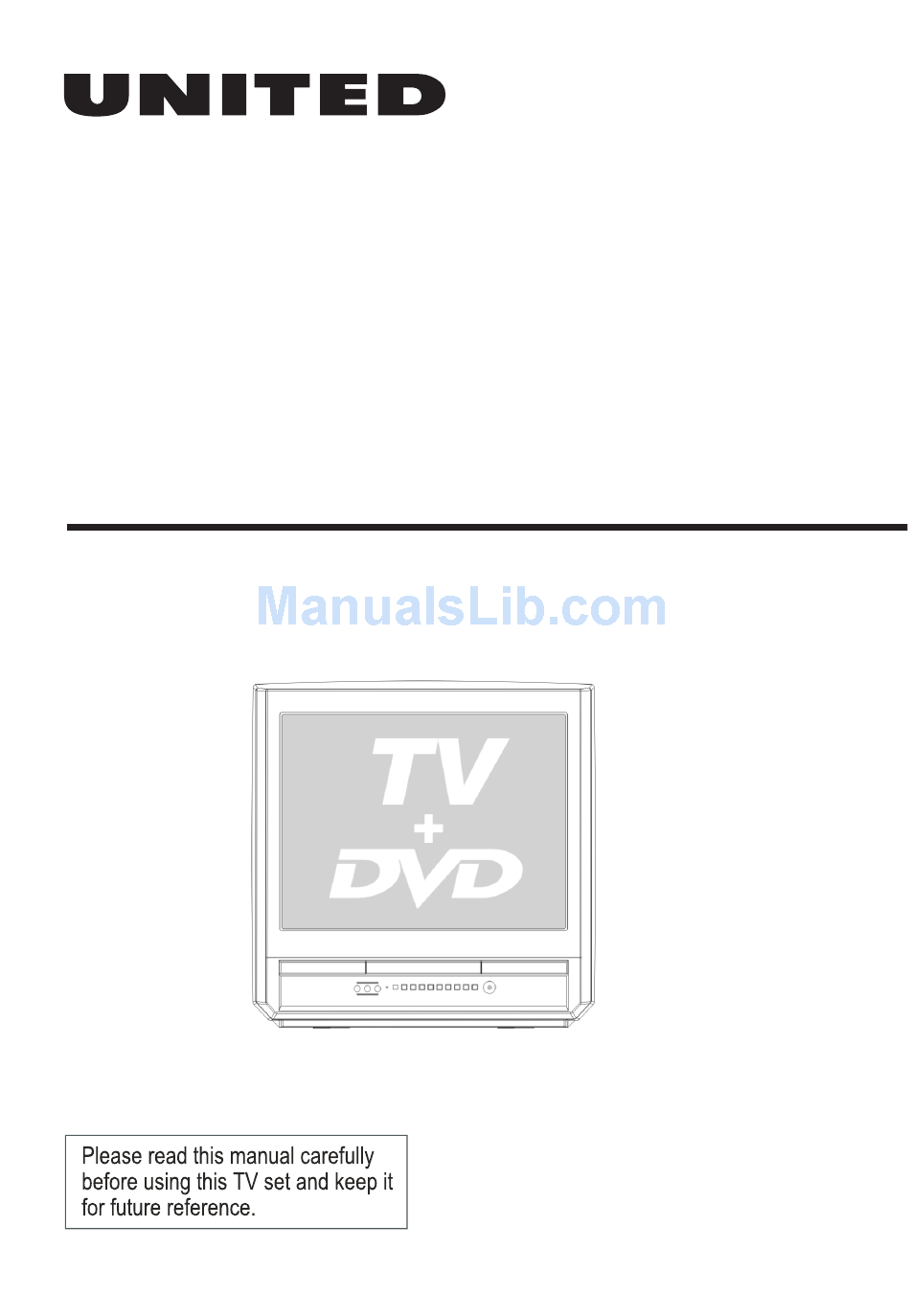

- Page 1 TVD5038S COMBINED 21" TV AND DVD PLAYER OWNER'S MANUAL...
-
Page 2: Table Of Contents
Please read this manual carefully before using this TV set and keep it for future reference. CONTENTS Before Operation Warning and cautions...2 Using the remote control...4 Function buttons and external sockets...5 Front panel of the TV set...5 Rear panel of the TV set...5 Installation...6... -
Page 3: Warning And Cautions
Warning and cautions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE Uninsulated Dangerous Voltage, that may be of sufficient magnitude to constitute a risk of electric shock, is present within the cabinet of this unit. - Page 4 TV set. 6. If the TV set is not going to be used for a long time, or there is a severe thunder & Lighting storm, we recommended that you disconnect the TV set from the AC power outlet and remove the aerial plug.
-
Page 5: Using The Remote Control
36.DVD Zoom Button 37.Index 38.Hold 39.Teletext Mode/Swap Button 40.Time / Subcode 41.Reveal 42.Cancel 43.Enlarge (NO FUNCTION) Teletext On / Off 46.Mix 47.Red Button / TV Sound Menu 48.Green Button / TV Picture Menu 49.Yellow Button / TV Sleep Time Menu 50.Blue Button... -
Page 6: Function Buttons And External Sockets
Stop the DVD The DVD Player Menu Signal Receiver Open/close the DVD TV/AV/DVD Switching Channel Position up/down Volume up/ down Rear panel of the TV set Digital audio coaxial output terminal DVD EXT COAXIAL TV EXT DVD SCART Terminal TV SCART Terminal... -
Page 7: Installation
Installation Aerial connection To connect the aerial, plug the aerial lead into the aerial socket on the rear of the unit. You can use an outdoor aerial. However, if you use an indoor aerial the quality of the reception may be reduced and adjustment of the aerial may be required when changing programmes. -
Page 8: Switching On/Off The Tv Set
POWER MENU POWER Switching on/ off the TV set 1 To turn on the TV/DVD, press the Power button on the front panel. 2 If the indicator is lit in red, press the P+/P- button on the panel or control, the power indicator will become green. -
Page 9: Tv Set Up
2. Press P+/- buttons to select GAME, then press V-/+ buttons to enter game. 3. Use MENU to rotate clockwise, P+ button to rotate anti-clockwise. Use V- button to move left, V+ button to move right. 4. Press TV/AV button to quit the game. SETUP LANG. ENGLISH BLUE BACK... -
Page 10: Calendar
Set up function TV Set Up MENU (continued) Calendar function Press TV MENU 3 times until SETUP menu appears. 2. Press P+/- buttons to select calendar. 3 Press the P+/- buttons to select theYEAR/MONTH/DAY, press the V-/+ buttons to set or adjust the YEAR/MONTH/ DAY . -
Page 11: Searching Channels
Searching Channels Tuning The unit can tune all the channels automatically. Auto Search 1 Press the TV MENU 4 times, MENU MENU MENU Automatic search until the TUNE menu appears. 2 Press the P+/- buttons to select AUTO SEARCH. 3 Press V+ button to start auto search. -
Page 12: Program Skip
1 Press the P+/- buttons to select the desired program to be skipped. 2 Press the TV MENU 4 times until the TUNE menu appears. 3 Press the P+/- buttons to select "SKIP". 4 Press the V-/+ buttons to turn the SKIP function "ON". -
Page 13: Program Exchange
(continued) Exchange After auto search there may be some Program numbers duplicated and some blank. To re-order the channels: 1 Press the TV MENU 5 times until the PROG.EXCHANGE menu appears. 2 Press P+/- buttons to select PROG.I, then press the V+/- buttons to set desired program. -
Page 14: Manual Fine Tune
1Press the P+/- buttons or PROGRAM NUMBER 0-9 button to choose desired channels. 2 Press the TV MENU 4 times until the TUNE menu appears. 3 Press the P+/- buttons to select " FINE TUNE". 4 Press V-/+ buttons to adjust for the best possible picture and sound results. -
Page 15: Watching Tv
Watching TV You can watch TV program in a preset channel. Watching TV program ¹ Û ¿ ´ µ ç Ê Ó ½ Ú Ä ¿ MENU MENU MUTE SLEEP Select the desired program 1 Using "Program number" buttons Directly enter the program number with the numeric keypad on the remote control. -
Page 16: Program Swap
Watching TV (continued) Program Swap TXT MODE/SWAP Program swap Swap function enables quick swap to the last watched program. 1 Suppose the channel number you used just now is 8 and the channel number you are using is 18 (as shown in the figure). -
Page 17: Teletext
PRESS THE INDEX BUTTON TO GO TO THE INDEX PAGE OF TELETEXT. CANCEL PRESS ' ' BUTTON ALLOW YOU TO SEE THE TV PICTURE WHILE REMAINING IN TELETEXT MODE. THE TV MODE TEMPORARY. PRESS THE BUTTON AGAIN TO RETURN TO THE TELETEXT. -
Page 18: Dvd System Setup
16 9 You may select this if you have a widescreen (16:9) TV . Back bars may still appear above and below the picture even if using a widescreen TV. This is because some film directors prefer to use ultra widescreen aspect ratios e.g. - Page 19 SCREEN SAVER: If the screen saver is on,then there will be an animated picture of DVD on the screen whenever the DVD player is idle for more than 3 minutes . ..General Setup Page.. TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Off ..General Setup Page..
- Page 20 The Preference Page is only available when there is no disc in the player. These settings are applied consistently to all discs which are inserted and played. TV TYPE: This player supports different TV output, including MULTI(Auto), NTSC, and PAL systems.
- Page 21 DVD player back to the manufacturers original settings. Press ENTER SETUP to perform the reset. Note: ENTER/PLAY Some functions may not be available depending on the type of disc. Resets all settings ..Preference Page.. TV Type Auto Parental Password Default Reset...
-
Page 22: Basic Playback
Basic Playback Basic Playback Preparations Press the TV/AV/DVD button on the front panel or TV/DVD on the remote control to enter the DVD status. Press the TV/AV/DVD button on the front panel or TV/DVD on the remote control again to return to the TV mode. -
Page 23: Special Function Playback
Special Function Playback JPEG DISC PLAYBACK When a disc containing standard JPEG picture files is inserted into the player, a navigation menu will be displayed automatically. Use the UP and DOWN cursor buttons to select a file then press PLAY/ENTER. The slide show will commence. Press PREVIOUS or NEXT to move between pictures. -
Page 24: Advanced Playback
Advanced Playback Advanced Playback IMPORTANT NOTE: ALL DESCRIBED FUNCTIONS FOR DVD DISCS. IF YOU PLAY OTHER FORMAT DISC, THE OPERATION AND DISPLAY ON SCREEN MAY DIFFER. SUBTITLE Press " SUBTITLE ", the screen will display "SUBTI- TLE 01/XX XXXXX", "01" indicates the ordinal number of this language;... -
Page 25: Convenient Picture Control Functions
You can quickly select the desired picture mode from three factory preset modes and one customized mode. How to customize your own picture status(PP) 1 Press the TV MENU until the PICTURE menu MENU 2 Press the P+/- buttons to select... -
Page 26: Playable Discs
Playable Discs The following discs can be played: You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they may be labelled as above. The performance of CD-R or CD-RW discs depends on the way they are burned. In some instances they may perform poorly or even not play all. -
Page 27: Disc Protection And Dvd Characteristics
Disc Protection and DVD Characteristics Compare DVD disc with other discs: Encode Digital/MPEG method Single- Double side -side Capacity single- single -layer layer 4.7G 8.5G Playing Time minutes minutes 12cm/8cm Disc diameter Horizontal More than 500 line resolution Picture proportion Subtitle Language 8 kinds... -
Page 28: Others Connection To The External Audio And Video Equipment
Connecting the TV set to the other video and audio equipment Connecting to the other video and audio equipment You can attach optional equipment such as another TV or other audio amplification equipment to the scart/digital coaxial sockets at the rear of the set to enjoy higher quality sound and picture. -
Page 29: Troubleshooting Guide
Co n n e c t in g t h e T V s e t t o t h e o t h e r v id e o a n d a u d io e q u ip m e n t Connecting to the other video and audio equipment You can connect the DVD,VCR and stereo system to the output to enjoy a higher quality of picture and sound effect. an additional TV DVD, VCD or other units Video output... -
Page 30: Specifications
Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player will not play that disc. This Region number of this DVD Player is . TVD5038S 50Hz...
