Installation Instructions

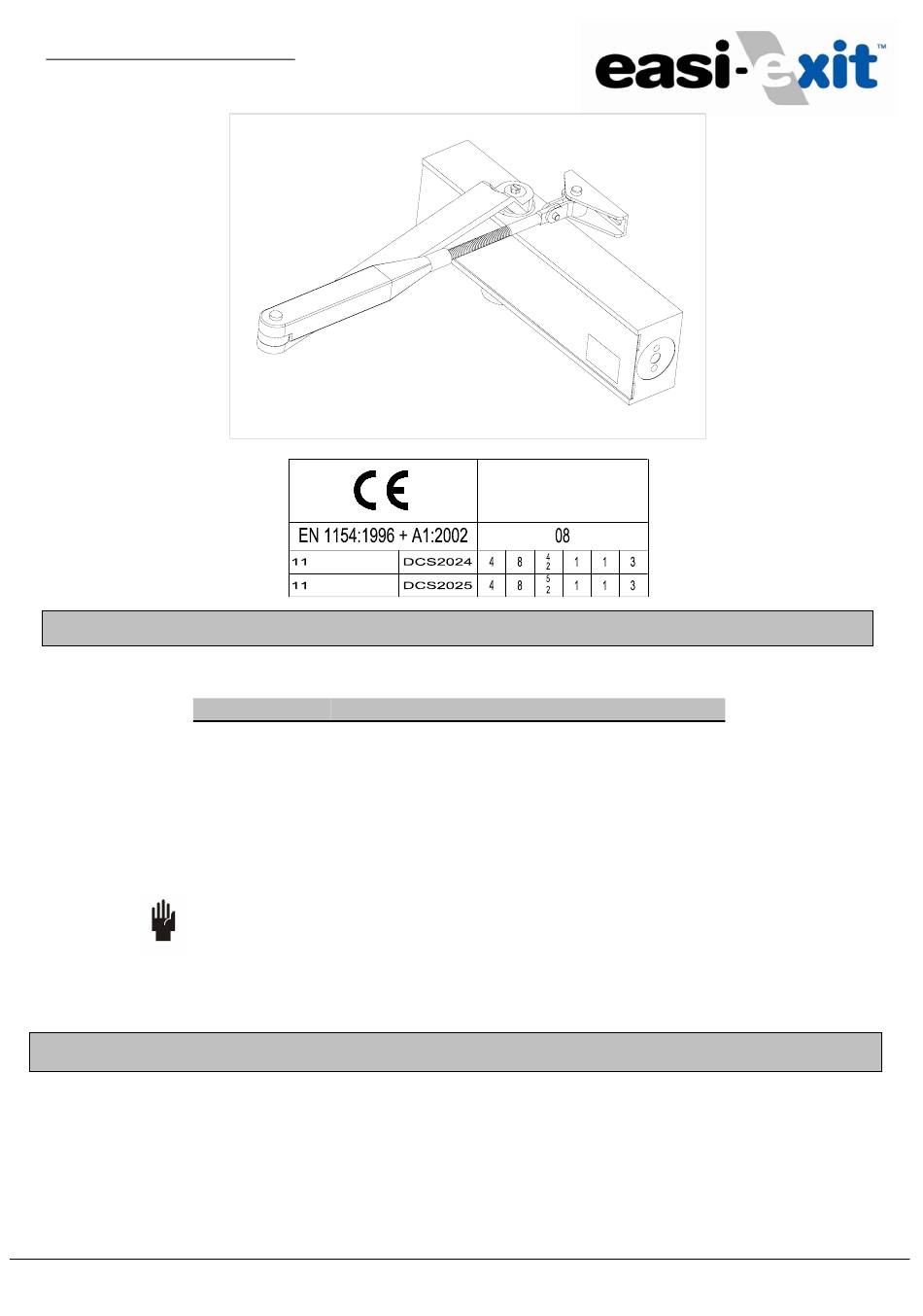

Overhead Door Closer – Model DCS2024/25
Selecting the correct door closer to suit door size
*Minimum size for use on fire doors
This product is non handed and can be fitted on both left handed and right handed doors.
Maintenance
Check that the door closer closes the door correctly and adjust as necessary. Ensure fixing screws are tight and periodically
apply light oil or grease to arm knuckle joint
PLEASE LEAVE THESE INSTRUCTIONS WITH THE END USER
Copyright © 2008 Eurospec
21 - CPD - AD0198
21 - CPD - AD0199
IMPORTANT INFORMATION
Power Size
Max. Width of Door
2
3*
4
5
6
Important notes:
Minimum size 3 MUST be used on fire doors
Hold open arms must NOT be used on fire doors
Tel: +44 (0) 1254 274100
Fax: +44 (0) 1254 274111
Web: www.eurospec.co.uk
Failure to install this product as per these instructions &
dimensions shown on template will negate guarantee
Eurospec
Architectural Hardware Ltd
Stancliffe Street, Mill HIll
Blackburn, BB2 2QR
Max. Mass of Door
850mm
950mm
1100mm
1250mm
1400mm
40Kg
60Kg
80Kg
100Kg
120Kg
Page 1
Door Closer – Model DCS2024/25 Rev.1
Advertisement
Table of Contents
Related Manuals for Easi-Exit DCS2024
Summary of Contents for Easi-Exit DCS2024
- Page 1 Installation Instructions Overhead Door Closer – Model DCS2024/25 Eurospec Architectural Hardware Ltd Stancliffe Street, Mill HIll Blackburn, BB2 2QR 21 - CPD - AD0198 21 - CPD - AD0199 IMPORTANT INFORMATION Selecting the correct door closer to suit door size Power Size Max.
- Page 2 7. Check for correct closing & latching speeds and Fig. 3 adjust if necessary. Adjust backcheck as required. (See Fig.6) 8. Stick easi-exit logo onto indent of slide plate and refit to door closer. (See Fig. 6) Adjust if required No.2 Latching Speed...
- Page 3 6. Fit spindle cover cap to upperside of closer. (See Fig. 5) 7. Check for correct closing & latching speeds and adjust if necessary. Adjust backcheck as required. (See Fig.6) 8. Stick easi-exit logo onto indent of slide plate and refit to door closer. (See Fig. 6) No.2 Latching Speed Delayed Action No.1 Closing Speed...
- Page 4 6. Fit spindle cover cap to underside of closer. (See Fig. 5) Fig. 3 7. Check for correct closing & latching speeds. Adjust if necessary. (See Fig. 6) 8. Stick easi-exit logo onto indent of slide plate and refit to door closer. (See Fig.6) No.2 Latching Speed No.1 Closing Speed...
