Installation Instructions

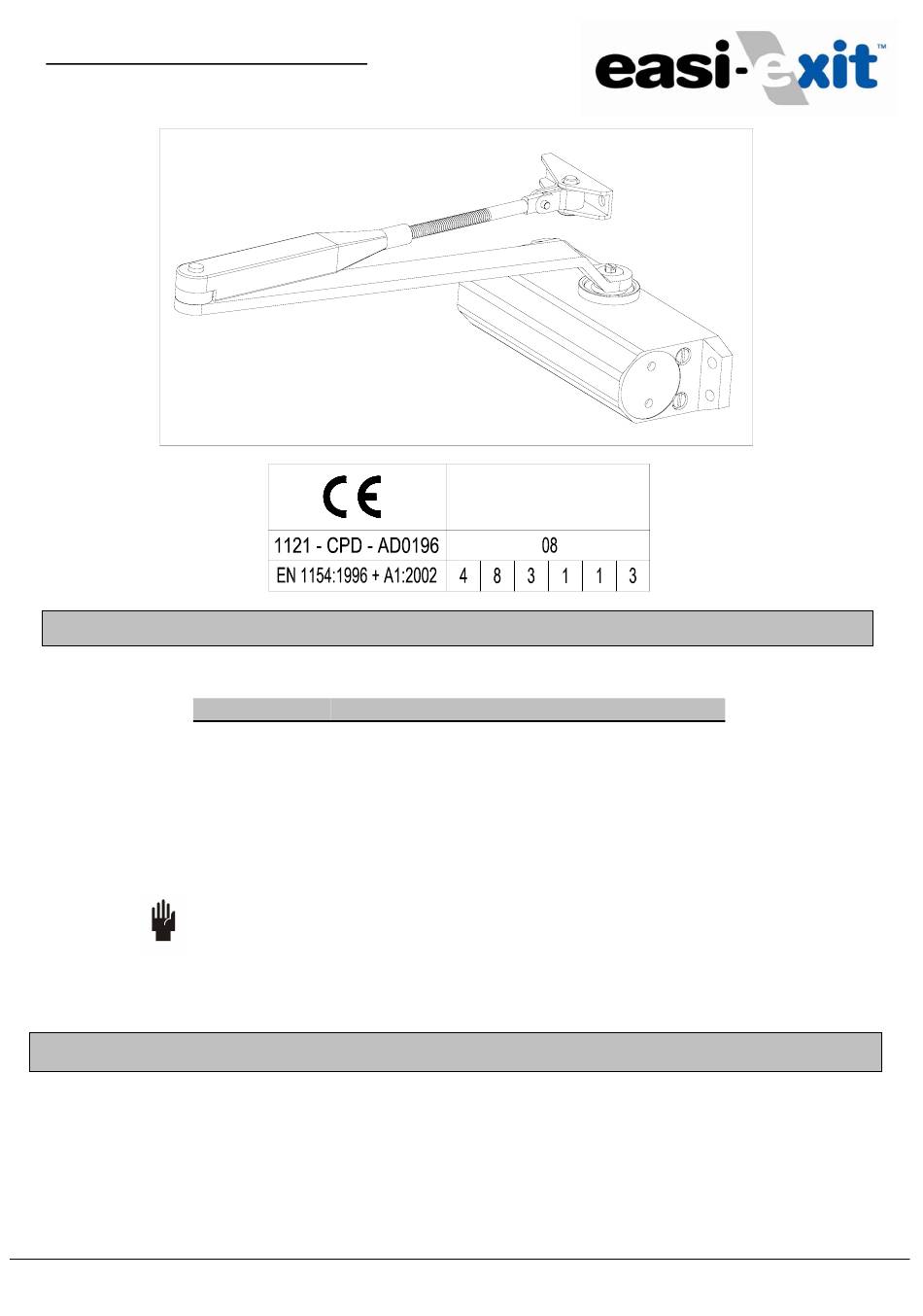

Overhead Door Closer – Model DCF2003
Selecting the correct door closer to suit door size
*Minimum size for use on fire doors
This product is non handed and can be fitted on both left handed and right handed doors.
Maintenance
Check that the door closer closes the door correctly and adjust as necessary. Ensure fixing screws are tight and periodically
apply light oil or grease to arm knuckle joint
PLEASE LEAVE THESE INSTRUCTIONS WITH THE END USER
Copyright © 2008 Eurospec
IMPORTANT INFORMATION
Power Size
Max. Width of Door
2
3*
4
5
6
Important notes:
Minimum size 3 MUST be used on fire doors
Hold open arms must NOT be used on fire doors
Tel: +44 (0) 1254 274100
Fax: +44 (0) 1254 274111
Web: www.eurospec.co.uk
Failure to install this product as per these instructions &
dimensions shown on template will negate guarantee
Eurospec
Architectural Hardware Ltd
Stancliffe Street, Mill HIll
Blackburn, BB2 2QR
Max. Mass of Door
850mm
950mm
1100mm
1250mm
1400mm
40Kg
60Kg
80Kg
100Kg
120Kg
Page 1
Door Closer – Model DCF2003 Rev.1
