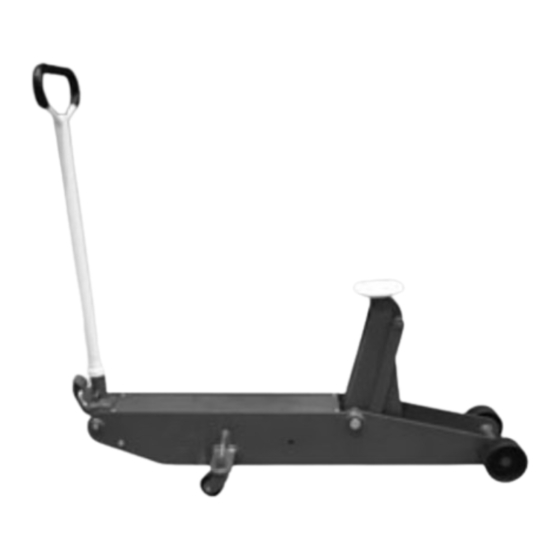

Trolley jack premier viking 10 tonne

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS JACK CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.
1. SAFETY PRECAUTIONS
3
Ensure the jack is in sound condition and good working order.
Take action for immediate repair or replacement of damaged
parts. Use genuine parts only. The use of unauthorised parts
may be dangerous and will invalidate the warranty.
3
Locate the jack in a suitable, well lit work area.
3
Keep work area clean and tidy and free from unrelated materials.
3
Use jack on level and solid ground, preferably concrete. Avoid
tarmacadam as jack may sink in.
3
Place wedges under wheels of vehicle (but ensure wheels of
jack can move freely).
3
Ensure the vehicle handbrake is engaged, engine is switched off
and transmission is in 1st or reverse gear ("PARK" if automatic).
3
Ensure minimum distance of 0.5m between vehicle and static
objects such as doors, walls, etc., to allow for vehicle tilting.
3
Ensure there are no passengers in the vehicle.
3
Ensure all non-essential persons keep a safe distance whilst the
jack is in use.
3
Only place jack under those lifting points recommended by
vehicle manufacturer (see vehicle handbook).
3
Check the lifting point is stable and centred on the jack saddle.
3
Ensure the jack wheels are free to move and that there are no
obstructions.
p
DANGER: Use the jack for lifting only, NOT for supporting the
lifted load.
3
Use suitable capacity axle stands under the vehicle before
proceeding with any task.
3
Ensure there are no persons or obstructions beneath the vehicle
before lowering.
3
Use a qualified person to maintain or repair the jack hydraulic system.
7
DO NOT operate the jack if damaged.
7
DO NOT allow untrained persons to operate the jack.
7
DO NOT exceed the rated capacity of the jack.
7
DO NOT allow the vehicle to move while supported by the jack,
nor use the jack to move the vehicle.
7
DO NOT jack vehicle if there is a risk of spillage of fuel, battery
acid, or other dangerous substance.
7
DO NOT work under the vehicle until axle stands have been
correctly positioned.
7
DO NOT use the jack for purposes other than that for which it is
designed.
7
DO NOT top up hydraulic system with brake fluid. Use hydraulic
jack oil only.
7
DO NOT adjust the safety overload valve.
3
When not in use store jack, fully lowered, in a safe, dry,
childproof area.
2.
SPECIFICATIONS
Model ........................................................................... 10010SL
Capacity ........................................................................10tonne
Min. Saddle Height .........................................................160mm
Max. Saddle Height ........................................................580mm
Max. Chassis Height .......................................................280mm
Length ...........................................................................1380mm
Weight ...............................................................................106kg
3.
ASSEMBLY & PURGING
3.1.
Fit the handle into the handle socket as shown in fig.1 ensuring
that it is fully inserted. Retain the handle by screwing in the
handle retaining screw (see fig.1). It may be necessary to lift the
handle slightly in order to get the plain end of the screw to enter
the slot at the bottom of the handle.
3.2.
Before using the jack for the first time, purge the hydraulic circuit
in order to eliminate any air in the system. To do this, open the
INSTRUCTIONS FOR:
P RE MIE R VIKING 1 0 TONNE
10010SL
MODEL No:
release valve by lifting the handle by about 8mm and turning
it through 45° as shown in fig.2A&B. Keeping the handle in
this position pump the foot pedal through its full travel 6 or 7
times as indicated in fig.2C. Rotate the handle back to the
normal position where it will drop down to the locked
position.
3.3. Place a few drops of hydraulic jack oil on the pump piston
and pump the handle several times to distribute the oil.
Thoroughly lubricate all moving parts.
fig.1
fig.2
Original Language Version
TROLLEY JACK
10010HL
Issue: 1 - 18/12/09

Advertisement

loading

Summary of Contents for Sealey 10010SL

  • Page 1 10010SL MODEL No: Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
  • Page 2 3) The oil is topped up via the filler screw which is situated on top of the oil reservoir as shown in fig.3. 4) The oil level should be 45mm below the filler hole. NOTE: Use a good quality jack oil, such as SEALEY HYDRAULIC JACK OIL. WARNING: DO NOT use brake fluid, or any fluid other than hydraulic jack fluid as this will cause serious damage to the jack and will invalidate the warranty!
