Summary of Contents for Sentinel Kinetic 200Z
- Page 1 Sentinel Kinetic 200Z & 200ZH 300Z & 300ZH Installation & Commissioning Model Stock Ref. N° 200Z 448733 200ZH 449540 300Z 447801 300ZH 449536 PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT. Copyright © 2009 Vent-Axia Limited. All rights reserved.
- Page 2 24. IF THE DUCTWORK OR CONDENSATE PIPE PASSES THROUGH AN UNHEATED LOFT VOID OR SIMILAR LOCATION 8. THESE UNITS MUST BE EARTHED. IT SHOULD BE INSULATED. 9. SENTINEL AIR HANDLING UNITS ARE DESIGNED AND SPECIFIED FOR USE WITH VENT-AXIA CONTROLS, DAMPERS, GRILLES AND ACCESSORIES. Disposal 10.
-
Page 3: Table Of Contents
Contents UK Building Regulations (ADF) Product Description Declaration of Conformance Sentinel Kinetic 200Z, 200ZH & 300Z, 300ZH ......4 The Sentinel Kinetic conforms to the 2010 Building Technical Data Regulations (Approved Document F - Means of Ventilation) Overview ..................6 for installed performance of a ducted mechanical extract Before Installation of the Unit ............ -
Page 4: Product Description

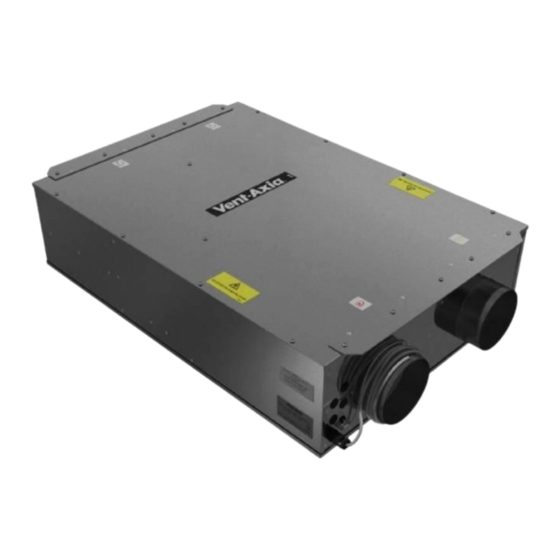

Sentinel Kinetic 200Z, 200ZH & 300Z, 300ZH Summer By Pass. The Sentinel Kinetic is fitted with a Summer By Pass (SBP) and will provide energy-free heating and energy-free cooling when the house temperature and ambient temperature allows. -
Page 5: Technical Data
Technical Specification & Installation Technical Data Performance Sentinel Kinetic 200Z & 200ZH Sentinel Kinetic 300Z & 300ZH Airflow See Graph below See Graph below Power AC Voltage Input 220-240 V AC (single phase) AC Frequency Input 50 Hz nominal Supply Fuse... -
Page 6: Overview
Take into consideration the position of the electrical services and the condensate drain. Ensure there is adequate access for installation, operation and maintenance. It is recommended that a local disconnection mains and sensor terminal box is installed within 1m of the unit to facilitate future maintenance. Sentinel Kinetic MVHR Installation & Commissioning... -
Page 7: Installation Of Unit Brackets
, 200 Z & ZH = 26Kg - 300Z & 300ZH = 38Kg Note: Security fixing Note: Security fixing 200Z & 200ZH Note: Security fixing Note: Security fixing 300Z & 300ZH Sentinel Kinetic MVHR Installation & Commissioning... - Page 8 Once the unit is in its located position, the brackets can be moved and secured. Stage 4: Finally, with the unit secure you can now fix the security fixing (as pictured right). Once secured you may proceed with the rest of the installation. Sentinel Kinetic MVHR Installation & Commissioning...
- Page 9 Please Note: In areas where cold conditions inc frost are possible, outlet pipes must be insulated to avoid HepVO Valve and blockage and potentional damage to the unit and Tundish adaptor 32 mm straight waste surroundings. Sentinel Kinetic MVHR Installation & Commissioning...
-
Page 10: Dimensions And Ducting For The Sentinel Kinetic
Technical Specification & Installation Dimensions and Ducting for the Sentinel Kinetic 200Z & 200ZH ( 300Z & 300ZH ) Yellow Green Brown KEY: Yellow Green Brown Airflow Extract Airflow Supply Airflow Intake Airflow Exhaust (Air from room) (Air into room) - Page 11 3. Connect the cable assembly to the Remote Control terminal block (the terminal block is colour coded to match the individual coloured cables and mount onto a single gang recessed wall box with the 2 screws provided. The wired remote Control will automatically be detected. Yellow Black Green Sentinel Kinetic MVHR Installation & Commissioning...
- Page 12 Table 1. If necessary contact Vent-Axia regarding the wiring and fixing of accessories and sensors. Ensure that you use a grommet or gland to protect against potential water ingress. Black Brown Green/Yellow Blue Sentinel Kinetic MVHR Installation & Commissioning...
- Page 13 A Switched Live (LS) may be used to boost the airflow when a light is turned on, for instance in a bathroom or kitchen. Power supplied to the unit via a Switched Fused Spur must be supplied via the same circuit as the LS connecti Sentinel Kinetic MVHR Installation & Commissioning...
-
Page 14: Powering Up The Unit
2 seconds for fast scrolling. Press to activate Boost mode. See page 16 for options. Press and hold for 5 seconds to activate Purge mode. (Press and hold for 5 seconds to cancel Purge). Sentinel Kinetic MVHR Installation & Commissioning... -
Page 15: Start-Up Screens
Start Up Start-up Screens Sentinel Kinetic Version Screen The Sentinel Kinetic Version screen displays the firmware version number for 3 seconds. No adjustments are possible on this screen. Language Screen Language The Language screen displays the language used for the screens. It is typically displayed for 5 seconds, or English longer if changing the setting. - Page 16 ‘take over’ the boost. Flow will return to normal when that device switches off. If a number of different devices are calling for boost flow, the unit will run at boost until the last one has reverted to normal. Sentinel Kinetic MVHR Installation & Commissioning...
- Page 17 This screen is only displayed when the bypass is fitted. Options available are On (default) and Off. Return to the normal display by pressing the button or leave to timeout and return automatically after 2 minutes. Sentinel Kinetic MVHR Installation & Commissioning...
- Page 18 Selectable range is 5C – 20C (14C default). Return to the normal display by pressing the button or leave to timeout and return automatically after 2 minutes. This function will only work when the Summer Mode is set to on. Sentinel Kinetic MVHR Installation & Commissioning...
-
Page 19: Commissioning
The following is attached to the unit and should be used as a check list prior to setting the air flows. Sentinel Kinetic MVHR Installation & Commissioning... -
Page 20: Commissioning Screens
Timeout after 2 minutes Commissioning Screens The commissioning screens enable you to configure the operational settings of the unit. Settings are stored in a non-volatile memory and will be retained irrespective of mains supply breaks. Sentinel Kinetic MVHR Installation & Commissioning... - Page 21 Extract airflow speed for the Extract fan in order to 50 % balance out any differences in ductwork or other installation features. Default Boost speed = 50%. The Boost speed cannot be set above the Cooker Hood speed or below Normal speed setting. Sentinel Kinetic MVHR Installation & Commissioning...
- Page 22 The Low speed cannot be set below 1% or above Normal speed setting. Cooker Hood Supply & Extract Screens Ckr Hood Supply The Cooker Hood Supply & Extract screens are non-functional. Ckr Hood Extract 100% Sentinel Kinetic MVHR Installation & Commissioning...
- Page 23 Setting finishes when the last off minutes for Sun3 are accepted, at which point the screen will now show All Set or holding the button for 3 seconds. Boost On All Set Sentinel Kinetic MVHR Installation & Commissioning...
- Page 24 Internal Humidity Sensor Screen (if fitted) Humidity Sensor The Humidity Sensor screen enables you to switch the Sensor On and adjust the trigger point between 60% and 70 %. (default setting 70%). Sentinel Kinetic MVHR Installation & Commissioning...
- Page 25 Table 2: Boost & Normal Limits – Defaults and Adjustment Range Sensor Humidity Temperature Default (%) Range (%) Default (ppm) Range (ppm) Default (°C) Range (°C) Boost limit 25-90 2000 200-2000 10-35 Normal limit 25-90 1000 200-2000 10-35 Sentinel Kinetic MVHR Installation & Commissioning...
- Page 26 Selectable range: min. = 1, max. = 25, default = 20. Ventwise Input SW4 Momentary Momentary closure (1 sec) starts or stops boost for set time. Selectable range: min. = 15, max. = 30. Default = 25 when Vent-Wise card fitted Sentinel Kinetic MVHR Installation & Commissioning...
- Page 27 The Running Time screen displays the total running time of the unit (in hours). 12345 No changes may be made to this screen. In the event of power failure total time will be retained. Sentinel Kinetic MVHR Installation & Commissioning...
- Page 28 Available options: No (default) and Yes. The default commissioning settings are present when the unit is switched on and can be restored by setting the Restore Defaults screen to Yes Sentinel Kinetic MVHR Installation & Commissioning...
- Page 29 Airflow Mode Dryout Running Time Filter Life Can be set to Urban Suburban and Rural Restore Defaults User Screens Set Clock Summer Mode Summer Mode On Indoor Temp 21 C Outdoor Temp 14 C Sentinel Kinetic MVHR Installation & Commissioning...
-
Page 30: Maintenance
Maintenance Maintenance Heat recovery units, by their very nature, require regular maintenance. The Sentinel Kinetic 200Z,200ZH,300Z,300ZH have been designed to facilitate access to enable maintenance to be carried out easily. WARNING THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE. - Page 31 Stage 1: Isolate the mains power supply and remove the Filter access Panels and Filters. Undo the securing screws and remove the Cover . Jubilee Clip Condensate Pipe Condensate Tray Stage 2: Loosen the Condensate Pipe Jubilee Clip and remove Pipe from Condensate Tray. Sentinel Kinetic MVHR Installation & Commissioning...
- Page 32 Note : Take care when removing the Heat Recovery Cell. Cleaning the Heat Exchanger Cell: Wash the outer cover and heat exchanger in warm water using a mild detergent (such as Milton Fluid) and dry thoroughly. Sentinel Kinetic MVHR Installation & Commissioning...
-
Page 33: Spares
Heat Recovery Cell 449525 449576 Motor assembly 449526 449526 Control PCB 449527 449527 Temperature sensor kit (consists of a T1 & T2 sensor) 449528 449577 Wired remote controller (complete with 15 metre control cable) 443283 443283 Sentinel Kinetic MVHR Installation & Commissioning... -
Page 34: Troubleshooting
When the temperature rises, e.g. the heating system is switched back on, the unit will restart and continue normal operation. Bottom line of display may be ( Fan Off, Fan Restarting). Sentinel Kinetic MVHR Installation & Commissioning... -
Page 35: Appendix: Options And Accessories
Connect the flying leads of the opto-coupler pcb into the LED terminals, + to + and - to - Connect the pair of leads from the BMS to the terminal block of the opto-coupler pcb. Polarity does not matter here. Sentinel Kinetic MVHR Installation & Commissioning... - Page 36 Guarantee Applicable only to products installed and used in the United Kingdom. For details of guarantee outside the United Kingdom contact your local supplier. Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...
